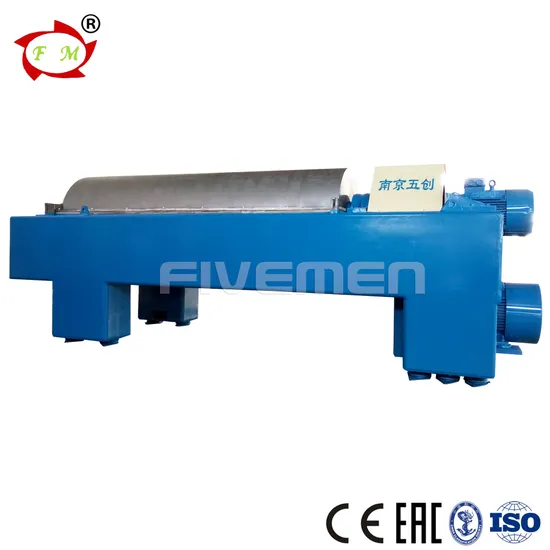

Horizontal Decanter Centrifuges for Sludge Separation

Product Description

Product Description ---------------------------------------------FIVEMEN
Horizontal spiral centrifuge is one of our company main products. According to the requirement of the material used, we design the horizontal spiral centrifuge with one motor, two motors driving. At the same time, we design two motors separately on both sides of the machine and motors on the same place of the machine. We also develop three column horizontal spiral centrifuge, used in the separation of coal tar oil, water, slag in the industry, in petrochemical in the separation of oil, water, slag.
Main motor drive at full speed rotating drum, material put into spiral continuously by feed tube, evenly distributed to the spiral discharging port. Under centrifugal force, solid content settles to the drum wall and is pushed out cone drum slag notch by the spiral pusher. Liquid is overflow along the spiral to the drum big end. It form big end set out liquid and small end set out solid.
Scope of Application -------------------------------------------FIVEMEN
The machine is widely used in the production of chemical , printing, metallurgical coal mine, oil production, metallurgy ,iron and steel, fabric ,food, drink, pharmacy starch, dyes and so on, and it can also solve industrial and municipal wastewater. By use it, solid can be dehydrated, liquid can be clarified, etc.
1. Solid phase dehydration: dehydration effect for processing materials of solid particles.
2. Particle size classification: used in the removal of material of large diameter solid particles.
3. Liquid clarification: used for removing solid particles in the suspension liquid are clarified.
Main characteristics---------------------------------------------FIVEMNE
1 Low noise, its vibration intensity is less than 4.5, and the running noise of the machine is less than 85dB (A).

2 High Speed up to 3600RPM & Variable Speed by frequency converter
3 The main body of the decanter centrifuge made from stainless stee: SS304/SS316/Titanium Alloy
4 The screw propeller made from stainless steel (SS304/SS316) protected by Tungsten carbide alloy or Ceramic
5 Solids discharge stainless steel protected by high-chromium iron
6 Solids Liquid separation system package available
7 Germany FAG/SKF brand bearings
8 Eletrical Components: SIEMENS/Schneider/ABB

9 All the seals of the machine are imported , adopting the Taiwan TTK brand
Technical parameter --------------------------------------------FIVEMEN

Type	Bowl diameter(mm)	Bowl length/ Bowl diameter	Bowl speed (r/min)	Main Power(Kw)
LWS355	355	3.3-4.5	4000	15-18.5
LWS420	420	4.1	3600	22
LWS500	500	4.2	3000	30
LWS530	500	4.2	3000	30
LWS580	580	4.1	2800	45
LWS620	620	4	2800	45
Note: In case of differences between the table and the user manual, the latter shall prevail.

Main parts-----------------------------------------------------------FIVEMEN
Packaging &Shipping-------------------------------------------------------------FIVEMEN
Related product &Certificate-------------------------------------------------FIVEMEN
If you want to get more information,pls contact us
