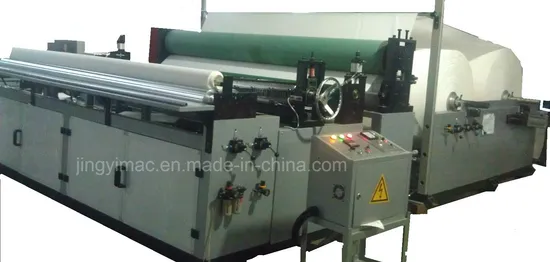

Semi Automatic Toilet Paper Rolls Rewinding and Perforating Machine
| US$9,000.00-25,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
JY-JTZ-1575A
Certification
CE, ISO 9001:2000, ISO 9001:2008, SGS
Condition
New
Control
Semi-Automatic
Embossing Type
Full-Embossing
Embossing Roller
Rubber Roller
Toilet Paper Type
with Core and Without Core
Function
Multi-Function
Jumbo Roll Diameter
1200mm
Jumbo Roll Inner Diameter
3 Inch
Perforation Distance
100-150mm
Finished Products Diameter
Dia 60-150mm
Unwind Stands
1-3 Stands
Weight
1400-3000kg
Production Speed
0-120 M/Min
Pneumatic System
3HP Air Compressor
Color
Optional
Embossing Unit
Single Embossing, Double Embossing
Transport Package
Wooden Cases
Specification
7800*3000*1720mm
Trademark
Jingyi
Origin
China
HS Code
84418090
Production Capacity
200 Sets Per Year
Product Description
Semi-automatic toilet paper rewinding and perforating machineEquipment Description: This is a semi automatic rewinding machine for toilet paper and kitchen towel, with the function of embossing, perforating, trim sealing and so on. Can also do kitchen towel with lamination unit. This machine is designed and made according to CE certificate standard, with safety safety-guard door, emergency stop and other safety devices, to protect operators. This equipment is durable and wearable with simple operation and maintaining. Full Automatic Toilet Paper Machine Main Technical Parameter:
| Max jumbo roll width | 1750mm (other size can be ordered) Can order from 1200mm to 2800mm |
| Max jumbo roll diameter | φ1100mm(for bigger size can be ordered) |
| Jumbo roll inner diameter | 3inches (76.2mm) |
| Finished products diameter | φ60-150mm |
| Perforated distance | 100-150mm (other size can be ordered) |
| Production speed | 0~120m/min |
| Machine power | 7.5~22kw (depends on machine model) |
| Roll core unit | With or without roll core |
| Jumbo roll stands | 1~3 stands (standard is 2) |
| Embossing unit | Single embossing, double embossing (steel to rubber roller, steel to paper roller, steel to steel roller) |
| Jumbo roll loading | With air cylinder loading |
| Parameter setting | Man-machine interface operation, Touch screen |
| Machine overall dimension | 3500*2500*1500~56000*3500*1500mm |
| Machine weight | 1500~4000KG (approximately) |
| Remote controlling | Depends on customer |
| Lamination unit | Can be ordered |
