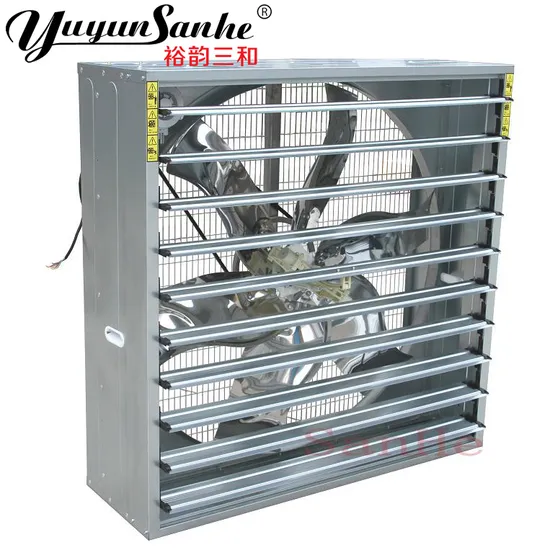

Centrifugal Push-Pull Type Ventilation Exhaust Fan Axial Flow Fans for Industrial Workshop Factory Cooling Poultry Farming Farm Livestock Husbandry Equipment
Basic Info.
Model NO.
DJF
Usage
Industrial, Greenhouse, Poultry House
Application
Chicken Layer Pig Duck Cow
Power Source
Electric
Heating and Ventilation Equipment Type
Air Duct
Certification
ISO9001:2008, CE
Condition
New
Warranty
2 Years
Open System
Centrifugal System(Nylon IP66)
Frame Material
Galvanized Sheet
Blade No.
6PCS
Belt
Japanese Mitsubishi B Type
Belt Pulley
High Strength Aluminum-Magnesium
Motor
High Quality Chinese Motor
Shutter
10PCS
Specifications
3 Sizes
Common Size
1380*1380*450mm
Speed
1 Speed
Power Supply
Electric
Name
Centrifugal Push-Pull Type Ventilation Exhaust Fan
Apply
Poultry Farm Greenhouse Industrial Cooling System
Place
Industrial Workshop Factory Cooling Air Cooler
Transport Package
Paper Carton
Specification
International Standard
Trademark
Yuyun Sanhe
Origin
Shandong, China
HS Code
8414809090
Production Capacity
300PCS/Day
Product Description
DJF Series Centrifugal Push-Pull Exhaust FanProduct Application:DJF Series Centrifugal Push-Pull Exhaust fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal
husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc. Technical Parameter:
| Model | Drive | Blades Diameter | Blades Rotational Speed | Motor Rotational Speed | Air Flow (m³/h) | Noise Decibels (db) | Input Power (W) | Voltage (V) | Frequency (HZ) | Outline Size (H*W*T) (mm) |
| DJF-750 (24in) | Direct | 960 | 960rpm | 960rpm | 10600 | ≤70 | 370 | 220 / 380/ Customized | 50 / 60 | 750*750*510 |
| DJF-1000 (36in) | Belt | 500 | 500rpm | 1400rpm | 21000 | ≤64 | 550 | 1000*1000*450 | ||
| DJF-1100 (40in) | Belt | 470 | 470rpm | 1400rpm | 31600 | ≤64 | 750 | 1100*1100*450 | ||
| DJF-1380 (50in) | Belt | 458 | 458rpm | 1400rpm | 44000 | ≤64 | 1100 | 1380*1380*450 |
Product Description:
| Frame with Plastic Handle 1. Frame: Hot Galvanized sheet with zinc thickness of 275g/sqm, high anti-corrosion performance 2. Plastic Handle, easy to carry , Convenient to load Advantage: YUYUN SANHE has the advanced Complete CNC machine and Laser Cutting machine. Auto punching and bending, the accuracy of the hole is 100%, easy to assemble. | |
| Belt Pulley 1. Material: High strength aluminum-magnesium alloy by die-casting. 2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability Advantage: Light weight, Low vibration ,attractive appearance. | |
| Bearing Imported double-row bearing with special waterproof design. Advantage: High strength, low noise, free maintenance and long service life. | |
| Centrifugal System 1.Material: High quality Nylon PA66 2.Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction. 3.Rivet: 304 stainless steel , wear-resisting, no rust. Advantage: It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume. | |
| Fan Blades 1. Material : 430 stainless steel, thickness 1.2mm 2. Diameter: 1270mm Advantage: Large air flow, no deformation, no fracture, no dust, attractive and durable. Note: Blade material also have galvanized sheet, aluminum alloy for option | |
| Belt Brand: Mitsuboshi belt (Japanese) Type: B type, B88 Advantage: B type belt is 3 times longer service life than A type belt, maintenance free. | |
| Shutters 1. Material: Hot Galvanized sheet with zinc thickness of 275g/sqm 2. Shutter Fixed Parts: High quality nylon. Advantage: High anti-corrosion performance, open flexibly, long service life, no deformation ,no rust, running stable. | |
| Motor Fixed Nuts and Washer 1. Hexagon Nuts 2. Stainless Steel Washer Advantage: More firmly, never loosen. Not rust, Easy to change Motor.. |
About our Company
Shandong Yuyun Sanhe Machinery Co.,Ltd is the biggest and the most professional manufacturer of ventilation equipment in
China,equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry.
