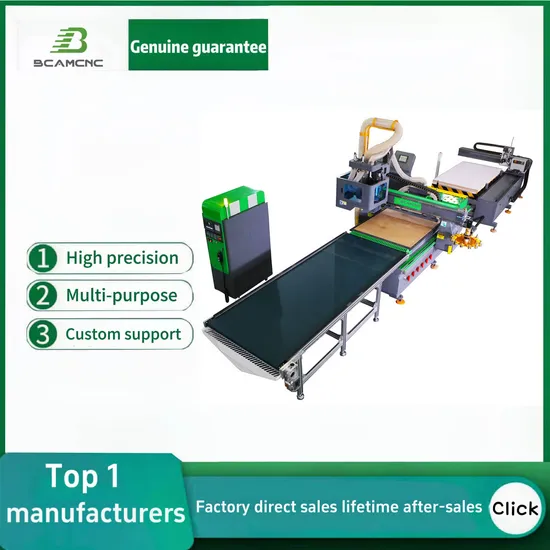

CNC Atc Nesting Router Machine 2000*3000mm for Wood Cabinet Door CNC Wood Router with Best Quality

Product Description

CNC Atc Nesting Router Machine 2000*3000mm for Wood Cabinet Door CNC Wood Router with Best Quality
Product Description
Automatic loading and unloading cnc router machine is equipped with a automatic loading and unloading system, which can improve work efficiency greatly.Which machine mainly used for making panel furniture, wooden cabinet, wood door, kitchen cabinet, office table,...

Technical Parameter For Automatic loading and unloading cnc router machine 1325
Model	BCM1325E
Working Area	1300*2500*200mm| 4*8ft
Optioanl Working Area	1500*3000*200mm| 5*10ft
	2000*3000*200mm| 6*10ft
	2000*4000*200mm| 6*13ft
Spindle Power	Italy /Chinese air cooling electro spindle
Travelling Speed	80m/min
Working Speed	70m/min
Loading and Unloading Speed	15m/min
Spindle Speed	24000r/min
Control System	Syntec control system
Motor and Driver	Japan servo motor and drivers
Working voltage	AC380V/3PH/50HZ(Optional: 220V)
Working table	Vacuum table+Vacuum pump
X/Y-axis transmission	Helical rack and p[inion transmission
Z axis transmission	TBI ball screw transmission
Software	Option:Alpacam,Carbinets Version , BCAMNESTTING,solidworks,etc.
Command language	G Code
Running Environment	Temperature: -20ºC~45ºC Relative Humidity: 5%~75%

Detailed Photos
This 3d wood carving cnc router is euqipped with a 9.6kw air cooling spindle form Italy, and a 9 pieces verttical drilling machine from China. So have a widely used in furniture prodution.

CNC Router machine adopts 12 position carousel tool changer, can change the tools within fiver second, whcih can improve work efficiency greatly. Machine will comes with ISO 30 Tool holders.
Motor and driver use Japan servo motor and driver, with high-performance and high precision. Servo motor runs smoothly, no vibration phenomenon even in the low speed. it has a strong ability of overload.

Machine controller adopts latest version Syntec 60W-E controller. The 60W-E control system is an upgrade from Syntec 6MA/6MB. It support 3 axis, 3 axis+drilling, 4 axis, 5 axis. You can set the toolpath by software(Vcarve, Alphacam, ArtCAM, Powermill,...), and copy it to U-disk, then insert to the USB interface of controller, the cutting toolpath will show on the control panel.

Active safety system
Machine will stop working immediately when person touch active safety system. Providing external emergency stop function for equipment users, can effectively protect the personal safety of the equipment users, meet the European safety CE standards
Helical rails transmission
The helical gear has a high degree of occlusion, a small force area of a single ruler, stable transmission, low noise and high stability.
Precision-Ground Bearings, Linear Guides and Helical Rack- and-Pinion for precision and longevity
Our Advantages
1. CNC Router machine adopt Italy spindle and drilling bank. It can cut, engrave, milling, drilling,...
2.This wood cnc router machine uses automatic tool change by machine, Its tool magazine is a carousel, placed on the gantry, so that router cnc machines' spindle only needs to move the length of the X-axis to complete the tool change, very suitable for big size cnc router machine, for example 2000*4000mm, 2000*5000mm, 2000*6000mm,...
3. The carousel auto tool changer system have 12 pieces ISO30 tool holders, Its driver system uses servo motor and driver, have memory function, can change tools faster, improve work efficiency.
4.The X , Y and Z axis of cnc engraving machine are all servo motors, there have Japan Shimp reducer system to keep machine have a good quality.
5. Italy original spindle from Italy, It enjoy international warranty.
6.Its extraction uses dust extraction hood Airtech Pro, It can achieve dust-free during working, can connect with lower power dust collect easy to make it clean(Protect health and protect the environment) Also it can pre-pressed the materials, so it can be cut the very small pieces plates.
7.European design makes the cnc router look beautiful and refined; 8mm thickness steel heavy duty make the machine stable and durable; Professional car-painting make machine have a longer life.

Application
Automatic loading cnc router machine mainly used for making panel wood furniture, suitable panel cabinet, wardroble, office furniture, custom furniture, wooden doors, solid wooden furniture, tables and charis, doors and windows, painet-free doors,composite doors, wood products,...

Company Profile
Company Profile
Jinan BCAMCNC Machinery Co., Ltd.
Established in 2002, specializing in CNC machinery with rich experience!The company has two factories: CNC Router and laser machine factories and plants.

BCAMCNC is comprehensive in the production, design, manufacturing, trade and service of CNC machine, and provide high quality and good efficienct CNC machines worldwide. With a strong staff team, "Brand BCAMCNC" gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China's forefront in development and expansion.

"BCAMCNC Products are widely used in the fields of advertising, furniture, jewelry pieces, gifts, packaging etc., materials of metal, wood, stone, leather etc."BCAMCNC"is wellknown not only in China, but also in Russia, Southeast Asia, Middle East, Africa, the Americas, India and other foreign countries.

BCAMCNC has already established branches in Shanghai , Dongguan, as well as foreign countries, such as Armenia , UK and Georgia. This year, BCAMCNC established long-term cooperative relationship with internationally renowned company, Shanghai Bcamtech CO.,LTD . In addition, we have established long-term cooperative relations in the field of laser machines with BCMTECH to develop CNC solution .
BCAMCNC always adhere to the principle --- First class reputation, first-class service and excellent products.
By Global High-Tech CNC Equipment Supplier---BCAMCNC
Related Products

After-sales Service
1. For whole cnc router machine, we provide 2-3 years warranty and lifetime after-sales service, we will provide the consumable
parts at an agency price when you need replacement.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3. Our engineer could support you technology to your country if necessary.
4.Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.
5. English manual and CD video for machine using and maintaining will send to you with the machine.


Packaging & Shipping
1. Standard plywood case, its compressive strength and bearing quality is better.
2. The board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3. When importing, the plywood case is with fumigation-free, the procedure is simple.
1.How is the packing?
1) packaged with Standard plywood case, its compressive strength and bearing quality is better. 2).the board area is bit, the soil structure is good, it is better in leakproofness and waterproof. 3).when importing, the plywood case is with fumigation-free, the procedure is simple.

2.How long is the delivery time?

For standard machine, it would be 7-10 working days; For non-standard and customized machines
,it would be 15-30 working days.
