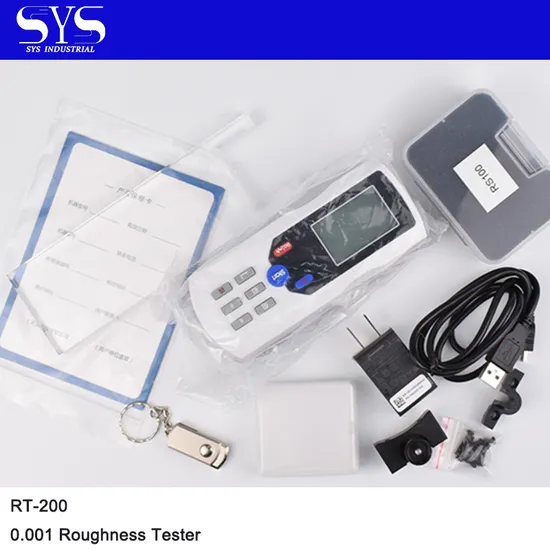

Roughness Tester Rt-200 Portable Type 0.001mm
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
RT-200
Test Types
Roughness
Brand
C
Detection Method
Probe
Minimum Measuring Range
0.75mn Type
Automatic Grade
Semi-Automatic
Repeatability
≤ ±1.5 %
Detection Principle
Static Volumetric Method
Type
Single-point
Application Area
Quality Control
Pipeline System
Integrated
X Axis
17.5mm
Range
160um
Standards
GB/ISO/JIS/DIN/ASME
Transport Package
Carton
Specification
200x100x100
Trademark
SYS
Origin
China
HS Code
9031809090
Production Capacity
1000PCS/Month
Product Description
| 20 Testing Parameters | Ra, Rz=Ry(JIS), Rq, Rt=Rmax, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx, RPc, Rk, Rpk, Rvk, Mr1, Mr2; |
| Measuring Range | Ra: 0.005~16.000μm Rz: 0.02~160.00μm |
| Sample Length | 0.25, 0.80, 2.50mm |
| Evaluation Length | (1~5)L |
| Maximum Drive Stroke | 17.5mm/0.7inch |
| Indication Accuracy | 0.001μm |
| Indication Error | ≤±10% |
| Variability | <6% |
| Data Storage | 100 groups |
| Power | Rechargeable Li-battery |
| Relative Humidity | <90% |
| Working Temperature | -20°C~40°C |
| Size | 158x63.5x46mm |
| Weight of Host | 0.3kg |
*Full metal shell design, sturdy, compact, portable, high reliability.
*Visual waveform display;
*Electromechanical integration design, small volume, light weight, easy to use;
*Using DSP chip to control and data processing, high speed, low power consumption;
*128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
*Intuitive and rich display information, can display all the parameters and graphics;
*Compatible with ISO, DIN, ANSI, JIS national standards;
*Residual quantity icon, prompting the user to charge;
*Continuous working time: more than 20 hours;
*Real-time clock settings and display, convenient data recording and storage;
*With automatic dormancy, automatic shutdown and power saving function;
*Multi-info Display: measurement information, menu prompt, fault and power switch information indicated.
*With PC software, can be connected to a computer and printer;
*Optional different sensor, measuring platform, mini printer, extension rod and other accessories;
*Support OEM Service, High price performance.
