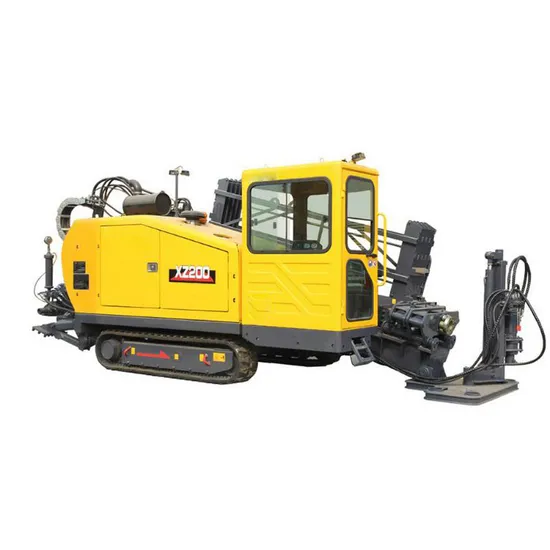

Popular Horizontal Drictional Drill Xz320A
| US$10.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XZ320A
Structure
Vertical Drilling Machine
Layout
Horizontal
Controlling Mode
Artificial
Number of Shaft
6
Hole Diameter
>200mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Backreaming Diameter
800 mm
Model
Xz320A
Dongfeng Cummins (170kw) Engine
Dongfeng Cummins (170kw) Engine
Rated Power
179/2200 Kw/Rpm
Transport Package
Nude Package
Specification
ISO, CE
Trademark
EON
Origin
Jiangsu, China (Mainland)
HS Code
8701200000
Production Capacity
150PCS/Month
Product Description
Popular XZ320A Horizontal Drictional Drill For SaleSpecifications
XZ320A Horizontal Drictional Drill
Dongfeng Cummins (170KW) engine
Backreaming diameter: 800 mm
XZ320A Horizontal Drictional Drill
Technical Features of XZ320A:
Push/pull type: It adopts motor-chain structure, which improves stability.
Rubber track: The rubber track has minor influence on the road, lawn, and scenic spot.
Rotatable control panel: It widens the field of view and reduces operator fatigue.
Reasonable system match: The rotation, push/ pull of power head, and the slurry pump are driven by different hydraulic pumps, which do not interfere with each other. And the hydraulic pumps, valves and pipelines are reasonably matched, featuring small energy loss.
High speed power head: The high speed power head ensures high work efficiency without compromising the rotary torque and the push/pull force during pipe laying operation.
Wide Application: The engine features turbocharged torque increment function, which can increase power instantaneously when encountering tough geological conditions, which ensures drilling power.
| Engine | Make | Dongfeng Cummins | |
| Model | 6CTA8.3-C240 | ||
| Rated power | kW/ rpm | 179/2200 | |
| Push/pull force | Type | 2-motor rack type | |
| Max. pull/push force | kN | 400/400 | |
| Power head rotary speed | m/min | 0~22 | |
| Slewing | Type | Motor drive gear transmission | |
| Max. torque of power head | N.m | 14000 | |
| Power head rotary speed | r/min | 0~100 | |
| Drill stem | Type | Standard API drill stem | |
| Diameter | mm | φ83 | |
| Length (single) | m | 3 | |
| Drill mounting | Type | Box type | |
| Adjustment angle | ° | 10~22 | |
| Travel drive | Type | Self-propelled steel track | |
| Travel speed | km/h | 2.8 | |
| Slurry pump | Type | Hydraulic drive | |
| Flow | L/min | 450 | |
| Dimension | mm | 7000x2170x2450 | |
| Weight | t | 12 | |
