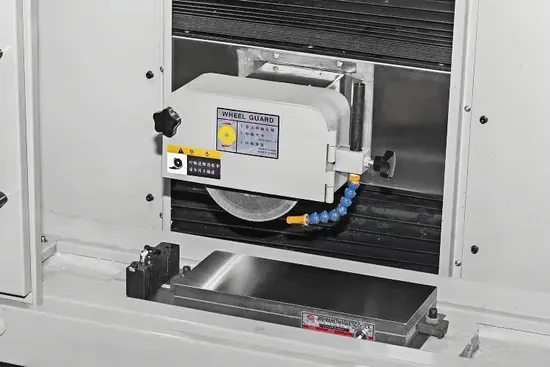

Three Axies 250CNC Advanced Machinery Surface Grinding Machine for Experts

Product Description

250/2550CNC Surface Grinding MachineThree Axies 250CNC Multifunction Grinding Machine Tool
We are committed to a policy of relentless enhancement across our entire product line, maintaining the flexibility to adjust specifications, mechanics, or designs at any time without prior notice or obligation.

	parameter	unit	CNC-250	CNC-2550
general picture	Table size (x*y)	mm	200×500	250*500
	X axis travel	mm	580	580
	Y axis travel	mm	230	280
	Max center of wheel to table	mm	380	380
	Maximum load	kg	200	200
Table	Table T cell specification	mm×N	14×1	14×1
	Table speed	m/min	0-25	0-25
Y axis	Minimum feed	mm	0.001	0.001
	Single feed		0.1~10	0.1~10
	Fast moving speed	mm/min	0~1200	0~1200
Z axis	Minimum feed	mm	0.001/0.01	0.001/0.01
	Fast moving speed	mm/min	0~800	0~800
grinding	grinding wheel size max	mm	Φ200×Φ31.75×19
	grinding wheel speed	R.P.M	0~3600	0~3600
motor	spindle motor	HXP	2×2	2×2
	the Z axis motor	W	750	750
	the Y axis motor	W	750	750
	the X axis motor	W	1500	1500
	cooling motor	W	90	90
Size	height of machine	mm	2000	2000
	floor space	mm	2000×1350	2000×1450
	weight(about)	kg	1450	1550

Cheng Yu Machinery Technology Co., Ltd., located in Dongguan City, Guangdong Province, inherits a rich legacy of 30 years of grinding machine manufacturing expertise from Taiwan, fortified by a dedicated team of technologically adept personnel. Witness the rapid evolution of CNC machine tools, where trends lean towards high-speed, high-precision, composite structures, intelligence, open architecture, parallel drive, networking, and eco-friendly design, charting the future direction for CNC advancements. Dongguan Chengyu Machinery Technology Co., Ltd. excels in the crafting and processing of machine tools and accessories, rooted in the 'technology, innovation, reliable' ethos. Adopting a 'meticulous' quality policy, we promise to 'deliver quality products and serve customers.' Our journey begins with understanding customer processes, technological needs, production types, and quality requirements. Driving design and production technology as our backbone, we enhance product applicability, expand the CNC industry space, aiming for high automation, precision, and quality, supported by an exhaustive quality management system, top-tier equipment, and unparalleled technology. In line with market demands, Chengyu Machinery shines in the art of crafting high-precision CNC surface grinding machines, CNC forming machines, four-axis punch grinders, vertical slider grinders, and gantry rail grinders. We also specialize in the innovation of industrial robots, automated production lines, and holistic applications. Below is a succinct introduction of our CNC grinding machine series: I. HS series 618 / 250 / 3060 / 4080 / 40100 (available in servo and hydraulic types) Processing capacity: Surface grinding, grooving with finesse and precision Innovative Patented hydraulic control system (hydraulic type) Functionality: Equipped with advanced grinding programs for flat surface and groove cutting. Feed mode: Selectable front, back, left, or right mode, with memory for each grinding program's feed mode. Grinding wheel overload protection with automatic shutdown. II. (offering both servo and hydraulic types) Processing capabilities: Comprehensive surface grinding, grooving, and combined scheduling. Our patented hydraulic control system (hydraulic type) sets new standards in precision. Functionality: Comes with a range of grinding programs for surface, groove, sole, side, and unequal displacement grinding. Grinding wheel dressing: Automatic bottom plane dressing, with set parameters for rough and fine grinding, auto-dressing, and compensation during grinding cycles. Feed mode: Front, back, left, or right selectable, with memory retention for each grinding program's feed mode. Equidistant grooving and versatile non-equidistant unequal applications. 3. Four-axis CNC grinding machines available in both horizontal and vertical configurations. Processing types offer arbitrary equal division and advanced skipping tooth processing. Waist circle precision with input for AB size. Triangle fillet with inscribed circle size B and fillet size R inputs for seamless accuracy. Quadrilateral fillet precision with inputs for side lengths A and B and fillet size R. Eccentric circle processing with inputs for eccentricity, along with starting and ending diameters. Circle: Please enter the starting and ending diameters for a seamless and precise circular grinding experience. Arc: Kindly input the arc size and rotation angle to achieve an impeccable and sophisticated grinding arc. Step Difference & Rotation Profile: Tailor your grinding process with step differences and rotation profiles to meet your diverse machining needs. Processing Schedule: Save your processing schedule as a convenient file for effortless future access and enhanced operational efficiency.
