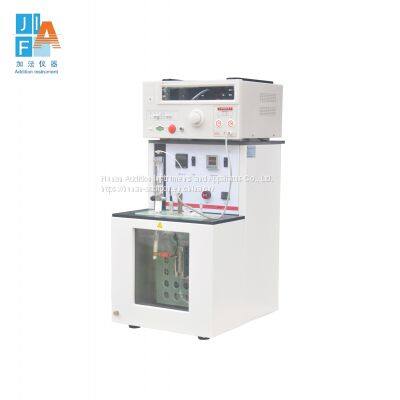

Automatic Insulating Oil in Electric Field and Ionization of Inspiratory Tester
ASTM D2300
Product Model: JF11142Z
Introduction
This instrument is mainly used to detect the tendency of insulating oil to release or absorb gas under the action of an electric field (or ionization) strong enough to cause discharge at the junction of oil and gas. Suitable for the determination of cable oils, capacitor oils and transformer oils (mineral or synthetic).
Technical Parameters
1. Applicable standards: GB/T11142, SH/T0810, IEC60628, GB/T10065A method
2. Heating range: normal temperature~80℃ (up to 150℃)
3. Duration: 18h (maximum 99h)
4. Voltage: 10KV
5. Voltage display: digital display
6. Heating method: electric heating tube heating
7. Gas flow: 3L/h
8. Temperature control method: PID temperature controller
9. Working power supply: AC220V 50HZ
10. Power of the whole machine: 2.2KW
11. Instrument size: 380*450*800mm
12. Net weight: 42KG
Features
1. High-power step-up transformer, which can step up to 10KV, digital display voltage.
2. Digital display working time.
3. High-precision gas chamber glass tube with polished surface.
4. Digital display PID temperature controller, PT100 temperature sensor, high precision.
5. The gas flow can be adjusted.
6. The hollow electrode conforms to ASTM D2300 standard;
7. The outer electrode is precision machined from tool steel.
8. The heating bath adopts a transparent glass cylinder, which is convenient for observation.
9. Equipped with a special regulated power supply to ensure the stability of the electrode boosting process;
10. The instrument has the function of leakage protection. If the leakage of the instrument is found, the instrument will automatically turn off the power to avoid harming the staff;
