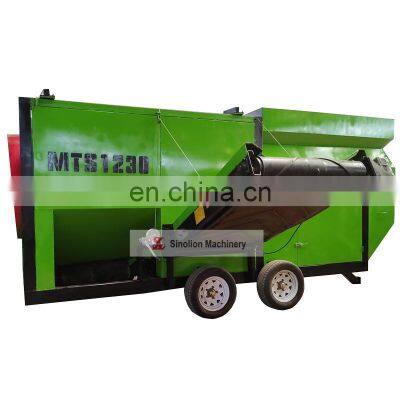

Mining Sand/Gravel Rotary Drum Filter Separator Rotary Drum Screen Machine for Remove Impurities

Product Description

Product Description
Product DescriptionMining Sand/Gravel Rotary Drum Filter Separator Rotary Drum Screen Machine for Remove ImpuritiesTrommel Drum Screen is applied to material classficiation and ore washing operation.The trommel screen is a special screening equipment developed by our company for power plants, coking plants, building materials, metallurgy, chemical industry, mining and other industries. It overcomes the problem of screen blocking of various vibrating screens when screening wet materials. Increased production and reliability of the screening system.Working principle of Trommel Drum Screen for High Capacity Screening:The Trommel Drum Screen for High Capacity Screening is a cylindrical cylinder with a perforated surface. During operation, the screen cylinder rotates slowly around the shaft under the driving of the transmission device; the solid waste is fed by one end of the screen cylinder, and is carried by the rotating cylinder body. When reaching a certain height, it should be dropped by gravity, so that the lifting movement is continuously performed. The fine material having a mesh size smaller than that of the sieve is screened, and the product on the sieve is gradually moved to the other end of the sieve to be discharged. In order to advance the waste in the direction of the axis in the barrel, the axis of the screen cylinder is generally installed at an oblique angle.The advantage of Trommel Drum Screen for High Capacity Screening1. Using special screen mesh, the sieve hole is not easy to block, high screening effciency and long service life.2. Small installation slope and stable operation.3. Simple structure and easy maintenance.4. High reliable, durable and less one-time invesrment.5. Screening cylinder can be closed, easy to close and collect dust and less polution.Main techinical parameter of Trommel Drum Screen for High Capacity ScreeningModelCapicity(t/h)Power(kw)Diameter(mm)Length(mm)Discharge Size(mm)Input Size(mm)Dimension(L*W*H)(mm)GTS1015503.0100015000-100≤3002600*1400*1700GTS10201004.0100020000-100≤3003390*1400*2140GTS12251605.5120025000-100≤3004146*1600*2680GTS15302507.5150030000-100≤3004460*1900*2820GTS154535011150045000-100≤3005960*1900*3080GTS184845015180048000-100≤3006500*2350*4000GTS205560022200055000-100≤3007500*2550*4800GTS226580030220065000-100≤3008500*2750*5000Details ImagesApplicable material:1. The stone yard is used for the classification of large and small stones and the separation of soil and stone powder.2. Sand and stone separation for sand and gravel.3. The coal industry is used for the separation of lump coal and coal powder and for coal washing (part of coal washing machinery).4. The chemical industry and the mineral processing industry are used for classifying large and small blocks and separating powdery substances.Inlet and outlet:The qualified material (the product under the screen) is discharged through the discharge port at the bottom of the rear end of the drum, and the unqualified material (the product on the screen) is discharged through the discharge port at the tail of the drum.Packing & DeliveryOur CompanyZhengzhou Sinolion Machinery Co., Ltd. is a high-tech company which professional manufacturing the production of briquette equipment, building material equipment, and mining machinery.After 30 years of development, Sinolion is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise. SINOLION has modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with coal research institutions and other research departments, SINOLION has continuously improved product values and performance. Now, 10,000-300,000 tons briquette production lines are renowned in domestic and foreign markets, and SINOLION products have been exported to Indonesia, Kazakhstan, Vietnam, North Korea, Egypt and other countries and regions. It is ideal equipment for briquetting mine power in the world market.Sinolion provides space planning and design, equipment installation and commissioning support. Our company persists in the philosophy of ''quality for survival, reputation and development'', and Sinolion strives to build a world well known brand to satisfy customers in order to let them rest assured with comfort. Sinolion Company is willing to take full use of the new technology, dedicated to providing superior products with reliable quality, favorable prices and perfect service for users who need us to design, manufacture and install coal production lines.We will continue to adhere to "Quality is our eternal pursuit and pride", create new glories with customers! Welcome to SINOLION for visiting and seeking common development.Our Service1. Pre-sale service: 1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory). 2) Welcome to visit us at any time, we will pick you up.2. Sale service: 1) Keep clients updated when our company gets advance payment.2) Confirm production details with clients.3) Take photos and send all pictures to customers during production.4) Inspection and testing the product before delivery; 5) Clients are welcome to inspect the equipment when the equipment are ready to delivery. 6) logistics service if needed.3. After Sale service:1) Provide foundation drawing to the clients for installation.2) Besides, our engineers are available to help with installation and workers training.3) Repairing and maintenance if any problem during the warranty.4) Spare parts and wearing parts will be offered with production cost in 10 years.FAQ1. What's the delivery time after I pay the deposit ? In your first inquiry, please let us know your information and requirements, we will give you guidance for choosing the right machine.2. Is mineral samples analysis available?Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.3. What's the delivery time after I pay the deposit?We will clear delivery time in slaes contract, Single movable drum sieve often deliveried within 10-15 working days after receipt of the pre-payment. Complete production line will delivery within 25-40 working days after receipt of the pre-payment.4. How long of your machine quality guarantee terms ?Quality guarantee time is one year(wearing parts excluded).
