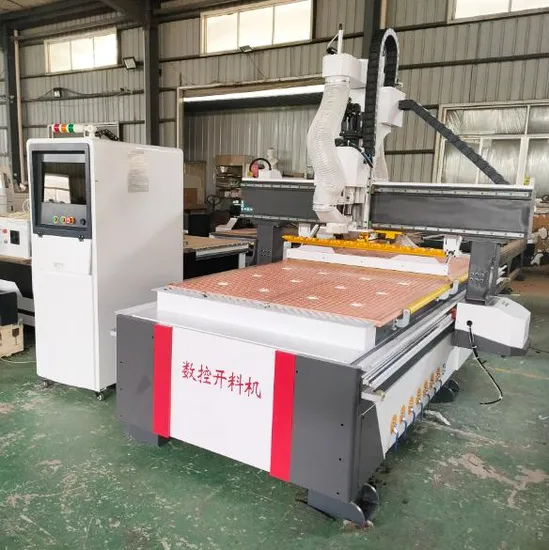

Affordable 4*8FT CNC Router Woodworking Machine 1325 Atc CNC Wood Router Carving for MDF Cutting Wooden Furniture Door Making

Product Description

Feather
1)Function: 6kw air cooled spindle, fast tool change speed, suitable for efficient cutting, slotting, milling and other processing of panel furniture;
2) Structure: Heavy-duty body welded by high-strength thick-walled steel pipes, annealing aging and sandblasting treatment, stable structure and guaranteed accuracy;
3) Accuracy: Excellent accessories and sophisticated detection devices enable the product to obtain perfect positioning and running accuracy;
4)High speed: high-power servo motor and precision screw link design, high torque, high kinetic energy, stable operation and high efficiency;
5) Simple operation: compared with the traditional cutting method, only one person is required to operate, and even one person can operate multiple devices with simple operation and high efficiency. The design of the machine control interface is user-friendly, and the operator can start work after simple training.
Specification

Model	1325ATC
XY working area	1300*2500mm(working area can be customized according to your needs)
Z axis	200mm-300mm(option)
Max Cutting Speed	70m/min
Transmission system	XY axis: Germany Herion 1.5MRack and Pinion Z: Germany TBI Ball Screw
Guide rail	Taiwan Hiwin 25mm Linear rail
Working Table	T slot Vacuum table 6 And T clamp combination
Spindle	9.0kw ATC air cooling spindle
Control system	Taiwan control system
Motor	1.5kw servo motor
Air pump	7.5KW
Dust collector	4KW,double bags
Inverter	HPMANT 11KW
Spindle Speed	0-24000rpm/min
Max. Rapid Travel Rate	45000mm/min
Max. Working Speed	30000mm/min
Command	G-code

Detailed Photos

Equipped with 10-12 knife straight line knife library, can quickly and freely change the tool. Replace tools within 5 seconds.
The surface of the vacuum table is multi-zoned, which allows the operator to easily switch from full-plate processing to smaller part processing (requiring smaller segmented areas). The area can be easily closed by the control valve on the front of the machine. The gasket can also be wired to adapt to various material sizes and styles. It also includes a heavy-duty aluminum T-slot profile at multiple locations on the surface of the workbench. This T-slot can accommodate square M6 T-nuts.
The CNC router uses precision helical gear racks on the X and Y axis. The rack is installed upside down to help prevent dust and debris from accumulating on the drive system, thereby ensuring smooth movement and long-term reliability. The precision gearbox is directly connected to the stepper motor and pinion gear. This eliminates belt stretching errors and ensures high-speed processing while the system accurately positions the spindle.
Vacuum worktable in European standard are used in this ATC router table CNC for carpentry, positioning cylinder can be added which make material positioning easily and fast.
The High quality CNC Router machine comes standard with 3 kw high frequency spindle. This precision spindle requires no maintenance. Fully programmable speeds from 6000 to 24000 RPM, more powerful and less noise.

The machine comes the whole lubrication system to make sure all the transmission system will be well lubricated, which will make
the machine service life longer.


Applications
ATC cnc woodworking machine is a specially designed for user who has high standard, high demand, high degree of automation.toward the CNC machine.Which is suitable for all kinds of solid wood,MDF,composite board, hard plastic, artificial marble, acrylic and other materials batch processing.
