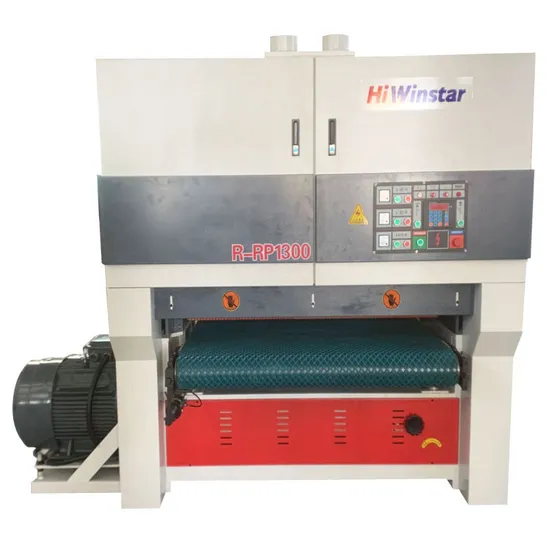

R-RP1300 Horizontal Woodworking Machinery Solid Surface Wide Belt Sanding Machine Drum Sander Machine

Product Description

R-RP1300 horizontal woodworking machinery solid surface wide belt sanding machine drum sander machine
Product Description

model	R-RP1300
width of sanding panel	40-1300mm
thickness sanded panel	3-120mm
speed of abrasive belt on 1st unit	18m/s
speed of abrasive belt on 2nd unit	18m/s
speed of abrasive belt on 3rd unit	14m/s
speed of conveyor belt	6-30m/s
size of conveyor belt	1300*2500mm
total motor power	93.62kw
1st unit motor	37kw
2nd unit motor	30kw
3rd unit motor	22kw
conveyor belt motor	4kw
lifting motor power	0.25kw
brush motor power	0.37kw
working pressure	0.55mpa
weight	4500kg
overall size	2600*2575*2130mm
volume of sucked air	13000m3
consumption of compressor air	0.3m3

Features
1,Adjust system can be adjusted according to the needs of various types of sheet metal processing to make the sanding effect good.
2,The conveyor speed can be adjusted through the control panel, and the intelligent temperature controller can be precisely controlled and used smoothly.
3,The structure with two rolls and one pad,the front sand frame is steel roll of adjustable,and the back sand frame is composed constructure,it is used for polishing.
4,Reducer motor can adjust feeding speed according to need, more convenient to use.
Detailed Pictures
Application
Mainly used for solid wood board, solid wood floor, solid wood panel, bamboo board, veneer, veneer, veneer, thin board and other surface brushing, drawing, natural wood grain brushing, removing wood wool, etc., as well as synthetic materials such as wood-plastic board Such as pulling, pulling and so on.
Packaging & Shipping
Company Information
FAQ
1,Can you offer good price with fine quality also?
Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.
we are not sure if it is lowest or highest,But we will be offering reasonble.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines
2,We will be protetcted if we are paying for orders?
Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years ****** trade assurance you could rely on,you will be protected very well.
3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine.
We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours .
4,What's your production time? we want faster shipping time also.
mostly machine we have in stock, some machine we produce need about 7-10days. make fast shipment always. shipping time depends on shipping company.
