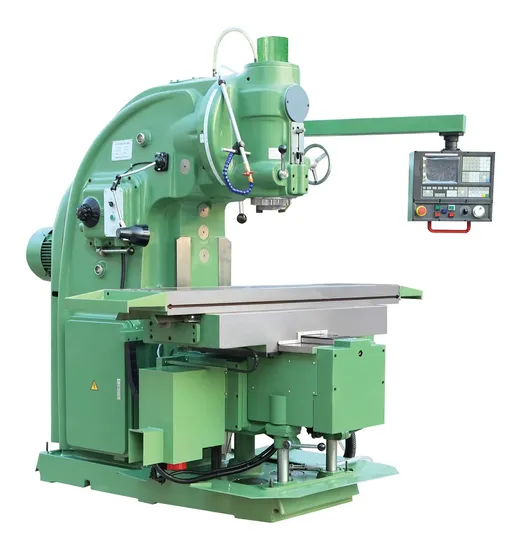

Hot Selling Xk5040 CNC Vertical Knee-Type Milling Machine with Table Size 1700*400
| US$13,300.00-21,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
xk5040
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Model No.
Xk5032 Xk5040
Table Size
1700X400mm
Table Travel(X.Y.Z)
920X330X450mm
Max. Load Working Table
500kgs
Feed Speed X.Y(Z)
6-3200(3-1600)mm/Min
Rapid Feed Speed(X.Y.Z)
6000/6000/3000mm/Min
Transport Package
Export Wooden CTN
Specification
2400*2200*2400mm
Trademark
JYME
Origin
China
HS Code
8458190000
Production Capacity
1000
Product Description
Product Application
The milling machine is a kind of universal light duty metal cutting machine,Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc.. Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Technical specifications:
| ITEM | UNIT | XK5040 | XK5032 |
| table size | mm | 400*1700 | 320*1600 |
| T-slots (N/W/D) | | 3/18/90 | 3/18/70 |
| X travel (manual/auto) | mm | 1000 | 900 |
| Y travel (manual/auto) | mm | 350 | 310 |
| Z travel (manual/auto) | mm | 385 | 350 |
| table feed speed-X | mm/min | 6-3200 | |
| table feed speed-Y | mm/min | 6-3200 | |
| table feed speed-Z | mm/min | 3-1600 | |
| distance from spindle nose to table surface | mm | 80-465 | 35-385 |
| spindle taper | | ISO50 | |
| spindle speed | rpm | 30-1500 | |
| spindle speed steps | | 18 steps | |
| spindle stroke | mm | 85 | 70 |
| main motor power | kw | 11 | 7.5 |
| torque of servo motor (X/Y/Z) | N.m | 15/15/23 | 10/10/18 |
| overall size | mm | 2760*2160*2250 | 2040*1800*1910 |
| N.W. | kg | 4200 | 2900 |
