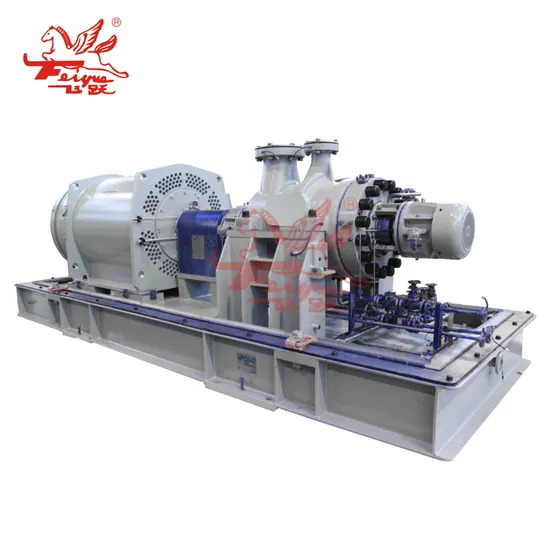

Bb5 (FHB) High-Pressure Centrifugal Pump for Oil and Gas Industry

Product Description

API 610 Series Bb5 (FHB) Multistage High-Temperature High-Pressure Centrifugal Pump for Oil and Gas Chemical Industry
Product DescriptionConform to design standard of APl610
Flow range: 50~800m3/h
Lift range: ~2600m
Application temperature: -80~+450ºC
Application field: This series of pump is mainly used in industries of oil refinery, petrochemical engineering, low temperature engineering, coal chemical industry, power plant, environmental protection engineering,
Wastewater treatment, cement plant etc.Suitable for transporting all kinds of neutral or corrosive normal-temperature or high-temperature medium such as clean, particle free chemical medium, oil, wastewater.
Main manufacture materials and applicable medium.
This series of pump is vertical, horizontal single suction multi-stage sectional type centrifugal pump and has many national patents. It has advantages of high efficiency, wide performance range, safe and stable operation, low noise, long service life and convenient installation and repairing etc.
It can transport particle contained(particle diameter less than 1/4 of impeller passageway) medium and hot water, oily medium, corrosive or abradant contained medium by changing pump materials(or transflux parts materials), seal type and adding cooling system.
FDSR series vertical, horizontal multi-stage centrifugal pump working temperature is -60 400ºC Material is optional including HT200, QT600, JM3, 28# alloy, 304, 304L, 316L, 317L, 904L, CD4, Ha's C, Ha's B etc.
Our company passed 1S09001:2008 quality system cert cate. We have strict and standard control system in product design, manufacturing and service. Product quality is fully guaranteed.Chart

1	Thrust bearing parts	2	Drive side sliding bearing parts	3	Beaing support	4	Rotor parts	5	Mechanical seal parts	6	Throttling set I
7	Throttling set II	8	Pump beast	9	Secondary guide plate	10	Mouth ring	11	High pressure in the middle	12	Guide vane
13	Shell	14	Level at the end of guide vane	15	Transition pipe	16	Throttling set Ill	17	Low pressure in the middle	18	Head in the middle
19	Head guide vane	20	Throttling set IV	21	Clamp	22	Drive side sliding bearing parts

Product ParametersPerformance parameters of the table
