Diesel Concrete Mixer with Delivery Pump

Product Description

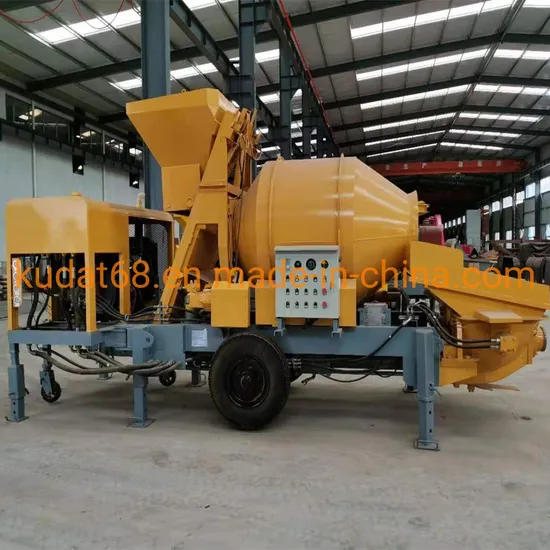

Mobile Concrete Mixing Pump HBTS40-13-78R
Specifications:

Item	Unit	HBTS40-13-78R
Max Theoretical Concrete Output	m³/h	40
Max Concrete outlet Pressure	Mpa	13
Concrete slump	mm	100-230
Aggregate Size	mm	≤40
Engine Power	kw	Diesel motor 78
Speed	r/min	2300
Main oil pump	KAWASAKI
Hydraulic valve	BOLSEEN
Hydraulic hose	MANULI
Main electric element	SCHNEIDER
PLC Control computer	MITSUBISHI
Concrete Cylinder Diameter	mm	180/1100
Oil capacity	L	300
Hopper Capacity	L	400
Filling Height	mm	1400
Water supply	hydraulic power	automatically
Max Theoretical Conveying Distance (Horizontal Distance/vertical Height)	m	400/120
Max. Theoretical Feeding capacity	L	600
Max. Theoretical Discharge capacity	L	400
Pipe Cleaning Mode		Washing
Dimension(transport)	mm	5500×1650×2350
Total Weight	kg	5350

Description
CPM15 Concrete Pump and Mixer mixing conveyer has agitation and the transportation
functions. The agitation system adopts self-fall type bi-pyramid to reverse discharging
mechanism; The hydraulic system uses double cylinder piston type, the electrical and
hydraulic control, the S valve assignment form.
Main parts:
1.The main engine is composed by the hydraulic system, the electric system, the pump
system, the mixing mechanism, the distributing valve, the running gear, the cowling, the
rack, the transfer pipeline and so on.
2.The hydraulic system is composed by the main oil route system, the distributing valve oil system, the mixing oil system.
3.Main main oil route system including oil filter, ram pump, Electromagnetism distributing
valve, electromagnetism overflow valve, check valve, main oil cylinder as well as pipeline
appendix.
4.The distributing valve oil system including oil filter, Electromagnetism distributing valve,
oil cylinder as well as pipeline appendix and so on.
5.The electric system including the electromotor, AC contact device, air switch, push-button switch.
Advantages
This equipment has the system to be stable, the control system is simple, the control is
convenient, few maintenance, motion convenience and so on
Features
1. It may use to the high-rise construction or the remote transfer mortar, the foaming
concretes as well as the small aggregate concretes, facilitates the construction work. It
has the transportation, the efficiency high, to disturb slightly mutually continuously with
other equipment, it may transport the mortar to the other equipment out of reach place.
Mortar flows in the pipeline, it will not cause merits environmental pollution and so on.
2. It through increased the compressed air injection gear to constitute a complete wet
concretes jet aircraft, it might use in the mine pit and the understructure work supports
and protections lining work. The construction wall surface spray coating, the construction
structure reinforcement, the ground side slope stability, projects tunnel excavation and so on. It has the work efficiency to be high, the concretes quality is good, the dust loading is
low, the snapping back rate is low, the failure rate is low, and the building cost of projects
is low.
1. Agitation system
(1)It uses self-falls bi-pyramid and reverse discharge mechanism, the production
efficiency is high, the agitation quality is good;
(2)Stirs drum uses the gear transmission, the transmission efficiency is high, the failure
rate is low, and maintains is simply.
2. Hydraulic system
(1)The operating valve uses the advanced S valve, the leak-proof quality is good,
structure is simple and reliable. The eyeglasses board and the wear resisting link
use the hard alloy, the resistance to wear are good, the life is long, the replacement is
convenient, the wear-resisting link uses may the automatic compensation
gap organization;
(2)The control mode uses electricity - hydraulic control, the operation is simple, the
revolution is steady, the noise is low; It has the consummation electricity - fluid over-load protection and the measuring appliance display system; it has the reverse-pump operation function; It is safely reliable, easy to fix the jamming breakdown; Services
conveniently;
(3)Contact device and push-button switch electric appliance modules and so on,
the protection rank may achieve IP65, the control wiring is simple, operation reliable;
(4)It is suitability to many kinds of mortar, like spraying mortar, wall surface mortar, ground mortar, small aggregate concretes and so on.
