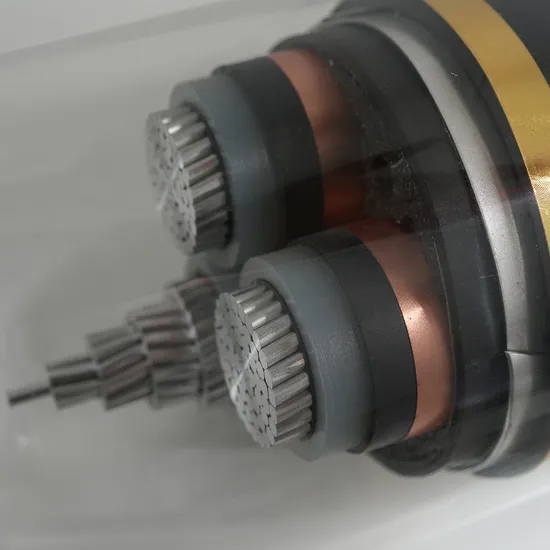

Medium Voltage Single Core Drum Cables 11kv 35kv 240mm XLPE Multicore Copper Armoured Power Cable

Product Description

Product Description
Product Parameters
1-35KV multiplex cable quadruplex triplex secondary service drop wire

Item	Specification
Application	Used primarily of overhead and distribution lines
Rated Voltage	600V/ 1000V/ 10000V/ 35000V
Text Voltage	AC 3000V/ 1Min
Number of Core	Single core
Maximum Conductor Operating Temperature	LDPE/ HDPE Insulation conductor 75ºC XLPE Insulation conductor 90ºC
Color of Insulation	Black and customer designated
Manufactured Standards	ANSI/ ICEA S-70-547 Weather-resistance polyethylene insulated overhead conductor ASTM B-230 Aluminum wire, 1350-H19 for Electrical Purposes ASTM B-231 Aluminum conductors, concentric lay-stranded ASTM B-232 Aluminum conductor, concentric-lay-stranded, coated steel-reinforced(ACSR) ASTM B-399 Concentric-lay-stranded 6201-T81 aluminum alloy conductor ASTM B-498 Zinc-Coated steel core wire for ACSR
Conductor Type	Aluminum 1350-H19, 6201-T81 or ACSR conductor We can produce according to our client's need and provide technical date
Packing	Cable ca be supplied in any length required

Item	Specification
Application	Used for secondary distribution and underground service at 600V or less, either direct burial or in ducts.
Rated Voltage	600V or less
Test Voltage	AC 3000V/ Min
Number of Core	1, 2, 3, 4 cores
Maximum Conductor Operating Temperature	LDPE/ HDPE Insulation conductor 75ºC XLPE Insulation conductor 90ºC
Color of Insulation	Black and customer designated
Core's identification	The phase of two cores or more cable should be distinguished by enduring printing ink number or ridge or colour strip
Manufactured Standards	ANSI/ ICEA S-105-692 single layer thermoset insulated utility underground distribution cables ASTM B-230 Aluminum wire, 1350-H19 for Electrical Purposes ASTM B-231 Aluminum conductors, concentric lay-stranded ASTM B-400 Compact round stranded aluminum 1350 conductors ASTM B-786 19 wire combination unilay-stranded aluminum 1350 conductor ASTM B-800 8000 series aluminum alloy annealed and intermediate tempers ASTM B-801-8000 series aluminum alloy wire, compacted round, compressed and concentric-lay class A or class B stranded conductor ASTM B-836 Compacted round stranded aluminum conductor using single input wire constructions ASTM B-901 Compressed round stranded aluminum conductor using single input wire constructions
Conductor Type	Aluminum 1350-H19, 6201-T81 or ACSR conductor We can produce according to our client's need and provide technical date
Packing	Cable can be supplied in any length required

CHARACTERISTICS
Rated voltage: 3.6 / 6kV, 8.7 / 15 kV, 26 / 35kV
Maximum Conductor Temperature: under normal (90ºC), emergency (130ºC) or short circuit no more than 5 s (250ºC) conditions.
Min. Ambient Temp. 0ºC, after installation and only when cable is in a fixed position
Min. Bending Radius: 15 x cable O.D for single core
12 x cable O.D for multi core

CONSTRUCTION
1) Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
2) Conductor Screen: Semi-conductor
3) Insulation: XLPE (cross-linked polyethylene) rated at 90OC
4) Insulation Screen: Semi-conductor
5) Screen: Copper tape
6) Inner covering : PVC
7) Armoring: Stainless steel tape - 1 core, Galvanized steel tape - 3 cores
8) Sheath: PVC or FR-PVC type ST2 to IEC 60502, black

STANDARDS
International: IEC 60502, IEC 60228
China: GB/T 12706
Other standards such as BS, DIN and ICEA upon request
Applicable Scenarios
The cable are mainly used for power distribution in power stations, industrial installation. Apply to shafts, water and soil, able to bear the larger positive pressure.
Company Profile
HONGTAI CABLE, founded in 1988, is a professional electrical wire and cable manufacturer.
A leading brand cable manufacturing and top supplier in China.
Located in Ningjin County, Hebei Province, China.
With a registered capital of CNY302,000,000 (approx USD43,114,200), factory area 86,000 sqm.
Engaged in the production of XLPE Insulated Power Cable, Overhead/ Aerial Conductor and Cable, PVC Insulated Building Wire, Fireproof Mineral Insulated Cable, Photovoltaic Cable, Fire-resistant LSZH/ LSFH Cable, Low Voltage/ Medium Voltage Power Cable, Multicore Control Cable and Shielded Instrument Cable.
Capable of supplying customized cable by GB, IEC, BS, ICEA, ASTM, DIN, VED and JIS standards.
Certifications
Packaging & Shipping
For small qty spools, rolls, we will pack with epe foam and cartons.
For more qty spools, rolls, we will pack with pallet or wooden box.
If you have your own forwarder or warehouse in China, we can ship to your address.
If you don't have forwarder or warehouse in China, we will arrange our forwarder for you with reasonable cost and excellent service.
Just let us know your address, we will arrange all details for you.
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.
Welcome to visit us. We'll pick you up in SHIJIAZHUANG.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
