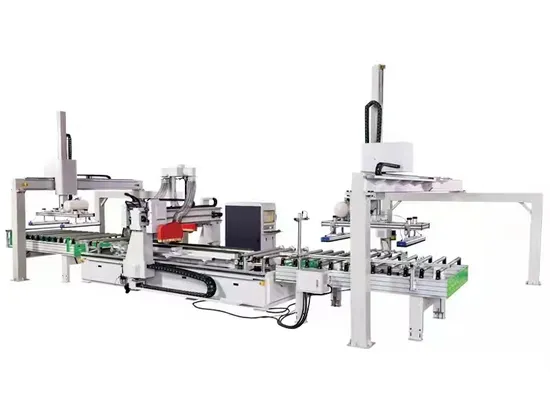

3D Woodworking Cutting and Drilling Automatic Gantry Loading & Unloading Four-Sided Saw
| US$27,500.00-37,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DLM-4FS
Condition
New
Certification
CE
CNC or Not
CNC
Voltage
380V
Door Plate Processing Length
1700mm-2700mm
Door Plate Processing Width
600mm-1100mm
Transmission
Y: Rack and Pinion , X/Z : Ball SCR
Table Design
Movable Vacuum Adsorption Table
Main Saw Power
5.5kw
Secondary Saw Power
1.1kw
Door Processing Thickness
30-50mm
Working Voltage
AC380/3pH/50Hz
Transport Package
Plywood Box
Trademark
DLM
Origin
China
HS Code
84609090
Production Capacity
500 Set/Year
Product Description
3D Woodworking Automatic Loading & Unloading Four-sided SawSpecification
| Model | CNC-4FS |
| Door plate processing length | 1700mm-2700mm |
| Door plate processing width | 600mm-1100mm |
| Transmission | Y: rack and pinion , X/Z : ball screw |
| Table design | Movable vacuum adsorption table |
| Main saw power | 5.5KW |
| Secondary saw power | 1.1KW |
| Door processing thickness | 30-50mm |
| Working voltage | AC380/3PH/50HZ |
Features: Two automatic transmission belts, frequency conversion control can control the transmission direction, before and out can be set. This model is convenient docking semi-automatic automatic connection, can also be used standalone. One button to start the precise saw cut, precise clamp positioning on all sides. Parameterize the door width, door height input, movable table one-button door width positioning. Automatic collection of residual materials to avoid manual picking up of residual materials causing dangerous damage
Details
| Taiwan LNC MW2200 control system, stable system, fast reaction speed, friendly human-machine dialogue interface, the operation is more convenient, handy. |
| Central lubrication system, 3 automatic oil pumps, timing and quantitative automatic oil, ensure the main engine and gantry guide slide lubrication in place, improve the service life of the transmission system. |
| XYZ transmission motor with 1.5KW servo motor No need to return to the origin, direct work, reduce the waiting time. |
| Taiwan Guide rail (35MM), the widest application in the industry, the machine operation is more stable, the saw blade rotation without vibration, higher cutting accuracy, better stability. |
| High precision ball screw, strong wear resistance. |
| Japan Shimpo reducer, using oblique planetary structure design, higher precision, longer service life. |
| The main electrical components use domestic famous Chint electrical appliances, quality assurance, and can be purchased all over the country, convenient damage and timely replacement of electrical parts. |
| The amount of four edges can be adjusted, but also one of the edges can be repaired, free and flexible. |
| Adsorption table, patent design, adsorption hole position layout is uniform, can firmly absorb the door plate. |
| The cutting saw blade is made of main saw and auxiliary saw structure to prevent the door plate from collapsing, and the small saw blade is floating structure, and the thickness of the door plate can be freely adjusted from 40mm to 50mm. |
| Steel beam, machine body and beam are quenching treatment, CNC penttahedral processing center processing, to ensure the strength of gantry and processing precision during major cutting. |
| Patented design dust cover, with cutting automatic switch dust absorption function, dust absorption effect is very good, cutting dust can also be sucked clean. |
| The length of the door plate positioning range is 1 meter, so the door fan can be processed from 1700 to 2700 long, the customer's processing range is larger, the processing is more flexible. |
| Automatic collection function of waste materials, the conveyor belt automatically carries out the waste materials, without manual collection, to prevent mechanical damage. |
| The system automatic scheduling function, can arrange and process 30 different sizes of doors, easy to operate, improve efficiency. |
| Automatic feeding table with automatic scanning code function, automatic scanning code, automatically adjust the distance of the adsorption table, automatic transfer of processing procedures, can make the size of the door processing up simple, convenient and fast. |
| Through the scanning code function, automatically adjust the distance between the adsorption table, so as to process different widths of the door, servo motor drive, wire rod drive, fast speed, high precision. |
| Two 4KW vacuum adsorption pumps, to ensure that any size and shape of the door panel can absorb very firm. |
| The gantry is welded with thick wall square pipe, the corner is reinforced with inclined support, and the grab plate is made of aviation aluminum, so the grab material is more stable and reliable. |
| Use import sponge suction cup, not only do not hurt door board, and suction is big, glass door, modelling hollow out door can be easily sucked. |
| Multiple feeding modes are available: Non-cushion plate mode One pad and one door panel mode One pad and two door panel modes |
