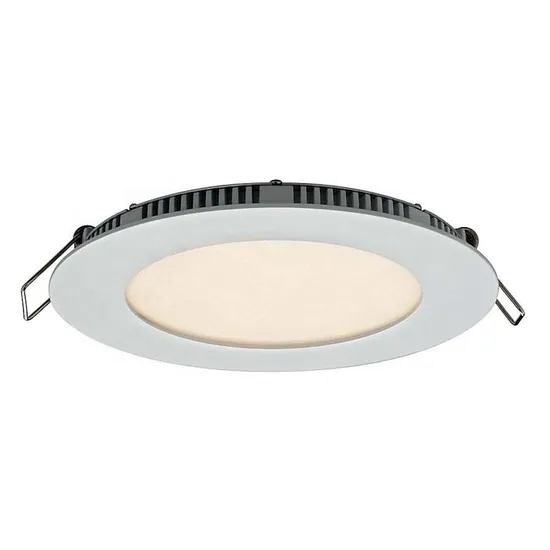

15W 2000K 6000K CCT Tunable White Ceiling Lamp 24V Dali Loxone Knx Smart Home Panel Light
| US$9.80 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
BNL-PL-R200-18W
Emitting Color
Warm White
Dimmable
With Dimmable
Appearance
Square
Type
Recessed
Base Material
Aluminum
Certification
CE, RoHS
Voltage
DC 24V
Beam Angle
120°
Product Name
Tunable White 2000K-6000K LED Panel Light
LED Chip
Epistar 2835 90PCS
Driver
CE RoHS Isolated
Luminous Flux
>1200lm
CRI
Ra>80 or Ra>90
PF
>0.95
CCT
Tunable White ( 2000K-6000K )
Size
120*120*H14mm Cutout:105*105mm
Features
Energy Saving
Warrranty
2 Years
Transport Package
Carton
Specification
0.5kg
Trademark
Benory
Origin
China
HS Code
9405429000
Production Capacity
50000 Piece/Month
Product Description
CE Rohs Approved Energy Saving Lamp Aluminum Frame Recessed LED Indoor Ceiling Panel Light Product Description Techenical Specification| Model | Size | Power | Input voltage | Led chip | Driver | Luminous flux | CRI | PF | CCT | Beam angle |
| BNL-PL-S105-6W | 120*120*H14mm Cutout:105*105mm | 6W | DC24V ( DALI/PWM Dimmer ) | Epistar 2835 45pcs | CE ROHS isolated | >500lm | Ra>80 or Ra>90 | >0.95 | Tunable White (2000K-6000K ) | 120° |
| BNL-PLS150-12W | 170*170*H14mm Cutout:150*150mm | 12W | DC24V ( DALI/PWM Dimmer ) | Epistar 2835 75pcs | CE ROHS isolated | >1000lm | Ra>80 or Ra>90 | >0.95 | Tunable White (2000K-6000K ) | 120° |
| BNL-PL-S170-15W | 200*200*H14mm Cutout:170*170mm | 15W | DC24V ( DALI/PWM Dimmer ) | Epistar 2835 90pcs | CE ROHS isolated | >1200lm | Ra>80 or Ra>90 | >0.95 | Tunable White (2000K-6000K ) | 120° |
| BNL-PL-S200-18W | 225*225*H14mm Cutout:200*200mm | 18W | DC24V ( DALI/PWM Dimmer ) | Epistar 2835 90pcs | CE ROHS isolated | >1400lm | Ra>80 or Ra>90 | >0.95 | Tunable White (2000K-6000K ) | 120° |
| BNL-PL-S280-24W | 300*300*H14mm Cutout:280*280mm | 24W | DC24V ( DALI/PWM Dimmer ) | Epistar 2835 90pcs | CE ROHS isolated | >1400lm | Ra>80 or Ra>90 | >0.95 | Tunable White (2000K-6000K ) | 120° |
| BNL-PL-R105-6W | Φ120mm*H14mm Cutout:105mm | 6W | DC24V ( DALI/PWM Dimmer ) | Epistar 2835 45pcs | CE ROHS isolated | >500lm | Ra>80 or Ra>90 | >0.95 | Tunable White (2000K-6000K ) | 120° |
| BNL-PL-R150-12W | Φ170mm*H14mm Cutout:150mm | 12W | DC24V ( DALI/PWM Dimmer ) | Epistar 2835 75pcs | CE ROHS isolated | >1000lm | Ra>80 or Ra>90 | >0.95 | Tunable White 2000K-6000K ) | 120° |
| BNL-PL-R170-15W | Φ200mm*H14mm Cutout:170mm | 15W | DC24V ( DALI/PWM Dimmer ) | Epistar 2835 90pcs | CE ROHS isolated | >1200lm | Ra>80 or Ra>90 | >0.95 | Tunable White (2000K-6000K ) | 120° |
| BNL-PL-R200-18W | Φ225mm*H14mm Cutout:200mm | 18W | DC24V ( DALI/PWM Dimmer ) | Epistar 2835 90pcs | CE ROHS isolated | >1400lm | Ra>80 or Ra>90 | >0.95 | Tunable White (2000K-6000K ) | 120° |
| BNL-PL-R280-24W | Φ300mm*H14mm Cutout:280mm | 24W | DC24V ( DALI/PWM Dimmer ) | Epistar 2835 120pcs | CE ROHS isolated | >1800lm | Ra>80 or Ra>90 | >0.95 | Tunable White (2000K-6000K ) | 120° |
Company Profile Founded in 2008, Benory Industrial Co., Limited is a professional manufacturer on LED and EL lighting application products in Shenzhen, China. Products range in our company covers LED strip, LED downlight, LED spotlight/tracking light, led ceiling Lamp, LED PAR lamp, LED tube, EL (Electroluminescent) wire, EL panel and other application lighting&decoration items.We insist on working & developing with all the wholesalers and friendly dealers mutually. We pursue cooperation from competition, create good mutual surviving space and share the benefit in the industry chain with all business partners together.
Packaging & Shipping
Certifications
FAQ Q1 : Can i make sample order ?
----Yes,we support start sample order to verify quality first.
Q2:How long the lead time ?
---Normally 7-15 working days (if have stock,finally depend on your quantity and requirement )
Q3:What is the package ?
----usually single package by white single box.Buck order by Carton.
Q4:What ship way can provide ?
---By DHL/Fedex Or economic ship way.
Q5:Can we customized ?
---Yes,we can base on your specify requirement customized for you.((Color temperature/Logo/Power/Voltage/Package can customized if you need,befor order please tell us you requirements)
