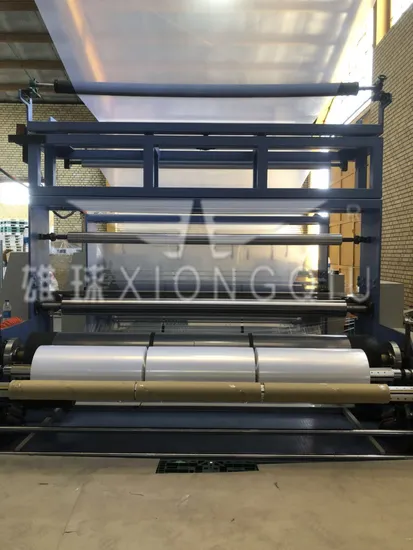

2019 Xiongqiu 2400mm ABC 3 Layers LDPE /HDPE Film Blowing Machine with Rotary Die Head and Back to Back Automatic Winders
| US$78,000.00-82,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FM3-2400S8
Maximum Folding Width of Film
2300mm
Screw Diameter
75mm*3
Automation
Non-Automatic
Computerized
Non-Computerized
Machine Weight
8T
Certification
CE, ISO9001:2008
Machine Size
L*W*H: 6m * 6.2m * 12m
Voltage
380V 50Hz 3phase
Transport Package
Plastic Warp Film for Container Shipment
Trademark
Xiongqiu Plastic Machinery Co., Ltd.
Origin
Foshan, Guangdong Province
HS Code
8477300000
Product Description
2019 Xiongqiu 2400mm ABC 3 layers LDPE /HDPE film blowing machine with Rotary die head and back to back automatic windersExtruder can provide a good plastic effect and a high quality products. It is designed optimizedly in die head and the flow is designed scientificly and rationlly.
Widely used in producing composite membrane, cable film, macromolecule adhesive film, liquid film, agricultural film and shrinkable film.
| Model | FM3-1300 | FM3-1700 | FM3-2000 | FM3-2200 |
| suitable material | HDPE | |||
| thickness | 0.02--0.20mm | |||
| film width | 1200mm | 1600mm | 1900mm | 2100mm |
| max output | 80kgs/hr | 105kgs/hr | 150kgs/hr | 215kgs/hr |
Extruder
| screw diameter | Φ45mm*3 | Φ55mm*3 | Φ65mm*3 | Φ75mm*3 |
| L/D ratio | 30:1 | |||
| temp. controller | 15 zone | 15 zone | 16 zone | 16 zone |
| barrel cooling | 120w*4 | 120w*4 | 120w*6 | 120w*6 |
| driving motor | 11kw*3 | 15kw*3 | 18.5kw*3 | 30kw*3 |
Die head
| die diameter | Φ250mm | Φ350mm | Φ450mm | Φ630mm |
| air ring diameter | Φ350mm | Φ450mm | Φ550mm | Φ900mm |
| die structure | Spiral mandrel die chrome plated surface 40Cr | |||
| cooling fan | 2.2kw | 3kw | 4kw | 5.5kw |
Take up part
| take up width | 1300mm | 1700mm | 2000mm | 2200mm |
| effective width | 1200mm | 1600mm | 1900mm | 2100mm |
| take up motor | 1.5kw | 2.2kw | 2.2kw | 3.7kw |
winder
| winder width | 1300mm | 1700mm | 2000mm | 2200mm |
| effective width | 1200mm | 1600mm | 1900mm | 2100mm |
| winder motor | 1.5kw | 2.2kw | 3.7kw | 3.7kw |
| optional equipment | auto-loader device, film surface treater, air compressor, fast change net, automatic winder, double wind air ring, IBC inner cooling die head | |||
PICTURES FOR REFERENCE:
