High Degree Gypsum Board Production Line

Product Description

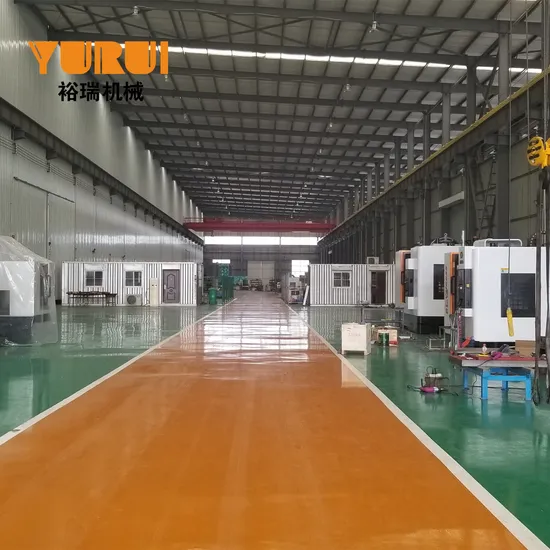

Company Profile
Yurui (Shandong) Machinery Co., Ltd, is an enterprise integrating gypsum projects R&D, design, manufacturing, exportation, installation, and commissioning. We devote ourselves to helping customers quickly achieve projects establish and qualified finished products produced with our superior experience and strength in design, manufacturing, installation& commissioning.

We devote ourselves to helping customers save raw materials, and energy, and reduce the cost of production and equipment maintenance in long term with the most advanced gypsum equipment technology and the most mature gypsum production formula.
We have been deeply engaged in the field since 1994, setting up 100+gypsum projects domestically and abroad. Our engineers' group who only serve for YURUI left a full footprint over Africa, Asia, and South America, more than 20+countries. We hold different projects in each area, offering case visits on-site. Besides we developed online visiting which breaks the limit of the virus.
Technology Advantage
1. The heat supply of the entire production line uses only one heat exchange, which reduces heat loss during multiple heat transfers. It is heated by the flue gas of the hot blast stove through the heat exchanger to the temperature required for production, and then the clean gypsum board is dried by clean hot air. In the process of drying, the hot air can be fully contacted with all sides of the gypsum board drying, so that the problem of dryness of the gypsum board can be better ensured by the problem of low heat on one side and low heat on one side.
2. The whole process of drying is designed by using the hot air circulation method. The fully enclosed system is used in the dryer to ensure that the heat loss during the heat transfer process is minimized, thereby reducing the energy consumption requirement. During the drying process, the entire drying chamber is divided into several zones. We adjust the temperature and flow of the hot air according to the temperature required by each zone, which can save energy.
3. The heating time is short. Only when the hot blast stove is completely burned can the temperature required for the production process be quickly reached.
4. The equipment is easy to operate and easy to control.
5. At present, more than 20 million gypsum board production lines in China use hot air dryers to dry gypsum boards.
Product parameters

Output	2 million -30 million sqm/year (based on thickness 9.5 mm)
Fuel	coal; natural gas; diesel; heavy oil, etc
Technology	hot ai; heat transfer oil/thermal oil
Width	1200mm,1220mm
Thickness	6mm to 22mm
Length	1500mm-300mm
Raw material	Natural gypsum powder, phosphorus gypsum powder, Desulfurized gypsum powder

Raw material request

Raw materials	Item	Specification
Calcined gypsum powder	Fineness	0.2mm,<10% 0.2mm,Remnant<10%
	Initial set time	3.5-5.5 3.5-5.5 minutes
	Final set time	7.5-10.5 7.5-10.5 minutes
	Crystal water	4.5%-5%
	Half-water gypsum powder	>65%
	Bending strength (2 hours)	1.8 Mpa
Paper	Weight	190-220g/
	Thickness	0.36-0.4mm
	Air permeability	0.85-1.6μm/pas
	(Cobb) Water absorption( Cobb )	15-30g/
	Tensile strength	12.5 KN/m,3.5 KN/m Portrait 12.5 KN/m, transverse 3.5 KN/m
	Transverse expansion and contraction	<2%
	Moisture	10%±2
Denaturized starch	Content of the starch	>70%
	Moisture	11%-13%
	PH	6.5-7.5
	Protein	<0.3%
	20ºC-40ºC Solubility in 20ºC-40ºC water	73%-78%
Foaming agent	Condensate	>30%
	Ligarine	<3%
	Inorganic salts	>2.5%
	PH	7-9
Water	PH	6.5-7.5

Main equipment introduction
Dosing System
Accurate dosing for each raw material. Starch mixing tanks use stainless steel, with long service life and low corrosive. The foaming agent reserve tank is made of stainless steel. The foaming system adopts domestic advanced technology-Dynamic and static foaming system, ensuring the finished board is lightweight, has good toughness, and saves much cost.
Forming System
gypsum slurry from the vertical mixer falls onto the forming line lower paper, the upper paper by the correcting device, glue device sent to the forming station, through the vibration table, the lower paper folding cover upper paper and squeezes out plasterboard of requested specification.
Solidification System

Finished the initial solidification on the belt, and final solidification on conveying roller.
Automatic Cutting System

With the adoption of developed core servo cutting technology of our company, adjusting the required plate dimension by a digital controller. only1 mm gap between cutting saw, Maximally reducing cost by controlling the minimum edge horn size.
Transit System

Used to horizontally transport the cut plate to the distributor, the adoption of servo motor control ensures the precision of the board movement position.

Drying System

The board enters the drying room through a distributor, Drying room is divided into 2 areas: the heating area and the cooling board area, After the drying machine- finished the drying task, the outboard machine discharges the board.

Discharging Board And Finished Board System

Used to convey gypsum board, and cutting to get the required size, then edging and stacking.
Finished Board

1. Newly developed technology, curved edge gypsum boards
2. New developed foamed gypsum board is more lightweight, so easy for installation , also strenght is higher
Project cases
For South Africa market , you could visit our gypsum powder production line and putty powder production line.

For South Asia market , you could visit gypsum board production line and gypsum powder production line.

For Middle Asia market, you could visit gypsum board production line and gypsum powder production line.
Full range of services
Pre-Sales: Full Cooperation With Pre-Preparation Work
In addition to the technical aspects of the project itself, our support also includes assisting clients in obtaining feasibility reports, government approvals, bank approvals, etc.

In-Sales: On-Time Reporting of Production Progress
You could inspect the production of your machine through photos and videos for the whole procedure.

After-Sales: Lifetime & 24h Technical Support
We offer a lifetime of technical support. Feel free to contact us for help with any technical issues,24 h available. We will also visit customers regularly to help them solve problems and assist to update formulas and equipment.
FAQ
1. Q: How long is the warranty of your equipment?
A: 1 year
2.Q: Do you supply spare parts?
A: Excellent easy broken parts support for buyers. Easy broken parts guarantee for one year.
3. Q: Will you provide training?
A: The training is free of charge , and our engineer will be on duty to train your worker.
4. Q: How will you provide installation&commissioning
A: Will provide 2~8 persons(adjustable according to the degree of automatic )for installation. The engineer team will go with your project.
5. Q: How long time for the installation and commissioning
A: Depend on configuration normally only need 15-25days. Including worker's training.
