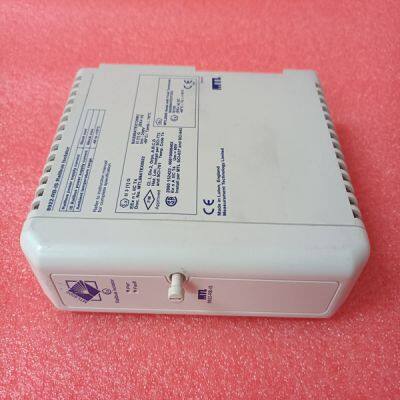

8922-RB-IS

Product Details

Product Description

Product Description
Brand:GE
Type:8922-RB-IS
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Communication speed CH1 10 Mbit/s / 100 Mbit/s defined in IEEE 802.3u 10/100BaseTx Status indicators Running normally: Green. Exceptional fault: Red. Two traffic indicators – RxTx1 and RxTx2(LED will always be switched off) -- controlled by traffic pace: Flashing Yellow Running as primary: Yellow. Running in a redundant configuration: Yellow. Connectors RJ45 Current consumption (from CEXBus 24VDC) 160 mA typical (250 mA max) Power dissipation 3.8W typical (6W max) Protection Rating IP20 according to EN60529, IEC 529. Weight 500 g (700g with package) (package CI868K01with CI868 and TP867). Dimensions W 59 x H 185 x D 127.5 mm (W 2.9 x H 7.3 x D 5.0 in)
CI869 and TP869 - AF 100 Interface Key Features • CEX-Bus Module. • Simple DIN rail mounting • Supports communication interface redundancy • Supports redundant connections to AF 100 Bus through twisted wire pair. Description The CI869 is an AC 800M communication interface that connects to the AF 100 field bus through the twisted pair (TWP) cable. The CI869 can be configured for both redundant cables and redundant communication interfaces. For details about the operation and configuration of CI869 connected to AF 100 bus, refer to Advant Fieldbus 100 User Manual (3BSE000506*). The Termination Plate (TP869) contains the CEX-Bus connectors and two 4-pin connectors for AF 100 TWP. The baseplate has a code lock (see Table 4 on page 75) that prevents the installation of an incorrect type of unit onto the TP869 Baseplate.
Indicators There are six LED indicators on the front panel of CI869. The Mast LED is not used as CI869 cannot function as bus master. The other LEDs indicate the various states and conditions of the CI869 unit.
