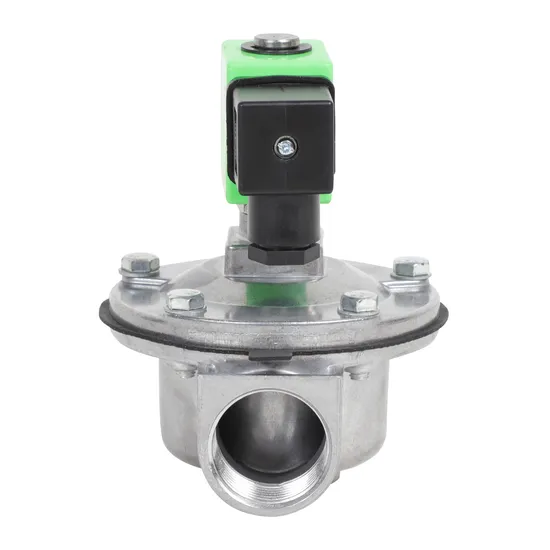

Electromagnetic pulse valve is an important pneumatic actuator, which is widely used in the soot-cleaning and blowing system of pulse bag filter and other equipments. The following is a detailed introduction to the electromagnetic pulse valve:
1. Product definition and role:
Electromagnetic pulse valve, also known as diaphragm valve, is a diaphragm valve that combines solenoid valve, pilot valve and pulse valve. It is directly controlled by the electrical signal, can open and close the high-pressure gas source in an instant, produce pulse, so that the filter bag is sprayed row by row to clear the dust, to ensure that the dust collector's handling capacity and dust collection efficiency.
2.The working principle:
The working principle of electromagnetic pulse valve is to use the electrical signal of the pulse into mechanical pulsation, so that the powerful energy of the pulsating gas is released in a short period of time to produce a huge impulse, in order to achieve the purpose of clearing dust. Specifically, when receiving the electric signal from the pulse blowing controller, the electromagnetic pilot head suctions the moving column and opens the unloading hole, the pressure gas in the back chamber of the diaphragm is rapidly discharged, and the pressure gas in the front chamber of the diaphragm lifts the diaphragm and opens the channel to achieve blowing. When the electric signal disappears, the spring of the electromagnetic pilot head resets the movable column and closes the unloading hole, and the pressure of the gas in the back chamber of the diaphragm and the force of the spring make the diaphragm close the channel and stop blowing.
3. The product type:
Electromagnetic pulse valve can be divided into the following types according to the angle of the valve inlet and outlet and the form of air inlet:
right-angle electromagnetic pulse valve: the valve body inlet and outlet at right angles, directly controlled by the electrical signal diaphragm valve.
straight-through electromagnetic pulse valve: the valve body inlet and outlet into 180 degrees, directly by the electrical signal control of the diaphragm valve.
submerged electromagnetic pulse valve: valve body inlet submerged in the air bag.
4.The technical parameters:
Electromagnetic pulse valve technical parameters include working pressure, working medium, voltage, current, use of the environment, service life and so on. For example, the working pressure of right-angle electromagnetic pulse valve is generally 0.3-0.6MPa, the working medium is clean air, the voltage has two kinds of DC24V and AC220V, the current is about 800Ma/60m, the use of ambient temperature of -10-65 ºC, the relative humidity of the air does not exceed 85%, and the service life of up to 1 million times or 3-5 years.
5. Product features:
Electromagnetic pulse valve has the following characteristics:
simple structure, easy installation, use and maintenance.
stable and reliable operation, high precision pulse control.
good corrosion resistance, suitable for a variety of harsh environments.
long service life of the diaphragm, reducing maintenance costs.
6. The field of application:
Electromagnetic pulse valves are widely used in the ash cleaning and blowing system of pulse bag filter, cartridge dust collector and other equipments, as well as the pneumatic control system in the chemical, pharmaceutical, food and other industries.
In a word, electromagnetic pulse valve is an efficient and reliable pneumatic actuating element with a wide range of application prospects, which is of great significance to improve the operation efficiency and reduce the maintenance cost of dust collectors and other equipment. Detailed Photos
Product Parameters DMF-ZM Series solenoid valve parameter table

Model		DMF-ZM-20	DMF-ZM-25	DMF-ZM-40S	DMF-ZM-50S	DMF-ZM-62S	DMY-ZM-76S
Caliber		G3 /4 "	G1″	G1 1/2 ″	G2″	G2 1/2″	G3″
Connection method		Nut quick connect
Working voltage				DC24V/AC220V	optional
Working pressure				0.3-0.8MPa
Working Medium		Clean air without water, oil, or impurities
Ambient temperature		-20~200ºC(Selection of diaphragm sheets made of different materials according to the ambient temperature.)
Valve body material		High strength aluminum alloy
Connecting pipe outer diameter		25mm	32mm	45mm	57mm	73mm	89mm
Single valve spray area		4-6m²	6-10m²	16-22m²	26-32m²	36-42m²	48-72m²
Diaphragm material		Nitrile rubber/fluoro rubber (high temperature valve)
Service life		1 million times/three years
