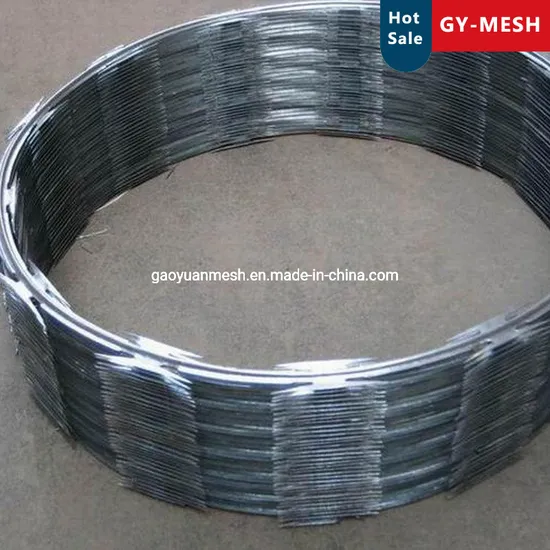

Razor Barbed Wire Concertina Razor Wire for Security Fence

Product Description

Product Description Razor Barbed Wire - Professional Manufacturer
High Quality Razor Barbed Wire - Factory Price
Razor barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire.
It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders,
with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult.
The wire and strip are galvanized or PVC coated to prevent corrosion.
Material:
Galvanized wire and plate
Heavy Zinc coated wire and plate
Stainless steel wire and plate
Process: galvanized steel plate or stainless steel plate punched into certain forms then attached to the steel wire in sharp angle to form the blades.
Barbed Types: BTO-10 BTO-18 BTO-22 CBT-60 CBT-65

Model	Plate Thickness mm	Core wire Diameter mm	Barb Length mm	Barb Width Mm	Barb Spacing mm
BTO-10	0 .5 +- 0.05 mm	2.5mm	10mm	13mm	26mm
BTO-12	0 .5 +- 0.05 mm	2.5mm	12mm	15mm	26mm
BTO-18	0 .5 +- 0.05 mm	2.5mm	18mm	15mm	38mm
BTO-22	0 .5 +- 0.05 mm	2.5mm	22mm	15mm	38mm
BTO-28	0 .5 +- 0.05 mm	2.5mm	28mm	15mm	53mm
BTO-30	0 .5 +- 0.05 mm	2.5mm	30mm	21mm	54mm
BTO-60	0 .6 +- 0.05 mm	2.5mm	60mm	32mm	102mm
BOT-65	0 .3 +- 0.05 mm	2.5mm	65mm	22mm	102mm

Coil OD (mm)	NO. of Loops	NO. of Clips	The Utmost Length (m)	Barb Type	Notes
450 mm	33	-	7-8 m	CBT60 CBT65	Single Coil
500 mm	56	-	12-13 m	CBT60 CBT65	Single Coil
700 mm	56	-	13-14 m	CBT60 CBT65	Single Coil
960 mm	56	-	14-15 m	CBT60 CBT65	Single Coil
450 mm	56	3 clips	8-9 m	BTO12 18 22 28 30	Cross Type
500 mm	56	3 clips	9-10 m	BTO12 18 22 28 30	Cross Type
600 mm	56	3 clips	10-11 m	BTO12 18 22 28 30	Cross Type
600 mm	56	5 clips	8-10 m	BTO12 18 22 28 30	Cross Type
700 mm	56	5 clips	10-12 m	BTO12 18 22 28 30	Cross Type
800 mm	56	5 clips	11-13 m	BTO12 18 22 28 30	Cross Type
900 mm	56	5 clips	12-14 m	BTO12 18 22 28 30	Cross Type
960 mm	56	5 clips	13-15 m	BTO12 18 22 28 30	Cross Type
980 mm	56	5 clips	14-16m	BTO12 18 22 28 30	Cross Type

Razor Barbed Wire Feature:
1. Razor barbed is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-
tensile wire.
2. Visual and psychological deterrent.
3. Resistance to corrosion.
4. Low price and easy to install.
5. It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with
piecing and cutting razor blades mounted at the top of the wall, its special designs making climbing and touching
extremely difficult.
Applications:
Razor barbed wire is widely used by many countries in military field, prisons, detention houses, government buildings
and other national security facilities. Recently years, barbed tape has apparently become the most popular high-class
fencing wire for not only military and national security applications, but also for cottage and society fence, and other
private buildings.
Our Services: 1.Support OEM. 2.Sample: Valid 3.Delivery time: The shortest of production time.
If have stocks, the shipping within 3 days. 4.Payment: T/T, L/C, Western Union. 5.The mode of transportation: Sea shipping, air shipping,International express.
Why choose us?
Professional & experienced company.
Professional design team& excellent sales team for your service;
Quick delivery& superior quality
FAQ
1.How about the price?
Firstly,We are always offer the best price to all of our customers.
The second, the price is based upon the quantity required. Generally speaking, the larger the quantity you request, the better pricing per unit you will receive.
2.Is there quality control on all production lines?
Yes,all production line have adequate quality control
3. Can I get samples from you?
If we have stocks, we are glad send sample to you. But if the specification of your request do not have stocks, we are glad to customize to you basic on the Min order quantity.
4. How long the delivery time?
We will finish the production ASAP.
Production efficiency is as important as product quality
5. Minimum order
We do our best to maintain one of the lowest minimum order amounts in the
industry. Meeting customer's requirement is our ultimate goal
