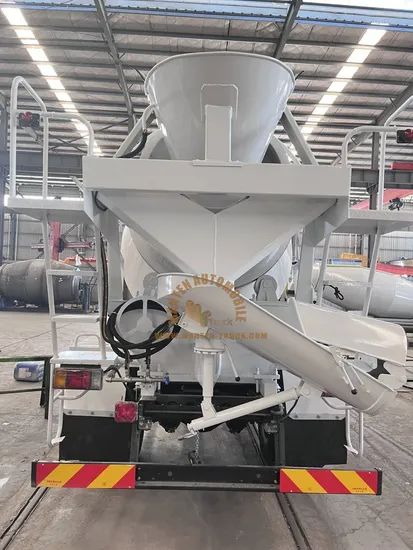

Customzied New Isuzu Samll 3m3 4cbm Italy Pump Motor Concrete Drum Mixer Truck

Product Description

Customzied NEW ISUZU Samll 3m3 4cbm Italy Pump Motor Concrete Drum Mixer Truck
-----------------------------------------------------------------------------------------
*100% new condition by manufacturer direct sale*
*100% quality guaranteed* » I.Product Describution of the Concrete Mixer Truck:
Manufacturer: Hubei Manten Automobile Co.,Ltd.
Features:
1.Concrete mixing truck uses strong and firm tank, which has different volumes, and meets the customers requirements. Compact and rational structure,stable and reliable performance,gorgeous and elegant cab,safe and comfortable. It is used for various construction sites.
2.Drums and special steel plate,adopt mechanical agitation blade material thickness is not less than 5 mm ,1.6 times of abrasionresistance for 16 Mn plank.
3.Inlet and discharge pomrt in the easy wear and tear with wear-resistant material to reinforce and extend the wear and tear.Drum welding sea in the form of lap joint , the advantage is that can form two weld, make the connection strength is higher.
4.The power of the cement mixer truck is output by the power take-off and transmitted to the hydraulic pump through the transmission shaft. The hydraulic energy generated by the hydraulic pump is transmitted to the hydraulic motor through the oil pipe. The hydraulic motor converts the hydraulic energy into kinetic energy and transmits it to the mixing tank through the reducer to reduce the speed and increase the torque. By adjusting the angle of the servo handle of the (double acting variable) hydraulic pump, the positive and negative rotation of the mixing tank and the speed are achieved, so as to achieve concrete loading, mixing, stirring, discharging and other operations.
Structure Picture of the Concrete Mixer Truck
»II . Customzied NEW ISUZU Samll 3m3 4cbm Italy Pump Motor Concrete Drum Mixer Truck
» III. ISUZU FRR OF CONCRETE MIXER TRUCK SPECIFICATION

Product	Concrete Mixer Truck
Vehicle model	MT5255GJB5
Chassis parameters	Overall dimensions	mm	6802X2495X2963
	Wheelbase	mm	3815mm
	Drive type		4*2
	Number of axles		2
	Tire specification		7.00R16
	Number of Tires		6+1
	Allowable passengers in cab		3
Engine	Engine brand		ISUZU 4K ENGINE
	Type of fuel		Diesel
	Displacement/power	ml/hp	190hp
	Max speed	Km/h	98
	Emission standard(TAS)		EURO 4
Mixer Body	Effective cubage:6CBM
	Material: 16MnQ345
	Equipment: Motor, hydraulic pump, gear box imported from Italy.
	Filling speed (M3/min) ≥ 2.8
	Unloading speed (M3/min)≥ 1.2
	Discharge reside rat( %)≤ 0.5
	Mixer drum rotation speed(rpm) 0~12
	Water supply system Tank volume: 400L
	Air pressure water supply
	Operating system Model:linkage operation

Note: Concrete truck/mixer truck/mixing truck/concrete mixer truck are made to transport and mix concrete up to the construction site. They can be charged with dry materials and water, with the mixing occurring during transport. With this process, the material has already been mixing. The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.
» IV. CONCRETE MIXER TRUCK DESCRIPATION
» V.CONCRETE MIXER TRUCK WORKSHOP
» VI .CONCRETE MIXER TRUCK SERIES
»VII.CONCRETE MIXER TRUCK TRANSPORTATION
»VIII.ABOUT US HUBEI MANTEN AUTOMOBILE CO.,LTD is an authorized special truck manufacturer which has many years in design ,product ,sales and service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck , wrecker truck , refrigerated truck and etc. Main info as below:
(1) More than 500 workers, large and advanced production;
(2) 25 professional engineers, can offer the best and cheapest design;
(3) Build strict QC team to guarantee the quality;
(4) 1 year or 30,000km warranty which comes first.
(5) One set of spare parts of chassis provided which will help you save money on maintenance.
(6) Provide technical support and after serive for life.
(7) Professional sales team which will help you to choose suitable truck.
» VIII.FAQ Why choose us?
Experience
10 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.
Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,i-veco,faw,hino,camc,north-benz,ect.
Production supply capacity
Company scale
More than 3000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.
Any more information regarding to Concrete mixer truck,please do not hesitate contact with us!
