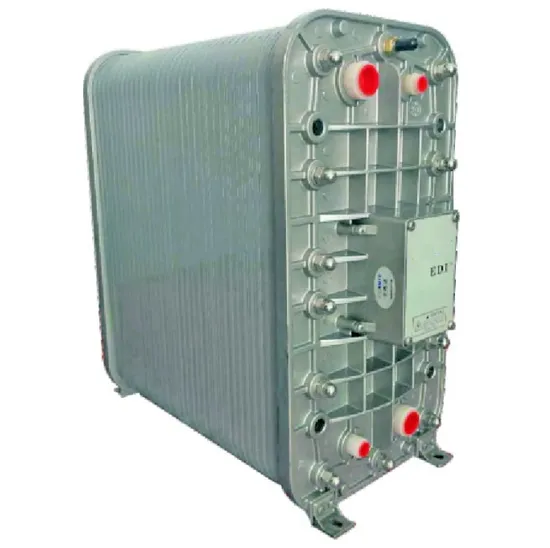

Ultrapure Water System EDI Module for Pure Water
Basic Info.
Model NO.
1000lph
Application
Industry
Capacity
as Required
Transport Package
Wooden
Specification
as required
Trademark
Frotec
Origin
China
Product Description
EDI(Electrodization) is a membrane separation technology which combines electrodialysis and ion exchange technology, including anion exchange membrane and ion exchange membrane.Switching resin and DC power supply lamp equipment to realize water under the action of electric field through the selection of ion exchange membrane and resin exchange of ions Directional migration of ions to remove salt in water depth and to exchange ion exchange resin for two consecutive years through H and OH produced by water electrolysis.Production of Super pure water up to 15-18.2 Omega cm.| ITEM The amount of water produced | KLX-50 | KLX-100 | KLX-200 | KLX-300 | KLX-500 |
| Water production flow range(m3/h) | 0.5-0.7 | 0.7-1.2 | 1.5-2.5 | 2.0-3.5 | 3.5-5.5 |
| Standard water flowjnf/h) | 0.5 | 1 | 2 | 3 | 5 |
| Hydropower resistance(MQ • cm) | >15 | >15 | >15 | >15 | >15 |
| Silicon boron removal rate(%) | N99 | N99 | N99 | >99 | >99 |
| Inflow requirements | | KLX-50 | KLX-100 | KLX-200 | KLX-300 | KLX-500 |
| Temperature range (*C) | 15-35 (25 optimal) | 15-35 (25 optimal) | 15-35 (25 optimal) | 15-35 (25 optimal) | 15-35 (25 optimal) |
| Inflow PH | 6.5-9.0 | 6.5-9.0 | 6.5-9.0 | 6.5-9.0 | 6.5-9.0 |
| Electric conductivity (p S/cm) | 1-25 (optimal<5) | 1-25 (optimal<5) | 1-25 (optimal<5) | 1-25 (optimal<5) | 1 -25 (optimal<5) |
| Total carbon dioxide (ppm) | <3 (optimal<2) | <3 (optimal<2) | <3 (optimal<2) | <3 (optimal<2) | <3 (optimal<2) |
| Total hardness (ppm) | <1 | <1 | <1 | <1 | <1 |
| Siliconactive silica (ppm) | WO.5 (optimalw0.2 | WO.5 (optimal^0.2) | WO.5 (optimalw0.2) | <0.5 (optimal<0.2) | WO.5 (optimalw0.2) |
| Total organic carbon (ppm) | W0.5 | W0.5 | W0.5 | W0.5 | W0.5 |
| Residual chlorine (ppm) | W0.05 | W0.05 | W0.05 | W0.05 | W0.05 |
| Metal ion (Fe/Mn.ppm) | W0.01 | W0.01 | W0.01 | W0.01 | W0.01 |
| Turbidity (NTU) | <1 | <1 | <1 | <1 | <1 |
| Lipid | Not detected | Not detected | Not detected | Not detected | Not detected |
| PM (um) | W1.0 (optimal w0.5) | w 1.0 (optimal w 0.5) | w1.0 (optimalw0.5) | w1.0 (optimalw0.5) | w1.0 (optimalw0.5) |
| Oxidant | Not detected | Not detected | Not detected | Not detected | Not detected |
| Operating parameters | KLX-50 | KLX-100 | KLX-200 | KLX-300 | KLX-500 |
| Fresh water output pressure (Din, bar) | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 |
| Fresh water intake pressure (Cin, bar) | 0.5-1.0 lower than Din | 0.5-1.0 lower than Din | 0.5-1.0 lower than Din | 0.5-1.0 lower than Din | 0.5-1.0 lower than Din |
| Fresh water output pressure (Dout, bar) | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 |
| Concentrated water output pressure (Gout, bar) | 0.5-1 .Glower than Dout | 0.5-1.0 lower than Dout | 0.5-1.0 lower than Dout | 0.5-1.0 lower than Dout | 0.5-1.0 lower than Dout |
| Working voltage (VDC) | 10-50 | 30-80 | 50-100 | 60-120 | 80-160 |
| Running current (A) | 2-5 | 2-5 | 2-5 | 2-5 | 2-5 |
| Recovery rate (%) | 85-95 | 85-95 | 85-95 | 85-95 | 85-95 |
