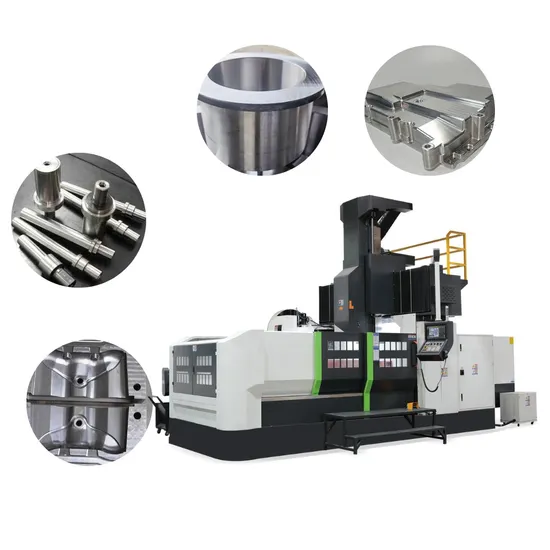

High Speed CNC Double Column Gantry Machining Center Ysm-2017

Product Description

Gantry Machining Center YSM-2017
The double-column machining center has strong rigidity, symmetrical structure, and high stability. Through continuous optimization of the component structure, the dynamic performance of the product is improved.and high-power, high-torque, high-efficiency, and high-precision machining are realized. t is suitable for large-scale processing fields such as shipbuilding, metallurgy, mining machinery, power energy, construction machinery, heavy industry machinery, and more.
The X-axis is driven by a moving nut, and three-point support is used in the middle to maintain the rotation accuracy of the ballscrew rod. At the same time, the load capacity is large and the cutting vibration resistance is good. It can improve the dynamic characteristics of the machine tool and increase the accuracy, stability, and service life of the machine tool.

Model No.	YSM-2017
Item No.
Travel
X-Axis	2200 mm
Y-Axis	1650 mm
Z-Axis	800 mm
Spindle nose to worktable	250-1050 mm
Three-Axis guideway
Door width	1660
Worktable
Worktable Size (L*W)	2000x1300 mm
Max. Table load	8 T
T-Slot	7-22x170 mm
SPINDLE
Spindle Type	BBT-50
Spindle R.P.M.	6000 rpm
Spindle Drive Type	Belt(DDS/Geared)
Feedrate
X/Y/Z Rapid Traverse	12/12/12 m/min
X/Y/Z/ Cutting Feedrate	10 m/min
Tool changer
Tool changer ATC	24(Option:40/60)
Motor
Spindle Motor	15/18.5(143-236Nm) kw
Three-Axis Servo Motor	3/3/3(36Nm)
Accuracy
Accuracy	0.03/0.02/0.015 mm
Repeatability	0.02/0.015/0.01mm
Power Required
Power Requirement	40 kva
Air Pressure Requirement	6ˆ8 kg/cm2
Others
External Dimensions(LWH)	6670x4650x4490 mm
Gross Weight	22 t

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
