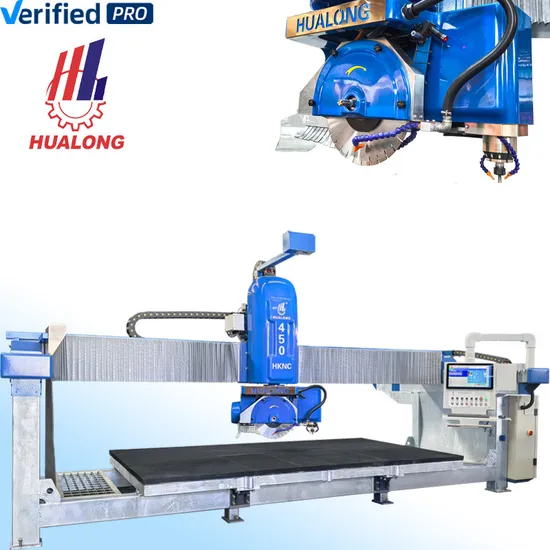

2025 Hualong Machinery Automatic Granite Cutter Stone Cutting Machine 5 Aixs Italin Esa CNC System Marble Cutting with Good Service

Product Description

CNC Stone Machine - A Masterpiece of Precision Engineering HKNC-450 Plus - The Next Generation in Cutting Technology With the revolutionary 5-axis interpolation control, this machine is a paradigm of multifunctionality Excelling in CNC stone cutting, shaping, and engraving, this machine elevates craftsmanship to a new level Designed with the dynamic needs of workshops, this machine artfully combines simplicity and unparalleled versatility, all while being a cost-effective investment. Ideal for cutting both natural and synthetic stone, as well as ceramic slabs and blocks, it is a staple in modern fabrication. Outstanding Functions: * Execute precise vertical, inclined, and horizontal cuts with its distinguished Disc Blade * Craft intricate curves effortlessly with advanced Contour Cutting * Employ the Core Tool for drilling, end milling, and excavation with seamless efficiency * Perform incremental routing for detailed sink cutting, precise profiling, and elegant engraving These capabilities are harmoniously integrated with the prestigious Italian ESA CNC system, cutting-edge digital servo motors, and intuitive CAD CAM drawing software. The HKNC-500 can also be enhanced with a vacuum manipulator, streamlining slab movement to optimize material usage.
Key Features and Advantages

1) 5-axis interpolation powered by the renowned Italian CNC Esa system for unmatched control. 2) User-friendly interface featuring a large 19" color touch-screen for intuitive operation. 3) The blade boasts a 0°-360° rotation and a 90° tilt, enabling flawless chamfering from any angle. 4) The tilting platform (85 degrees) facilitates effortless slab loading, maximizing productivity.
5) The monoblock structure ensures ease of loading, unloading, and installation, with dimensions perfect for container transport.
6) Offers manual cutting options for straightforward machining needs.
7) Features both manual and automatic nesting systems to optimize surface usage of slabs.
8) Premium Options Available - Vacuum manipulator for efficient workpiece handling and enhanced workflow. 9) Additional Options - Photo slab technology for precise nesting and defect avoidance. 10) Exclusive Options - Vein matching capability ensures seamless and aesthetic continuity of veins and colors at project seams.
11) Enhancements - Slab thickness probe for accurate readings and adjustments.
12) Tools & Measurements - Advanced tool measuring systems for precision and reliability.

TECHNICAL DATA FOR HKNC-450
Diameter of saw blade	ø350-ø450	mm
Dimension of working platform	3500x2100	mm
Max. cutting length	3500	mm
Max. cutting thickness	95	mm
Max. lifting stroke	250	mm
Max. lifting weight by sunction cups	200	kg
Power of main motor	15	kw
Power of cutter frame reciproctating motor	2	kw
Power of crossbeam shifting motor	1.1	kw
Power of hydraulic station motor	2.2	kw
Power of lifting motor	0.85	kw
Gross power	22	kw
Water consumption	2	m3/h
Gross weight	4000	kg
Dimensions (L x W x H)	5900x3380x2950	mm

Applications Across Diverse Fields: * Impressive 2D decorative wall panels * Elegant countertops with superior finishes * Distinguished doorsteps, staircases, and thresholds * Magnificent fireplaces for a touch of luxury * Exquisite flooring solutions * Artful funerary art creations * Sturdy and stylish street furniture * Innovative ventilated facades
Exclusive Sole Engraving Module (Optional)
Type: Electric Spindle - The Heart of PrecisionPower:5.5 kW - Potent and Reliable Rotating Speed: 0-24000 RPM - Unmatched Speed and Finesse
This electric spindle surpasses typical mechanical spindles with its superior rotating speed, delivering fine and rapid engraving as well as accelerated curve and corner cutting through milling.
State-of-the-Art Control System -- CNC for Absolute Precision
Brand: ESA Original: Italy Top of the line CNC system with a sleek touch screen interface for effortless configuration and seamless automatic processing. It takes the complexity out of machining tasks, making them effortlessly accurate, flawless, and exceptionally efficient.
Software - Pegasus CAD/CAM
Brand: Pegasus Original: Italy * Easy to Use -- Intuitive and accessible, it requires no specialized computer skills. * Reliable -- Continuous updates and superior support ensure peak performance. * Powerful -- Versatile modules and tools cater to a wide array of technologies and machining processes.
Slab Image Capture
This innovative application enables the acquisition and processing of slab images, expertly correcting lens distortion and straightening them out.
With the processed image, you can strategically arrange shapes on the slab, steering clear of imperfections while pinpointing nervures for machining.
Additionally, it allows for precise geometric qualification of the slab edge.
Digital Servomotor
Brand: ESA
Original: Italy
A cutting-edge permanent magnet brushless servomotor with integrated drives, engineered for comprehensive digital integration with Esa's CNC systems,
provides robust and dependable control across the X, Y, Z, and C axes.
Electro-spindles
Renowned for their quality, these spindles are governed by an inverter that adjusts the speed from 0 to 6000 rpm, enabling the use of various blades and diamond tools, such as core drills or milling cutters. Manual tool change is supported. Internal water passage
Slab Thickness Detector (optional)
Origin: China
A sophisticated system designed for the automatic detection of slab thickness, enhancing precision and efficiency.
Blade Presetting Unit (optional)
Features automatic measurement of blade diameter and diamond tools, ensuring precision.
Rubber Platform (Optional)
Durable, waterproof, and resistant to deformation.
Safeguard Door (Optional)
A recommended safe light curtain system, it plays a crucial role in preventing work-related injuries.
Galvanization (Optional)
Galvanizing effectively seals the surface against air, water, and corrosive elements, boosting the machine's corrosion resistance, strengthening its structure, and prolonging its life.
Linear Guide
Brand: Hiwin Original: Taiwan, China Recognized for excellence, these top-tier products are employed on crossbeams and carlings, ensuring precision cutting and extended longevity.
Q: Are you manufacturer ?
A: Yes, we are a leading stone machine manufacturer with over 30 years of expertise in China, supported by a global network of authorized agents for excellent after-sales service.
Q: Can I get a machine according to my own requirements?
A: Absolutely. We welcome OEM and ODM orders to meet your specific needs.
Q: This is the first time I use this kind of machine, is it easy operate?
A: We provide comprehensive instructional support with detailed guide videos and an English manual included with your machine. Should you have further questions, we offer complimentary expert online guidance until you are proficient in operating the machine with confidence.
Q: What is your Minimum Order Quantity (MOQ) and what are the delivery terms?
A: Our Minimum Order Quantity is a single set. We are flexible in shipping to your specified port or directly to your doorstep. Kindly provide us with your port name or address, and we will ensure you receive the most competitive pricing and freight options.
Q: Could you describe your after-sales service?
A: We are committed to providing free online guidance for the lifetime of the machine. Additionally, we partner with local dealers in several countries to facilitate machine installation and maintenance.
Q: What if my machine breaks down? Can you assist with repairs?
A: Absolutely, many of our machines are equipped with remote troubleshooting capabilities, enabling us to address issues via remote control and video guidance. We also offer detailed instructions for common repairs, and if your region is covered by our agents, they will provide repair services directly.
