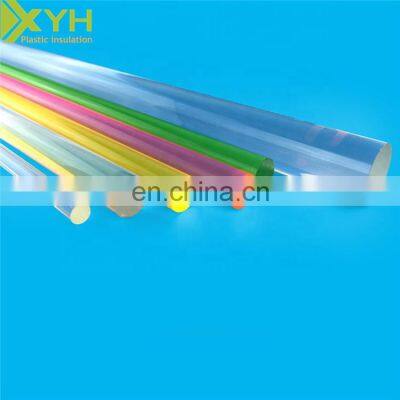

Colored Translucent Clear Acrylic Tube / Rod

Product Description

Product Description
Colored Acrylic Tube
Product Description
PMMA full name is Polymethyl Methacrylate , also known as acrylic. PMMA by the methyl methacrylate polymerization , is an early development of important thermoplastic , its density is more than half of the ordinary glass , anti- broken crack capacity is several times higher , according to production molding process is divided into the cast sheet and extruded sheet
PMMA tube Specification

Wall thickness	above 2mm
Outer diameter	10-800mm
Length	can be customized to any length
Color	transparent,other colors can be customized

PMMA tube Technical parameters

Tensile strength	≥61MPa
Light transmittance	≥91%
Elongation at break	≥2%
Anti - solvent crazing of	Soak for 4 hours without crazing

PMMA Characteristics
1. Base attribute
(1) Low density: PMMA density probably in 1.19-1.22g/cm3, is the glass (2400-2800g/cm3) half
(2) Chemical resistance: PMMA board has excellent corrosion resistance,in addition to chloroform,acetone and other organic solvents
(3) Easy processing: PMMA products can undertake adhesive, saw, planing, drilling, carving, grinding,screen printing,gush arenaceous etc craft and machinery processing,heat can bend mould into the acrylic products
(4) Visible light is higher: PMMA is currently the best polymer transparent material, the transmittance achieves 93%, is higher than the glass penetrability
(5) Low melting point: PMMA melting point approximately 130-140 °C (265-285 °F) compared to glass approximately 1000°C high temperature low many
(6) High mechanical strength: The anti-stretch and anti-impact's ability compared to simple glass high 7~18 times, through stretch processing PMMA, may serve as the bulletproof glass
(7) Weatherability: PMMA board has excellent weather resistance,can be used for outdoor products.Even exposure to sunlight can also be normal use for a long time
(8) Light weight: PMMA density is 1.19-1.22g/cm3,similarly the size material, its weight only then simple glass's half,the metal aluminum (belongs to light metal) 43%
2. Advantages
(1) Light-admitting quality: up to 93%,transmittance excellent,light and soft
(2) Shock resistance: is the glass product 200 times, almost no risk of fracture
(3) Flame resistance: not spontaneous combustion and self extinguishing nature
(4) Rationality: rationality design, waterproof moisture-proof, open structure, convenient repair
(5) Durability: products of the built-in light source with good protection, prolong the service life of light source products
(6) Energy saving: good light transmission,a corresponding reduction of the light source products,lower utility costs
(7) Beautiful: exquisite technology, the font is the mirror effect, and the base without drape, no seams, all riveting firmware does not appear
(8) Weatherability: panel coated high concentrations of ultraviolet ray absorber, insurable long-term weather resistance, never fade, service life of up to 5 to 8 years
PMMA rod Application
(1) Lndustrial Applications: surface of the instrument panel and cover,etc
(2) Advertisement Application: light boxes,signs,signage,exhibition stand etc
(3) Medical applications: the incubators,a variety of surgical medical devices
(4) Transportation applications: trains,cars and other vehicles,windows and doors,etc
(5)Civilian goods:sanitary facilities,arts and crafts,cosmetics,stents,and the aquarium,etc
(6) Lighting applications: fluorescent lamp,pendant lamp,street lamp, luminous project, stage design, etc
(7) Construction applications: shopwindow,soundproof windows and doors,mining mask,telephone booths,etc
Company information
Shenzhen Xiongyihua Plastic Insulation Ltd
Shenzhen Xiongyihua Plastic Insulation Limited was established in 2006 in Shenzhen, after more than decades of continuous efforts , has developed into a professional integrated manufacturer of specializes in production and development Engineering Plastic and Insulation Plastic ,is the most complete varieties. We have automatic dipping production lines, CNC carving machine and laser engraving machine, along with several saws, milling, planing,grinding, drilling, tapping, punching, cutting and other machining large production equipment.
Our main products :
1.Insulation Plastic Series : 3240/FR-4/G10 Epoxy Fiberglass ,Bakelite,3025 Phenolic Cotton Cloth Laminated,3021 Phenolic Paper Laminated,High Voltage Insulation Plastic.
2.Engineering Plastic Series: PA6/MC Nylon ,POM, PTFE,PVC,PE,PU,Acrylic,ABS and so on.
3. Insulation Machining Parts Series : Customized according to the customers’ drawings and designs,welcome to contact us for more details.
Our well-equipment facilites and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
As a result of our products and outstanding customer service, we have gained a global sales network reaching India, Vietnam, Thailand, Indonesia, Philippines, Malaysia, Turkey, Pakistan, Dubai, and some other countries from European, like Brirain, France and German. And America, Australia, etc,enjoying great reputation in plastic industry.
If you are interested in doing business with us, freely send your inquiry and warmly welcome to visit our website to check more information and products details.
Our experienced and knowledgeable staff will meet your needs and exceed your expectations.
Packaing & Shipping
Protective fim + Carton + Wooden packing + Shippig
We can customized for your need
Certifications
Professional production & processing services
1. According to customer demand,production and processing of various machinery and electrical electric equipment parts
2. Undertake the works of reaction tank,plating tank,purifying-tank,electrolyzer and the like
Product Processing solutions
Sawing,drilling,milling,turning,routing,carving,die-cutting,shearing with different tools or machines
