500W DVB-T/T2 UHF Transmitter

Product Description

500W DVB-T/T2 UHF TRANSMITTER
Product Description
UHF Outdoor Terrestrial DTV Transmitter

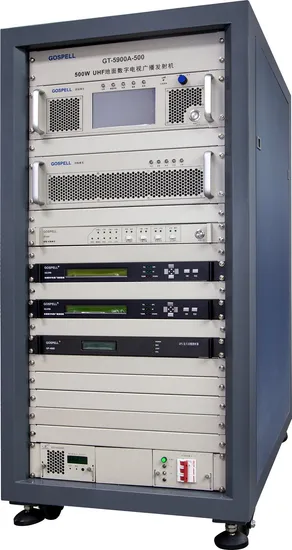

The Gospell GT-5900A-500 indoor terrestrial digital television broadcasting transmitter operates at 470-702MHz. It has flexible configuration and adheres to the consistent high index, high stability and high reliability of Gospell products. It can fully meet the needs of multifrequency transmission and large regional coverage. It is especially suitable for terrestrial digital TV networks with complex terrain and wide coverage.
The device has the advantages of advanced system design, low noise, high working efficiency, superior anti-interference ability, simple structure and small size. It fully supports DTMB, CMMB, DVB-T / T2, ISDB-T, ATSC-T and other digital TV standards, and it has good flexibility and applicability in practical engineering.
Main Features Strong applicability The operating frequency: 470 ~ 702MHz; Support single channel and broadband transmission. Support a variety of modulation standards, including: DTMB, CMMB, DVB- T/T2, ATSC-T and ISDB-T, etc. Modular design, easy to install, maintain and upgrade. Support complete machine \ preamplifier unit \ exciter 1 + 1 backup. High efficiency High efficiency LDMOS power amplifier and linear circuit design are adopted to further reduce the power consumption of the equipment. The built-in adaptive pre-correction module (option) supports broadband pre correction, which can greatly improve the working efficiency and output signal quality of the transmitter. High stability Support two power control modes of ALC and AGC (optional) to stabilize output power. The stability of the device is greatly enhanced by using protection mechanisms such as over-temperature, overcurrent, overexcitation and standing wave. Perfect delay start technology can effectively avoid the damage of burst signal to transmitter. High performance Excellent output signal quality fully meets the requirements of transmission system for signal quality. Good out of band indicators are particularly suitable for use in complex electromagnetic environments. Sufficient power margin to meet customer requirements for transmission power. Easy to use Adopt true color TFT touch screen, with friendly human-machine interface and convenient operation Support local and remote monitoring Support Web management and GPRS remote monitoring (option) Block Schematic Diagram of Equipments
Product Parameters
Technical Specification

General specifications	Dimensions (W * H * D)	600*1300*1000mm (24U 19-inch cabinet)
	Weight	200KG
	Working temperature range	0~45°C
	Storage temperature range	-25~85°C
	Environmental humidity range	10%~90%, no condensation
Power supply	Input voltage	AC 220V±10% 50Hz or AC three-phase 380V±10% 50Hz (Recommendation)
Electrical interface	RF input	N-50K
	RF output	1-7/8 or 3-1/8 Flange optional
	Network management interface	1 x RJ-45, 10/100 Base-T Ethernet
	RF monitoring output	SMA-50K
	TS data input	BNC-75K (Exciter)
	10MHz data input	BNC-50K (Exciter)
	1PPS data input	BNC-50K (Exciter)
Heat dissipation		Forced air cooling
AGC power control range		±8 dB
Input signal level		90dBuv
Standard		DTMB, CMMB, DVB-T/T2, ISDB-T, ATSC-T
Output RF signal indicator (DTMB)
Networking mode		MFN or SFN
SFN mode frequency adjustment step		1Hz
Frequency accuracy	SFN	≤±1Hz
	MFN	≤±100Hz,
Frequency stability (3 months)	Use internal reference sources	≤1×10-7
	Use external reference sources	≤1×10-10
Output power (RMS)	Single channel	500W±10%
Output power stability		≤±0.5 dB
Lo phase noise	Offset center frequency 10Hz	<-60dBc
	Offset center frequency 100Hz	<-75dBc
	Offset center frequency 1kHz	<-85dBc
	Offset center frequency 10kHz	<-95dBc
	Offset center frequency 100kHz	<-110dBc
	Offset center frequency 1MHz	<-115dBc
Spectrum template	Relative frequency -3.9MHz	≤-32.8dBc
	Relative frequency +3.9MHz	≤-32.8dBc
	Relative frequency -4.94MHz	≤-69.9dBc
	Relative frequency +4.25MHz	≤-64.9dBc
	Relative frequency -5.75MHz	≤-74.2dBc
	Relative frequency +5.25MHz	≤-76.9dBc
	Relative frequency -9.75MHz
	Relative frequency +6.25MHz
	Relative frequency -10.75MHz
	Relative frequency +10.25MHz
	Relative frequency -12MHz	≤-100dBc
	Relative frequency +12MHz
Modulation error rate (MER)	Single channel	≥33 dB
Output signal shoulder @fc±4.2MHz		≤-36 dB
In band roughness @fc±3.591MHz		≤±0.5 dB
Output power in adjacent channel		≤-45dBc
Output power outside adjacent channel		≤-60dBc
Output return loss		≥26dB
