Mini Bench-top Wet Spinning Machine With 316l

Product Description

Product Description

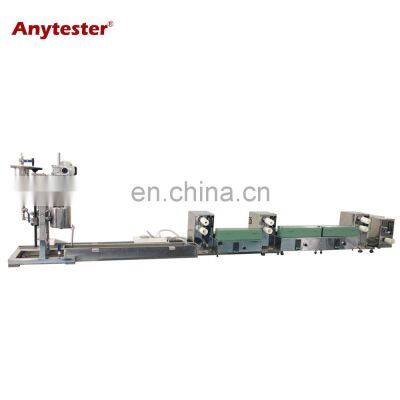

Product DescriptionAT235 Bench-top Wet Spinning Machine is special design for researching new material in the field of textile, macromolecule and other material. It consists of mixing tank, dosing pump, filter, spinneret, coagulating bath, drawing roller, heating bath, drawing roller, setting bath, drawing roller and winding.Specification Model AT235 Mixing tank 1L or customized, 316L stainless steel Sample volume 200~ 600ml or customized Vacuum pump 0.18kW Dosing pump flow rate 0.66CC/rev Dosing pump power 180W Dosing pump reducer 1:60 Spinneret 1 Spinneret plate 100 holes, hole dia.: 0.07mmMaterial: tantalum Coagulating bath Size 1000*160*160mm Heating power 0.6kW Material 316L stainless steel Drawing roller Material Nylon or 316L stainless steel Size Ø50×80mm Reducer 1:10 --- One horizontal roller, one gradient roller with ±5 degree, it's adjustable Motor power 25w Roller speed 2~40m/min adjustable Heating bath Type non-contact Length 400mm Heating power 250W Temp. range 20~150℃ Sensor PT100 Setting bath Type non-contact Length 800mm Heating power 250W Temp. range 20~150℃ Sensor PT100 Winder Speed 2-40m/min Size Ø50×80mm Transverse displacement 55mm The Whole line length 5000mm Power supply 220V, 50HzFutures★ 316l Stainless steel frame, durable and nice★ Mini size, save space★ It can simulate the whole process★ Thermal system for mixing tank is selectable★ Heating bath can adopt air heating or water heating, it's selectable.★ The whole line adopt quick joint connecting, it's easy to assemble.Packing & Delivery Packaging Weight 0.6kW Packaging Details 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Payment Payment Item T/T EXW 30% T/T in advance,paid the balance before the payment FOB CFR(C&F) 30% T/T in advance,paid the balance again the copy of L/C CIF L/C L/C amount abve 50,000 usd, we can accpet L/C at sight West Union Amount lower than 50,000 USD Delivey Time 7~10days after receiving payment for one containerRelated Products AT206 Laboratory Ring Spinning Machine AT225 Laboratory Melt Spinning Machine AT247 Automatic Air-Jet Sample Loom AT241C Automatic Single Yarn Warping MachineOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productContacting Us ERIC QIN Website Mobile Phone +86 188 5510 5986 Whatsapp +86 188 5510 5986 Skype eric-qlk Wechat +86 188 5510 5986
