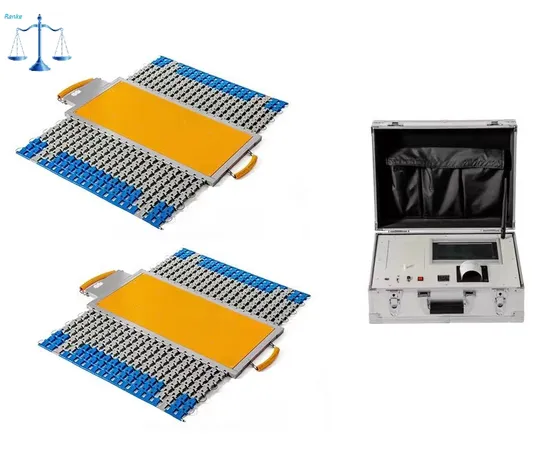

Ranke002 Axle Scale Cantilever Beam Weighing Pad with N+Gauge for Easy Handling

Product Description

Product Description* Weighing Range: Wheel Weight: ≤20 tons ; Axle Weight: ≤40 tons ; Gross Vehicle Weight: ≤1000 tons
* Weighing Mode: Dynamic and Static Dual Use
* Dynamic Comprehensive Error: ±3.0% (at ≤5 km/h constant speed)
* Recommended Driving Speed: 3-5 kilometers/hour
* Product Weight: Weighing Platform: 30 Kg (each) ;Instrument: 9 Kg
* Product Dimensions: Weighing Platform Size: 800×380×23 mm ;Instrument Size: 410×305×190 mm
*Waterproof and Dustproof Rating: Wireless Weighing Scale Platform IP67 ;Wireless Instrument IP65
*Equipment Storage Conditions: Temperature Range: -30 to +80ºC ; Relative Humidity: <90% RH
*Each weighing platform is calibrated separately, featuring 10-point correction, significantly enhancing product accuracy.
*The instrument is equipped with a 7-inch large LCD touch display, aesthetically pleasing and easy to operate. It has a powerful storage function, capable of storing 10,000 test data entries.
* Utilizes ultra-high frequency digital wireless transmission technology, completely avoiding the risk of lead breakage, greatly improving the system's anti-interference capability, making it more convenient for customers to use.
*The instrument provides vehicle speed display (unit: kilometers/hour).
*Features date display, vehicle number and ticket number input, and battery level monitoring indicators for both the instrument and the two weighing platforms.
*Employs zero-point floating technology and zero-point tracking technology to completely eliminate zero-point drift.
*Allows selection of different working modes: Traffic Mode, Road Administration Mode, Comprehensive Mode.
*The instrument includes a micro high-speed dot matrix printer, capable of printing time, date, vehicle number, ticket number, axle weight, axle group weight, total weight, overload value, and monitoring unit data, which can serve as enforcement evidence.
*Uses a standard RS-232 interface for easy connection to a computer.
*Comes with an AC charger and a vehicle-mounted charger, compatible with both AC220V and DC12V vehicle power charging, featuring a built-in high-capacity rechargeable battery that can perform hundreds of tests on a single charge.Product Parameters
---------Box-type Instrument Specifications
*This device features a 8-inch large color LCD touchscreen display with an elegant design, simple operation, and comprehensive retrieval and statistical functions. It displays complete vehicle information on a single screen. *It utilizes digital wireless transmission, completely eliminating the risk of lead wires being crushed, making it more convenient for customers to use. *The ultra-high carrier frequency wireless transmission technology greatly improves the system's anti-interference ability, providing technical support for the system's dynamic measurement accuracy. *It can upload weighing data to the server via a wireless network. *It has time and date display, vehicle number and ticket number input, instrument and weighing platform battery power monitoring indicators, etc. *It adopts floating zero technology and zero tracking technology to completely eliminate zero drift. *The digital guided menu operation is simple and clear. The instrument is equipped with a high-speed micro thermal printer that can print time, date, record number, ticket number, wheel weight, axle weight, and total weight. *It uses a standard RS-485 interface for convenient connection to a computer. *Without obstacles, the effective signal receiving distance is 50 meters, and with obstacles, the effective receiving distance is 30 meters. *It is equipped with AC/DC chargers and a car charger, with a built-in high- capacity battery that can maintain operation for more than 40 hours after a single charge.Company Workshops
