China Manufacturer OEM ODM Domestic Air Source Water Heater Tuya WiFi Heat Pump Controller Control Board PCBA

Product Description

Product Description RBJY0000-0570N002 heat pump controller for digital thermostat controller 1. Designed for: domestic heat pump water heater,
2. Suitable for: all in one heat pump or split type heat pump. 3. Air source and water source are optional.4. Can be controlled remotely via mobile APP.
5. Single compressor control , strongly system protection , EMC certificate.
The biggest advantage of CHICO is our ability to customize products for our customers to meet their diverse requirements. Because we have experience in R&D and manufacture of heat pump controller for more than 19 years. Our chief engineer had 20 year thermostat developing experience. Therfore, we are mainly exporting OEM/ODM services.
Our heat pump control board are suitable for home and commercial hwater heater machines, pool machines, air-conditioning cooling and heating, chiller,and so on. Different application may need different technical data, please send us an inquiry with specific requirements, we will contact you immediately. https://gdchico.en.made-in-china.com/product-list-1.html Product Parameters

Measuring range		-30°C~99°C
Controlling range		-30°C~99°C;
Accuracy		-30°C~50°C,±1°C±0.5dig; others, ±2°C±0.5dig
Mounting size		110×90×35mm
Power supply		220±10%(VAC), 50/60Hz
Power consumption		<12W
Storage temperature		-25°C~50°C
Senor type		NTC(5KΩ/25°C,B value 3470K;50K/25°C, B value 3490K)
Relay output capacity	Compressor	20A/250VAC
	Cycle water pump	10A/250VAC
	Others	5A/250VAC

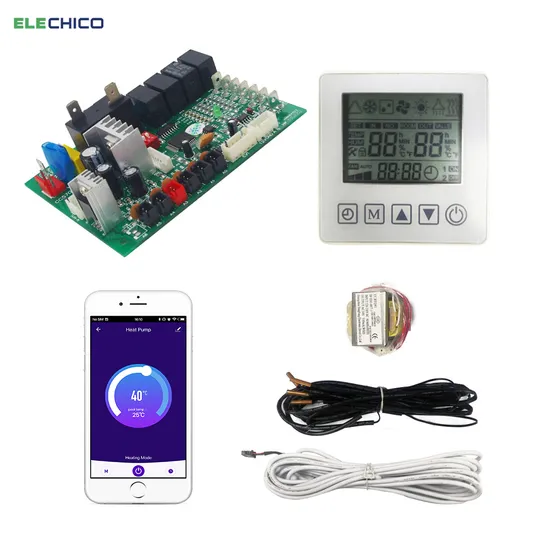

Product list		Mainboard(1pcs)
		LCD display(1pcs)
		Connect wire(1pcs)
		Transformer(1pcs)
		Temp. sensor(7pcs)

Product Features

1	Touch key LCD display , quick parameter setting, easy operation
2	Intelligent defrost control mode
3	Auto restart function, 24 hour cycle Timing ON/OFF function
4	EEV control function
5	Working modes: heating mode, cooling mode, Energy-saving mode
6	Five way control output:	Compressor	Cycle water pump	Fan motor
		Electrical heater	4 way valve	-
7	Seven way sensor input:	Water tank temp. sensor	Outlet water temp. sensor	Ambient temp. sensor
		Evaporator temp. sensor	Exhaust temp. sensor	Suction temp. sensor
		Outlet temp. sensor of ground source
8	Four way switch input:	Compressor high pressure switch	Compressor low pressure switch	Water flow switch
		Phase switch
