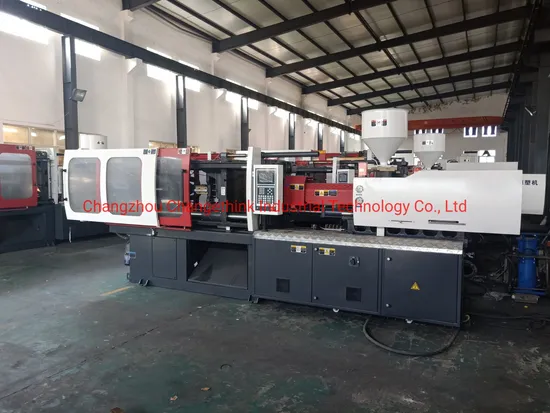

Lty-900 Servo Plastic Injection Molding Machine for PP PE Material
| US$18,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
LTY-900
Type
Plastic Product Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Transport Package
Wrap Film Packing Into The Container
Specification
90T
Trademark
LOYALTY
Origin
China
HS Code
8477101090
Production Capacity
1000sets/Years
Product Description
| LTY900 | |||||
| A | B | C | D | ||
| INJECTION UNIT | |||||
| SCREW DIAMETER | mm | 30 | 32 | 35 | 38 |
| SCREW L/D RATIO | L/D | 23.5 | 22 | 20.1 | 18.5 |
| SHOT VOLUME(THEORETICAL) | cm3 | 117 | 133 | 158 | 187 |
| INJECTION WEIGHT(PS) | g | 106 | 121 | 144 | 170 |
| INJECTION RATE | g/s | 71 | 81 | 97 | 115 |
| INJECTION PRESSURE | MPa | 230 | 203 | 170 | 144 |
| SCREW SPEED | rpm | 240 | |||
| CLAMPING UNIT | |||||
| CLAMP FORCE | kN | 900 | |||
| OPEN STROKE | mm | 320 | |||
| SPACE BETWEEN TIE BARS(W*H) | mm | 360x360 | |||
| MAX.MOULD HEIGHT | mm | 350 | |||
| MIN.MOULD HEIGHT | mm | 150 | |||
| EJECTOR STROKE | mm | 90 | |||
| EJECTOR FORCE | kN | 30 | |||
| OTHER | |||||
| MAX.PUMP PRESSURE | MPa | 16 | |||
| PUMP MOTOR POWER | kW | 11 | |||
| HEATING POWER | kW | 7.55 | |||
| MACHINE DIMENSION(L*W*H) | m | 3.81x1.19x1.79 | |||
| OILTANK CUBAGE | L | 180 | |||
| MACHINE WEIGHT | t | 2.9 | |||
