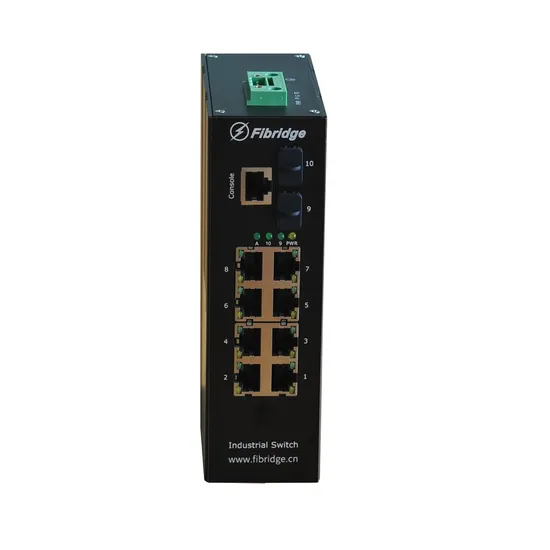

Fibridge DIN-Rail 2-Port 1000m Fx SFP + 8-Port 1000m Tx Industrial Ethernet Switch Network Switch OEM

Product Description

Product Description Fibridge F6-8GT2GX series network industrial switch is a high-performance Ethernet access equipment developed by Beijing Fibridge. It has 8* 10/100/1000 Mbps Ethernet interfaces and 2* 1000 Mbps optical ports.
The device is built-in power module, providing 220V AC input or 12V DC input options. Poe+ function is optional. The PoE+ product provides 220VAC or DC48 - 56V power supplies for options.
The device operates at a temperature of -40ºC~+85ºC Range and a humidity of %10~%90(No condensation).The F6 series is compact desktop design, small size, light weight, easy to place in desktop or cabinet.
Product Features
Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3at/802.3af/802.1p store-and-forward
Meet the requirements of reliable work in different environment
Support electrical port auto adaptable
Support flow control;
Support PoE optional
Support overload protection;
Support Reverse-link protection
Support optical port hot plug
Level of protection:IP40
Modular design makes the product more reliable and flexible
ISO9000 certified
Products pass testing of the Ministry of Public Security
Obtain network qualification certificate Detailed Photos

Product Parameters

Network Characteristics
Ethernet Protocol	Support IEEE802.3/802.3u/802.3x/802.3Z/802.3AB store-and-forward
Flow Control	IEEE802.3x flow control, pressure flow control
Network Interface	OPT: 1000MBase-FX Single/multimode SC/FC/SFP ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLAN	N/A
MAC Addresses	4K
Jumbo Frame	Max size 9216
Cache	N/A
Packet Buffer	20Gbps
Packet Forwarding Rate	14.88Mpps
Management	N/A
Optical Characteristics
Optical Interface	SC/FC/SFP(Optional)
Fiber Core Count	Single / Dual core transmission
Wavelength	1310nm/1550nm(850nm)
Fiber Mode	Single Mode / Multimode
Environmental Characteristics
Temperature & Humidity	Working temperature: -40ºC~85ºC Storage temperature:-40ºC~85ºC Working humidity:10%~90% RH No condensation Storage humidity:5%~90% RH No condensation
Power	AC 100-240V/50-60Hz 260W embedded switch power supply DC48~56V 260W external DC power(PoE) DC12V 1A external DC power(Not PoE)
MTBF	≥100000 hours
Mechanical Characteristics
Structural Dimension	163× 122× 52mm
Product Weight	0.8kg

Ordering Information

Model	Ports	Management
F6-8GT2GX	8*IEEE802.3at/af standard PoE Ports 2*1000MBase-FX SFP optical ports	None
F6-8GTP2GX	8*IEEE802.3at/af standard PoE Ports 2*1000MBase-FX SFP optical ports	None

Business Terms Price is FOB Beijing, 3 years warranty.
Price doesn't include SFP modules.
About Fibridge Established in 1995; 28 years' experience tells our reliability and high reputation. Full product series, including Industrial Switch, optic telecommunication and Video surveillance series. Products have been exported to more than 110 countries. Successful application of Industrial switch in Railway, Metro, Smart city, Highspeed road, etc.
