Full Automatic Chicken House Poultry Farm Feeding Equipment for Broiler

Product Description

Good Service for Project
Competitive service for chicken house poultry farm equipment
U Best Husbandry equipment Co., Ltd adopt advanced European and US technology in environmental ventilation concept,undertakes to design large & medium farm project and old farm renovation project. We will provide customized design and solutions continuously to satisfy your all requirements.
1. Chicken Farm Equipment: produce and supply first-class Quality poultry equipment with Good Price;
2. Poultry House: select location, design and construction preparation guidance;
3. Layout Drawing: make layout drawing of our equipment to guide you build house and install equipment;
4. Poultry Feeding Equipment Installation: We send our engineer to your farm for guide of equipment installation;
5. Training: we can train your workers to operate poultry equipment and raise poultry;
6. After-sales service: free consultancy and prompt reply to questions from clients.

Product Description

Item	Description	Item	Description
01	Main Feed Line (Feed Storage)	06	Environment Control System
02	Automatic Pan Feeding Line	07	Heating System (Optional)
03	Automatic Nipple Drinking Line	08	Fogger Spraying and Disinfection System (Optional)
04	Ventilation System	09	Curtain for Two Side Walls (Optional)
05	Cooling Pad System	10	Plastic Slat Floor (Optional)

Detailed parameters
Detailed parameters of chicken farm poultry feeding equipment
1.Main feeding line system
By this system, poultry farm chicken feed can be conveyed from the silo or manpower hopper into each feeding line in your chicken farm.
Silo /manpower hopper is the beginning of main feed line.
There is a feed sensor at the end of main feed line which controls motor on and off to achieve automatic feed delivery.
Feeding capacity: 1400KG / h, Maximum feeding length:60m.
Radius of bending pipe: R1500 (inclinable angle: 30 degrees).
Main feed line auger: import from South Africa
Feed level sensor: import from Germany IFM

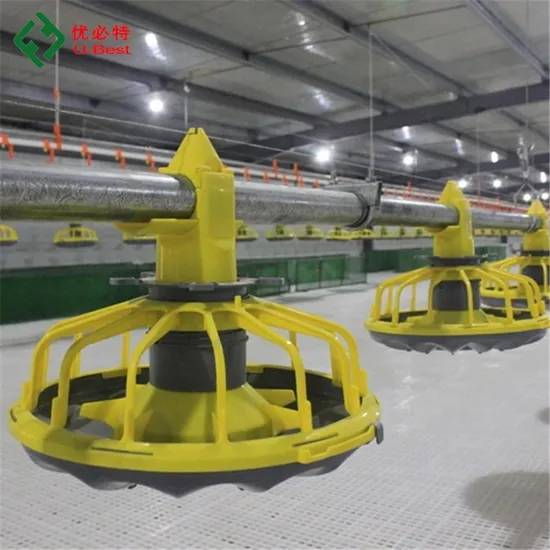

2.Pan feeding line system
Covey feed from vice hopper into each feed pan automatically.
Taiwan Brand driving motor;
Hot-dip galvanized vice hopper;
Pan feeding line with South Africa Spring Auger and Germany Sensor;
Suspension and lifting system convenient to adjust the feeding line height by winch.

3. Nipple drinking line system
This system can provide fresh and clean water for poultry which is crucial for the growth of poultry. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easily.
Bigdutchman/Plasson/Lubing type drinker for choice.
Water front system;
Water pipe with nipple drinker and drip cup;
Pressure regulator and water-level display;
4. Ventilation system
This system controls climate conditions, fresh air, humidity and temperature in poultry shed. It is vital for growing birds, including air inlets and ventilation fan.
1) Air Inlet
High quality engineering material ABS production, high strength, strong anti-aging, can be directly cleaned with high pressure cleaner.
2) Ventilation Fan
24'' and 36'' fans are used for ventilation to provide fresh air to the poultry house.
50'' fans equipped with cooling pads to cool the house.
Box fan, Cone fan, Fiberglass cone fan for your choice.
5.Cooling pad system Cooling pad and fan, the longitudinal ventilation and cooling combination is the most economic and effective summer cooling system for poultry house.
Color: black, yellow, green, red, etc;
Thickness: 100mm, 150mm; Height: 1660mm, 1960mm, 2160mm (with frame);1500mm, 1800mm, 2000mm(without frame)
Frame: Aluminium frame high strength, good corrosion resistance, even water distribution, compact structure, beautiful and practical. Galvanized steel frame for your option, lower price than aluminium frame
6.Automatic Climate control system
This system saves labors and resources under the condition of assuring a optimum growth environment for poultry chickens. Environment controller along with temperature is imported from Agrologic in Israel, which can set an optimum working mode according to the local climate and raising environment.
The Most Advanced Control System not only has the above function, but also could be done to do chicken feed weighing/chicks weighing/connecting to computer or personal phone.
7. Heating system (Heater)
Heating poultry house when it is needed to satisfy the temperature demand of chickens at different growth stage. Poultry gas space heater, diesel tank heater, infrared gas brooder and hot-blast heater for your choice.

Certifications
We have ISO, Soncap and CE Certificate for chicken house poultry farm equipment.
FAQ
1. Q: I need a complete set poultry farming equipment and also need a best price, what should I do?

A: pls let us know:
1) Poultry House Size (length x width x height).
2) If for Broiler Chicken, Quantity and Final Weight to Sell in Market.
3) If for Breeder or Layer, Rearing Density or Target Breeder/Layer Quantity(Quantity of Female and Male).
4) Maximum and Minimum Temperature of Farm Location.
5) Poultry House Type: Close type poultry house of two side bricks building wall with 36" fans and air inlets,
or Open type poultry house of using curtain in two sides.

2. Q: What's the material of poultry feeder pan and feeder pipe?

A: the material of feeder pan is 100% PP.
the material of feeder pipe is galvanized pipe.

3. Q: How long is the life of your poultry farm equipment?
A: more than 15 Years.

4. Q: Do you have any certificate?
A: CE/ ISO/ PC Certification By SGS/ Soncap/ SASO.

5. Q: Sample available?
A: Yes. but the client pay for the freight fee.
