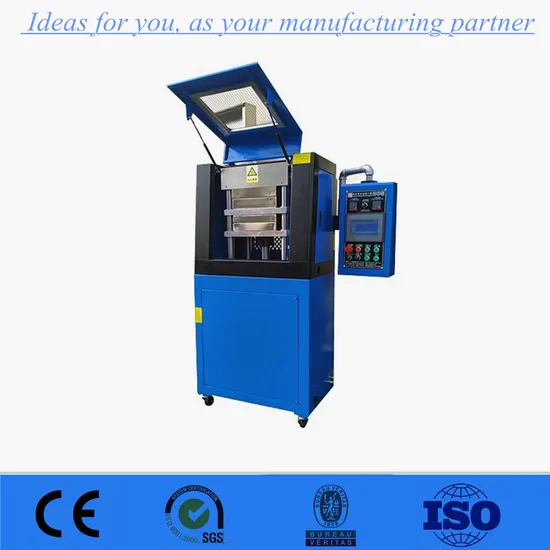

C-China High Quality Hot Press Plate 20 Ton for Laboratory

Product Description

China high quality hot press plate 20 ton for laboratory Product DescriptionHot press plate for laboratory Mainly used in rubber and its products, plastics and its products, polyolefin, PVC, film, coil, profile production and polymer blending, pigments, masterbatch, stabilizer, stabilizer and other industries. Its main use is to test raw materials After molding, its physical properties change and contrast. Such as: color dispersion, light transmittance, glossiness of the material surface, presence or absence of black spots, its strength, plasticity, hardness, etc. after adding auxiliary materials.
Product Parameters

capacity	10~50ton ( Option )
Temp. Range	Room temp. ~300ºC
Temp. Controller	LED Indicator,press key set input, the value indicate output
Timer	LED display,time range 0.1S~99min~9.9hr
Heating type	Electrical Heating module
Hot pressure plate	300×300mm ( can be customized )
Cold pressure plate	300×300mm ( can be customized )
Distance of pressure plate	100mm
Pressure material	SKD chromium-molybdenum alloy
Pressure surface	Mirror chrome plated
Cooling temperature scope	Room temp. ~+5ºC
Cooling type	Tap water cooling/compressor cooling water(optional)
Oil pressure system	The proportion hydraulic pressure current capacity loop circuit control
	system, the GPY oil pump driver high performance electroencephalographic
	matching high accuracy non resistance piston of oil cylinder carry
	out constant speed rate control mode, can p reelection one, two
	times pressure and time.
Oil cylinder stroke	Max 200mm
Oil cylinder speed	11mm/s
Pressure gauge	0~350kg/sq.cm
power	10.6HP
Dimension W×D×H	1000×500×1500 mm
Power supply	AC380V,20A
Weight	About 658kg

Hot press plate for laboratory Use hig temperature SKD steel plate with hardness HRC50-60
The production capacity is 10-50tons
3Pressure plates can be customized
Vulcanization thickness<=6mmHot press plate for laboratory Automatic induction Door
High safety factor
Close to continue running, open to stop runningHot press plate for laboratory PLC Touch Screen Controller
Can be programmable set the parameter
Can be folded and can save shipping freight charge
Packaging & Shipping
Company ProfileQingdao Evertech Industry Co., Ltd. is a professional pressure vessel designer, manufacturer and exporter. We have manufacturing licenses for ASME U, ASME U2,NB,PED, D1, D2 and A2 pressure vessels. Composed of more than 20 senior experts and professional engineers, the research and development team, with more than 20 years of professional experience, is committed to product design, development and program optimization, and can provide high-quality solutions according to users' requirements in different operating conditions. Company has cover an area of 70000 manufacturing base and 15000 modern manufacturing plants, can provide customers both at home and abroad with composite autoclave, high pressure autoclave, high pressure reactor, AAC autoclave, deaerator, pouring tank pressure vessel products such as more than 800 sets, pressure vessel head more than 20000 sets high quality products and services, won widespread praise.
FAQQ: Are your company a trading one or a factory ?
A: We have our own factory and we have also register a trading company for more options (in order to make the business more simple) for more than 18 years focusing on test instruments field and 15 years exporting experience. As one of the toppest supplier in Qingdao, OEM/ODM is warmly welcome from all of you as long as you confirm us with your requirement.
Q: How to choose the most suitable products?
A: Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
Q: What's the delivery term?
A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 10-15 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: How about your warranty?
A: Generally, our warranty is two years. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: How to install and use the product?
A:About the machine you grt from us, we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
Our serviceDuring the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Order process:
We offer below business term:

Accepted Delivery Terms	FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency	USD, EUR, HKD, CNY
Accepted Payment Type	T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port	Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
