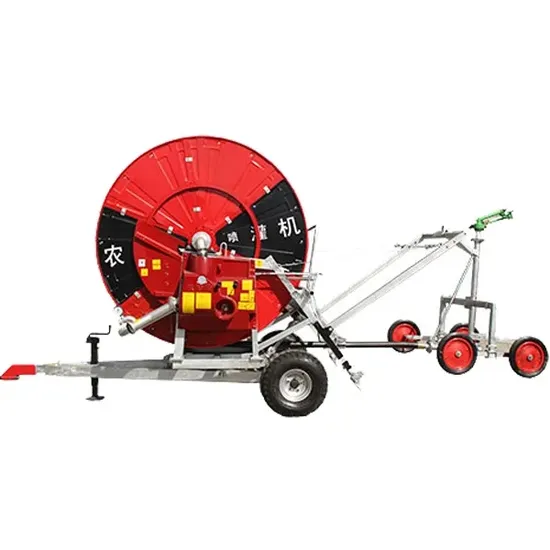

Durable Agricultural Hose Reel Irrigator with Boom Sprinkler System

Product Description

Product Description

Product application:

Irrigation farm sprinkler hose machine irrigation farm sprinkler hose was pulled by tractor engine reel irrigation center pivot irrigation/ Chinese agricultural engines/farm irrigation system mobile . Irrigation JP machines is an auto driven by a water turbine propelled machinery. It enters the water pressure of the water through the turbine, the kinetic energy of the use of water-driven water tubine rotation.Multifunction device by rotating water turbine gearbox driven winch rotation,drag the PE pipe nozzles to achieve uniform vehicel recovery .while pressure is transmitted to the PE pipe water into the nozzle to achieve nornal spray nozzle,It mainly consists of the chassis ,rack,winch,PE pipes,automatic control devices,water turbine drives,gearboxes,car nozzle guide sections devices,security devices and other components.Simple structure,high degree of automation,adaptable,easy to operate and multi-speed,is one of China's national conditions suitable for water-saving irrigation equipment ideal,single nozzle irriagtion machine mainly used in the indicator over the atomization low crop.used center pivot irrigation Product picture

Product pictures:

Product Parameters

Main features:

Specifacation 1.8JP75-300 irrigation machine with spry gun 2.Pipe diameter:75mm 3.Pipe lenght:300m Advantage: 1.This kind of machine is with high irrigation efficiency, low the labor tension, save water, suitable for middle and small farm to adopt. 2.It has simple structure, high automatical level, adaptive range is wide.
Detailed Photos

Details & parts picuters:

Name: Winch recycle power

Adopts choking stream type water turbine driving, instead of side impact type water turbine structure, guarantee normal working under the lower water pressure(0.4Mpa); its working theory is high pressure water flow vertical impacting the impeller blade, water flow get the utmost of use, producing strong driving force, comparing with the side impacting type water turbine, in the same water pressure, the driving force can enhance 30%, spraying radius can enlarge 30% distance.

Name: Reduction gear box

Adopts 6 gears structure design(all is 2 gears in this business line), recycling speed adjusting range within 4-65m/h, meet various crops watering quantity; under the same power condition, 6 gears reduction gear box has smaller resistance than the 2 gears gear box, equivalently adding at least 20% recycling power.

Name: Sprinkler wagon lifting equipment

Sprinkler wagon recycles to the main body, handing the lifting equipment can rise the sprinkler wagon, heighten sprinkler wagon walking wheels ground clearance, it is convenient for the sprinkler's movement and transportation; avoiding the walking wheels mop the ground during the machine is moving on some ditches and slops.

Name: Domestic vertical swing arm spraying guns

Jet distance during spraying, strong wind resistance,guarantee the users can water the fields under the different weather condition.

Name: Transmission mode

Reduction gear box transmits power to winch is gear transmission, comparing with the chain transmission mode, gear transmission is more stable, without the problems of chain falling off, breaking or other situation.

Name: Left and right supported feet

Adopts spiral vice-landing leg and lengthen pipe combine design, easy operation,fast, and convenient; powerful supporting, guarantee the main body's stability when tract the sprinkler wagon.

Name: Host walking tire

Big size with 10-12 tire, powerful carrying capacity and walking ability ,durable in use, reliable quality.

Name: PE water pipe

Korea imported raw material, carrying water pressure is 1.6Mpa, reliable quality, weather resistance, maturing, using life is more than 15 years.

Name: Host water entry

Adopts left and right side design, more convenient to link with the water delivery soft belt, avoiding the water delivery soft belt appears bend so that affects the passing ability of the high pressure water.
Packaging & Shipping

Packing & Delivery:

Size	40'HQ ( 2 units)
Weight	4,690.00KGS
Packaging Details	PACKAGES/4,690.00KGS/52.000CBM
