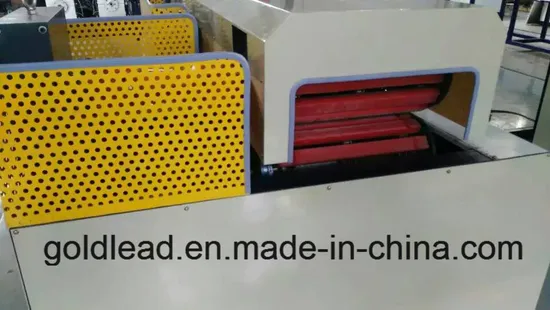

FRP Caterpillar Type Pultrusion Machine (BLG-1811)
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
BLG-1811
Automatic Production Line
Cutting Operation
Certification
ISO, CE
Automation
Automation
Production Scope
Product Line
Pulling Force
4t-6t
Transport Package
as Customer′s Requirement
Specification
CE
Trademark
Gold Lead
Origin
Jinan
HS Code
84778000
Production Capacity
2-4 Units/Month
Product Description
| FRP caterpillar type pultrusion machine The machine includes: | |||
| Items | Description | Qty | Technical Data |
| 1 | Roving creels | 2pcs | a. Ivory paint, combined structure, easy accessibility b. Rolls capacity: 70-100 5 layers c. Dimension: 2000mm(L)x700mm(W)x2000mm(H) |
| 2 | Resin bath | 1pc | a.Capacity: 50kg b. Bath dimension: 1030mm(L)x720mm(W)x190mm(H) c. Dimension: 1110mm(L)x810mm(W)x900mm(H) d. Gross weight: 100kgs |
| 3 | Calibrating table | 1pc | a. Size of die table: 970mm(L)x910mm(W)x20mm(H) b. Length of die: 900mm c. Adjustable height of die table: 0-80mm d. Temperature control zones: 4 (max control power 20KW, heating plated customer made) e. Dimension: 4500mm(L)x1000mm(W)x1480mm(H) |
| 4 | Traction machine | 1pc | a. Power 1.1kW b. Traction brackets plane c. Traction length: 2000-4000mm d. Traction speed 0.1-1m/min e. Traction force 400kN f. Traction gommures length 215/500mm g. Traction mode: casement caterpillar type |
| 5 | Cutter | 1pc | a. Cutting power 2.2kW b. Dust collection power 2.2kW c. Max. cutting section size 200mmx85mm d. Rotation speed 2850r/min e. Blade diameter ∮450/∮50 f. Cutting mode manual/auto g. Cutting journey 700mm h. Dimension 1850mmx1250mmx1510mm |
| 6 | Creel for finished products | 1pc | a. Structure: roller type and square tube structure b. Standard configuration: platform type c. Dimension: 6000mm(L)x550mm(W)x900mm(H) |
| Main technical parameter | a. Center height 1000mm b. Total power (not including mould heating power) ≈4.1KW c. Air pressure 0.4-0.6Mpa d. Gas consumption ≈20L/min e. Dimension ≈28000x1300x1450mm | ||
| Equipment characteristic | a. The machine is designed according to the small section hollow profile; it had the features of steadily to operate and marked energy saving effect. b. The chain guide rail is UHMWPE, and the rail had strong wearability, it can prevent the products from polluting. c. Adopting wear resistant polyurethane press block, double strand chain. d. The whole open-shut model traction frame can effectively assure the traction force and the products with the same direction and it is convenience to adjust. e. The inverter is imported from Japan, Mitsubishi PLC is adopted in speed adjustment of the pulling device, realizing infinite speed variation. f. The machine can realize fix-length cutting. | ||
