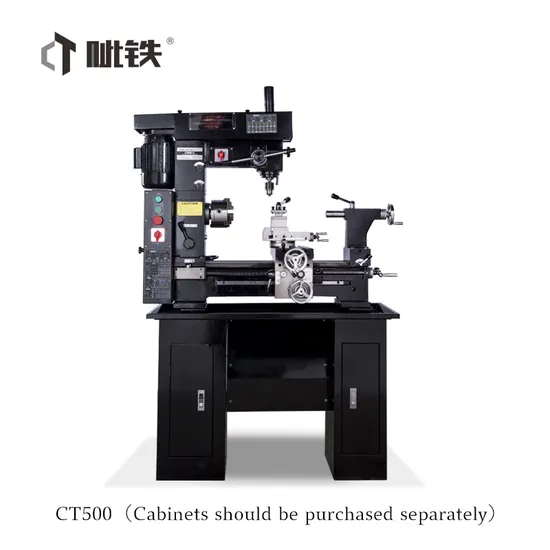

CT500 Combination Hot Sale Milling
Basic Info.
Model NO.
CT500
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-Tool Holder Manual Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
965*580*1460mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000
Product Description
| Turning-parameters | |
| Max. swing over bed | 420mm |
| Max. swing over cross slide | 150mm |
| Distance between centers | 500mm |
| Large carriage travel | 440mm |
| Middle carriage travel | 200mm |
| Spindle taper | MT4 |
| Spindle bore | 28mm |
| Max. travel of tail-stock sleeve | 70mm |
| Taper of tail-stock | MT3 |
| Threads metric pitches | 0.7~6mm |
| Threads inch pitches | 4~120TPI |
| Longitudinal feed / Lateral feed | 12 kinds |
| Spindle speed range | 160-1360RPM(7 steps) |
| Motor power | 0.75KW |
| Drilling and milling-parameters | |
| Max.Drilling capacity | 25mm |
| Max.milling capacity | 80mm |
| Max.vertical milling capacity | 16mm |
| Table size | 475mm×160mm |
| Spindle taper | MT3 |
| Spindle travel | 110mm |
| Distance from spindle to column guide rail | 285mm |
| Distance from spindle end to table surface | 306mm |
| Spindle speeds | 120~3000RPM (16steps) |
| Motor power | 0.75KW |
| Net weight/gross weight | 245/275KG |
| Overall dimensions | ≈1460x580x965mm |
| Package Size | ≈1430x580x1100mm |
