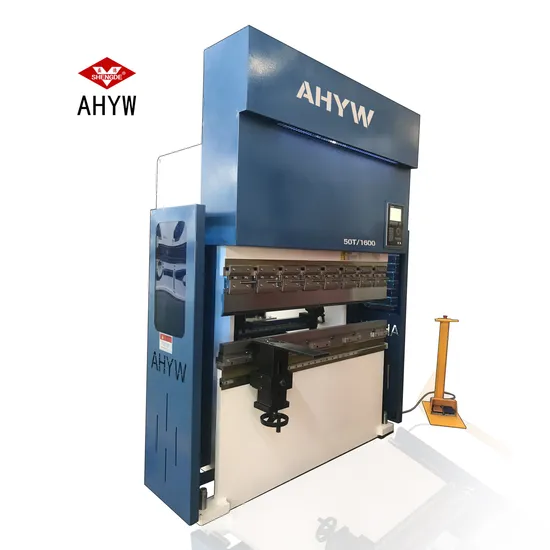

Ywb Series 50t/1600 Hydraulic CNC Press Brake Machine

Product Description

Products Description ANHUI YAWEI 50T1600 SMALL CNC BENDING MACHINE Press brake, also known as a brake press, is a machine tool for bending sheet and plate material, most commonly sheet metal. It forms predetermined bends by clamping the workpiece between a matching punch and die.
CNC press brake use for continues and complex working pieces manufacturing, advance in Efficiency. Basic features for AHYW mini cnc press brake machine • Advanced proportional valve controls the hydraulic cylinders to work synchronously and achieve precise repeatability performance
• Be capable of be controlled at random point within the stroke
• Repeatability precision +/-0.01mm,parallelism precision +/-0.02mm
• Deflection compensation table or crowning system for high precision
• Holland Delem DA52S CNC together with linear scale, Bosch-Rexroth valves, servo motors and other famous brand elements to ensure excellent performance Machine Block YWB series cnc press brake features a rigid frame for minimum deflection under the load. Machine welding is made by welding aparatus & welding robots. After the welding,we make stress relief process by vibration system. After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy. All referance surfaces and connection holes are machined. By all this processes machine frame sensivity is protected for a long life time. CNC Backgauge AHYW press brake are provided are equipped with a backgauge constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning. Details Images CNC Controller DELEM DA-52S Quick, one page programming
Hotkey navigation
Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
Crowning control
Tool/material/product library
USB, peripheral interfacing
Advanced Y-axis control 42Crmo Toolings The press brake dies are made by 42Crmo steel, and the temperature of heat treatment up to 42°, ensuring the die service life. Mechanical Quick Clamps Using mechanical fast clamp for upper dies, changing dies more convenient and safe. Front Plate Support Movable front material support on linear guider can move left and right by hand very easy. KACON Pedal Switch KACON pedal switch from South Korea improving the service life and operational sensitivity. France Schneider Electrics Stable France Schneider electrics, Panasonic Servo drive to improve the positioning accuracy of X, Y axis. Bosch Rexroth Hydraulic System Germany Bosch Rexroth integrated hydraulic valve block. Hydraulic transmission with high reliability, integrated hydraulic system can effectively alleviate problems caused by leakage of hydraulic fluid. Germany HAWE Oil Pump Using Germany HAWE Oil Pump guarantee the oil service life and reduce noise during working. Ball Screw & Linear Guide Adopting HIWIN ball screw and linear guide to improve the machine backguage accuracy. OPTIONAL Main Motor Servo Motor Italy DSP Laser Guarding System Mechanical Crowning Compensation R Axis Backgauge Up and Down CNC Controlled Sheet Follower DELEM Controller DA66T With 8+1 Axes Technical Parameters Production Process Packing&Shipping

Packaging
Size	(L) * (W) * (H)
Weight	T
Packaging Details	The normal package is water proof plastic package, the optional ply wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time. If container is too tigher, we will use pe film for packing or pack it according to customers special request.

Shipping
Means	by sea, by rail
Container	20' GP 40 'GP 40' HQ or OT RT
Shipping Details	According to the size and weight of machines, we will provide our customers with optimized shipping solution.
