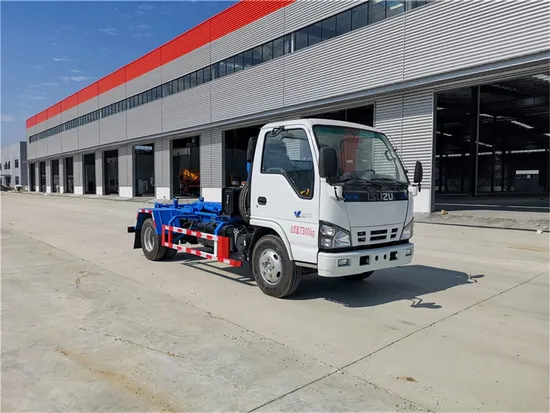

Isuzu 2ton 3ton 4 Ton Mini Hook Lift Trucks 2 Ton Hook Lift Arm Roll off Garbage Truck

Product Description

Product Description
Hook arm Garbage truck is also known as the carriage removable garbage truck. It is mainly used for municipal sanitation, property management, large factories, mines and other places to collect and carry all kinds of garbage. The hook arm garbage truck adopts the full hydraulic control operating system, garbage compartment and chassis can be completely separated, with reasonable structure, simple operation, stability, high efficiency, good sealing performance, convenient dumping and other advantages, can realize a car and multiple garbage compartment joint operation, circulation transportation, fully improve the transportation capacity of the vehicle
1. Hook Loader is used for the collection, transportation, unloading of urban bags, bulk domestic garbage operations of special vehicles.
2. Hook Loader is composed of chassis, boom's main cylinder, auxiliary frame, overturning frame, locking device, locking cylinder and multi-way reversing valve, ect. One end of the turning frame is connected with the auxiliary frame, the other end is provided with a movable boom, and a locking system is arranged in the middle; One end of the movable boom's cylinder is connected with the movable boom, the other end is connected with the auxiliary frame; Locking mechanism motion through the lock cylinder to dump the enclosure will be attached to the frame on the box body is an organic whole repeatedly with the flip and boom, out of form when the main cylinder and the cylinder piston tipping Angle, can lock the back of the oil cylinder to flip and attached to the frame lock, the use of the back of the main oil cylinder or make activity pull boom to underground dustbin drag to attach on the frame or back into the ground from the attached to the frame.
3.Underground garbage bin and garbage inside of which can be pulled together by hook loader to transport away at the same time, reducing the labor intensity of workers. The hook loader's collection and transportation mode is currently widely used in the world garbage collection and transportation mode, which can achieve one unit hook loader equips multiple containers, greatly reducing the equipment cost and space and so on; The functions of the special device on hook loader are all powered by the chassis's engine and realized manually or electronically by the hydraulic mechanism. The container of the hook loader adopts high quality carbon steel fully sealed welding structure, which has the advantages of high strength, light weight and no secondary pollution(but in this offer, only hook loader provided, cause garbage container will be supplied by client's site locally).
4. Structure: Hook boom driven by cylinder to flip. Garbage container will be loaded, unloaded and lifting through hook boom. Multi valves on truck can be operated as well as the button in cab. Two-direction balancing valve is installed on boom which can control garbage container's loading and unloading speed. All hydraulic components are adopted domestic popular brands products. Other design and manufacture followed by our factory's standards.
5. Hydraulic system assembly: Lifting, landing & sliding functions of hook
Description
--Garbage Bin with different size options of waste collection truck: 2cbm to 25cbm.
--Hydraulic Control Loading & Unloading System.
--Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
--High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
--Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
--Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.
Detailed Photos
(1) More than 20 years professional manufacturer experience.
(2) CCC ISO9001 agreement
(3) Be designed according to your requirements
(4) Small order can be accepted
(5) We accept 100% inspection, welcome to our factory at any time
(6) 12 month quality guarantee term
Above trucks are optional for various size and different truck chassis brands,such as 4x2, 4x4,6x4,6x6, 8x4,10x4,ISUZU,Sinotruck, FOTON, SHACAN, FAW, Dongfeng, CAMC, JMC, JAC and so on.
Product Parameters

Chassis	Chassis Brand	ISUZU
	Drive Type	4×2 left/right hand drive
	Wheelbase(mm)	3360
	Tire Specifications	7.50R16
	The Number of Tires	6pcs with one spare tire
	Dimensions(mm)	6000×2150×2500
	Air Conditioner	A/C
Brake System	Air break
Steering Gear	Power steering, hydraulic steering with power assistance
Gear box	5 Forwards &1 Reverse , manual operated
Max. driving speed(km/h)	100
Engine	Model	ISUZU
	Horsepower(HP)	120hp
	Emission standard	Euro 5
	Cylinder No.	4
	Fuel type	Diesel
Cabin	2 Passengers,single row

Certifications
Company Profile
COMPANY PROFILE ChengLi, The biggest Special Automobile Manufacturer in China
ChengLi Special Automobile Co.,Ltd, which is appointed by the Ministry of Industry and Information Technology of China,is a big manufacturer producing all kinds of special trucks.Factory is located in South Suburb ChengLi Automobile Industry Park,Suizhou City,‚HubeiProvince,China.Atthed end of 2018,Company's specialtrucktotal outputvalue exceeds $750 million,Cover an area of 2000,000 square meter and it has a staff of more than 9000.Annual production valve reached 100 thousand units.
ChengLi Special Automobile Co.,Ltd, is famous for special truck for virescence,entironmentclearness,oil,chemical industry and pressure vessel.lt has
trademark'CHENGLIWEI"and products code:CLW.our company cooperates with famous chassis manufacturers, such as
DONGFENG,ISUZU,FOTON,JAC,JMC,FAW,SINOTRUK,SHACMAN,HONGYAN C&C,CAMC and etc
Our company has independable export potence, and has a mount of clients overseas. Company has solid technology, flawless inspection, advanced
equipments, reliant quality and flexible modes of operation. What's more,We obtained IS09001,1S014001,OHSAS18001 andCCC certification (China Compulsory Certification) ‚ASME certification,ADR certificationand other certifications that exported need.
