Recycled Brown Kraft Paper Roll Recycling Making Machine Supplier in China

Product Description

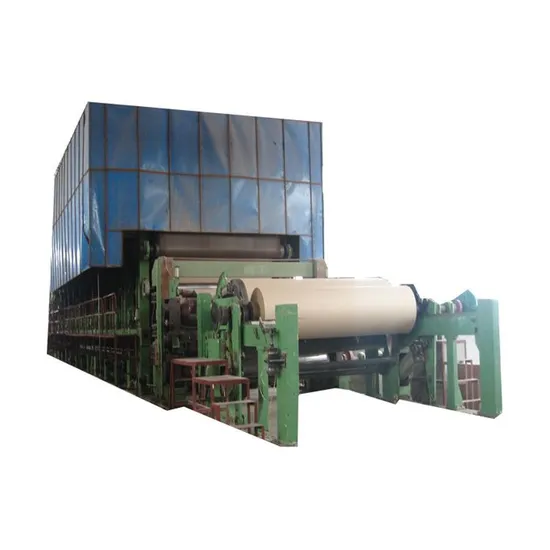

Recycled Brown Kraft Paper Roll Recycling Making Machine Supplier in China 1760mm Kraft Paper Production Line
Part one: The basic technical parameter

Item: 1760Kraft Paper Making Machine
Output paper: Kraft paper, Corrugated paper
Gram weight(g/m²):80-250g/m²
Net paper width (mm): 1575mm

Design work speed (m/min):100m/min

Work speed (m/min): 50-80m/min
Daily capacity (t/d):15t/d
Drive way: AC variable frequency, section drive

Model design: Box structure, operation by left or right hand

Sizing way: Front Pulp

Matched felt: Normal Chemical fiber woven felt

Forming wire type: Copper wound-rotor

Structural layout: Monolayer

Power (v, HZ): 220, 380v/50~60HZ

Pneumatic medium: Compressed air, 0.6 MPa, level 3 industrial compressed air standards
Water quality standard: PH-7, total alkalinity(take CaCO3 as example, mg/L)≤350

Factory area: 200--250m²
Worker number: 4-6 worker/shift
Raw material: Rice straw, wheat straw, wood, waste paper, etc
Technological process (take waste paper as example)
Waste paper---Pulping---Screening---Pulp washing---Defibrination---Rescreen---Size mixing---Mixed pulp---Desander---upper wire---water absorption---Drying---Reeling---Slitting---Packing---Storage
Guangzhou Xin Yi Machinery Co., Ltd is specialized in the paper making machines and pulp making equipments.The main items as below:high speed Toilet paper machine,Napkin paper machine,Culture paper
machine,Industrial packaging paper machine,Yellow paper machine and specialty paper machine.During the
past thirty years production and sales,we have owned one excellent R&D department,as well as the good pre-sale service,aftersale technical support and strictly quality control system.Our products has been sold in the
most of the China,as well as the foreign country,such as,Vietnam,Mongolia,West Africa,South Africa,Brazil,
Uzbekistan,etc.Any questions,please feel free to contact us!
Below is finished product and production flow chart.
Loading the goods to container.
Instalation site
Material can be as below picture.
Customer visiting and placing order.
Guangzhou Xin Yi Machinery Co., Ltd is specialized in the paper making machines and pulp making equipments.The main items as below:high speed Toilet paper machine,Napkin paper machine,Culture paper
machine,Industrial packaging paper machine,Yellow paper machine and specialty paper machine.During the
past thirty years production and sales,we have owned one excellent R&D department,as well as the good pre-sale service,aftersale technical support and strictly quality control system.Our products has been sold in the
most of the China,as well as the foreign country,such as,Vietnam,Mongolia,West Africa,South Africa,Brazil,
Uzbekistan,etc.
Any questions,please feel free to contact us!
Thank you.
