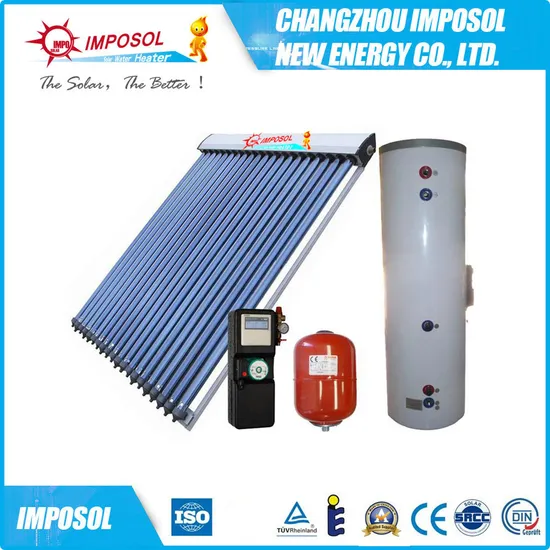

300L Vacuum Tube Stainless Steel Hot Water Heating Collector System
Basic Info.
Model NO.
solar panel hot water heating collector system
Pressure
Pressurized
Interior Material
Stainless Steel
Collector Components
Glass Vacuum Tube
Composition
Tank Insulation
Certification
CE, ISO9001, CCC
Solar Panel Hot Water Heating Collector
300L Vacuum Tube Stainless Steel Hot Water Heating
Solar Collector System Warranty
8 Years
Solar Collector System Use
Home
Solar Collector System Inner Tank
SUS304
Solar Collector System Tube Size
58*1800
Transport Package
Standard Carton
Specification
CE ISO SRCC SOLAR KEYMARK SGS
Trademark
imposol
Origin
Jiangsu
HS Code
8419901000
Production Capacity
7000 Per Month
Product Description
Product Description| No Coil Heat Exchanger ( Open Loop & Active & Direct System ) | |||||||
| Model | Solar Collector Unit | Solar Water Tank Unit | Pump Station Unit | Packing Volume | |||
| Model | Type | Capacity | Type | Model | Type | ||
| IPSV100(0) | 10 Tubes | Heat Pipe | 100L | Pressurized Open Loop No Coil | SR881 | Single line EPP Shell | 0.61 m³ |
| IPSV150(0) | 15 Tubes | 150L | 0.86 m³ | ||||
| IPSV200(0) | 20 Tubes | 200L | 1.07 m³ | ||||
| IPSV250(0) | 25 Tubes | 250L | 1.26 m³ | ||||
| IPSV300(0) | 30 Tubes | 300L | 1.56 m³ | ||||
| IPSV400(0) | 40 Tubes | 400L | 1.96 m³ | ||||
| IPSV500(0) | 50 Tubes | 500L | 2.37 m³ | ||||
| One Coil Heat Exchanger ( Closed Loop & Active & Indirect System ) | |||||||
| Model | Solar Collector Unit | Solar Water Tank Unit | Pump Station Unit | Packing Volume | |||
| Model | Type | Capacity | Type | Model | Type | ||
| IPSV100(1) | 10 Tubes | Heat Pipe | 100L | Pressurized Closed Loop One Coil | SR881 | Single line EPP Shell Expansion Tank | 0.61 m³ |
| IPSV150(1) | 15 Tubes | 150L | 0.86 m³ | ||||
| IPSV200(1) | 20 Tubes | 200L | 1.07 m³ | ||||
| IPSV250(1) | 25 Tubes | 250L | 1.26 m³ | ||||
| IPSV300(1) | 30 Tubes | 300L | 1.56 m³ | ||||
| IPSV400(1) | 40 Tubes | 400L | 1.96 m³ | ||||
| IPSV500(1) | 50 Tubes | 500L | 2.37 m³ | ||||
| Double Coil Heat Exchanger ( Closed Loop & Active & Indirect System ) | |||||||
| Model | Solar Collector Unit | Solar Water Tank Unit | Pump Station Unit | Packing Volume | |||
| Model | Type | Capacity | Type | Model | Type | ||
| IPSV100(2) | 10 Tubes | Heat Pipe | 100L | Pressurized Closed Loop Two Coils | SR881 | Single line EPP Shell Expansion Tank | 0.61 m³ |
| IPSV150(2) | 15 Tubes | 150L | 0.86 m³ | ||||
| IPSV200(2) | 20 Tubes | 200L | 1.07 m³ | ||||
| IPSV250(1) | 25 Tubes | 250L | 1.26 m³ | ||||
| IPSV300(2) | 30 Tubes | 300L | 1.56 m³ | ||||
| IPSV400(2) | 40 Tubes | 400L | 1.96 m³ | ||||
| IPSV500(2) | 50 Tubes | 500L | 2.37 m³ | ||||
Features :
Domestic hot water application , even commercial application.
100-600 Liters capacity , more choices.
5 years warranty, 20+ years lifespan.
Easy to install ,can be mounted on the flat or pitched roof .
Split system, forced pump circulation, beautiful appearance after installation .
Solar collector unit has higher performance in a cold climate .
SUS 304 food grade stainless steel solar water tank .
Single line pump station with Wilo or Shinhoo pump .
Special expansion tank for solar, suitable for limited use up to 130ºC.
factory
| Model | Capacity | Heat Pipe vacuum tube solar collector | Pump station | Expansion tank | Connection fittings | Loading quantity | ||
| Model | Quantity | 20GP | 40HQ | |||||
| IPSV100-NC/SC | 101L | IPRB A 581810 | 1 | SR881/882 SR961/962 SR971/972 SR981/982 | 5L | Copper tee air vent 22mm couple P/T valve Check valve | 46 | 11 |
| IPSV150-NC/SC | 150L | IPRB A 581815 | 1 | 8L | 33 | 79 | ||
| IPSV200-NC/SC/DC | 200L | IPRB A 581820 | 1 | 12L | 26 | 64 | ||
| IPSV250-NC/SC/DC | 250L | IPRB A 581825 | 1 | 12L | 22 | 54 | ||
| IPSV300-NC/SC/DC | 300L | IPRB A 581830 | 1 | 18L | 18 | 44 | ||
| IPSV400-NC/SC/DC | 400L | IPRB A 581820 | 2 | 18L | 14 | 35 | ||
| IPSV500-NC/SC/DC | 500L | IPRB A 581825 | 2 | 24L | 12 | 29 | ||
