Wholesale Disposable Medical-Use Infusion Set with 62mm Drip Chamber

Product Description

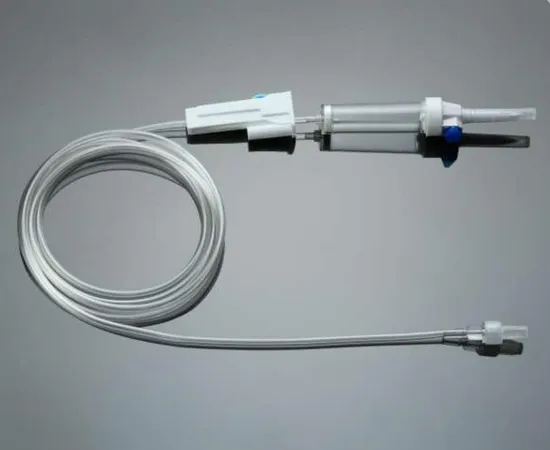

Medical-Use Infusion Set with 62mm Drip Chamber
Infusion Set for Single Use: Intended for human body infusion use under gravity feed, usually use together with intravenous needle and hypodermic needle, for single use. Product Description
Short Description: 1.Reference No. SMDIFS-001
2.Luer slip
3.Latex bulb
4.Tube Length: 150 cm
5.Sterile: EO GAS
6.Shelf life: 5 years
Product details:
Infusion Set for Single Use is composed with piercing device, air filter, outer conical fitting, drip chamber, tube, flud regulator, medicine injection component, medicine filter. In which tube is manufactured with medical grade sotf PVC by extrusion molding; plastic piercing device, outer conical fitting, medicine filter, metal piercing device hub is manufactured with ABS by injection molding, flux regulator is manufactured with medical grade PE by injection molding; medicine filter membrane and air filter membrane are manufactured with fiber; drip chamber is manufactured with medical grade PVC by injection molding; tube and drip chamber are transparent.

Test item		Standard
Physical performance	Micro particle contamination	In 200ml elusion fluid, 15-25um particles shall not more than 1 pc/ml, >25um particles shall not more than 0.5 pcs/ml.
	Airproof	No air leakage.
	Connection intensity	Shall can endure not less than 15N static pull for 15s.
	Piercing device	Shall can pierce unpierced piston, no scrap falling.
	Air inlet device	Shall have air filter, the filtration rate of >0.5um particle in air shall not less than 90%.
	Soft tube	Transparent; length not less than 1250mm; wall thickness not less than 0.4mm, external diameter not less than 2.5mm.
	Medicine filter	Filtration rate not less than 80%
	Drip chamber and drip tube	Distance between tip of drip tube and drip chamber exit shall not less than 40mm; distance between drip tube and medicine filter shall not less than 20mm; distance between drip chamber inner wall and drip tube end external wall shall not less than 5mm; under 23±2ºC, flux is 50 drips /min±10 drips /min, 20 drips from drip tube or 60 drips distilled water shall be 1ml±0.1ml. drip chamber shall can introduce the medicine from infusion container into Infusion Set for Single Use by its elastics, the outer volume shall not less than 10mm, wall thickness average shall not less than 10mm.
	Flow regulator	Adjustment travel route not less than 30mm.
	Infusion flow rate	Under 1m static pressure, the Infusion Set for Single Use with 20 drips /min of drip tube, the output of NaCl solution in 10min shall not less than 1000ml; for the Infusion Set for Single Use with 60 drips /min drip tube, the output of NaCl solution in 40min shall not less than 1000ml
	Injection component	If there is such component, leakage of water shall not more than 1 drip.
	Outer conical fitting	There shall be a outer conical fitting on the end of soft tube which complying with ISO594-2.
	Protective cap	Protective cap shall protect piercing device.

Detailed Photos
More Products

Packaging & Shipping
FAQ
1. What is the minimum order quantity (MOQ) for this product?Answer: The MOQ depends on the specific product, typically ranging from 50000 to 100000 units. If you have special requirements, please contact our sales team to discuss.2. Is there stock available for the product, and do you support OEM branding?Answer: We do not hold product inventory; all items are produced based on actual customer orders. We support OEM branding; please contact our sales representative for specific requirements.3. How long is the production time?Answer: The standard production time is typically 35 days, depending on the order quantity and product type. For urgent needs, please contact us in advance to arrange production schedules accordingly.4. What shipping methods are available?Answer: We offer multiple shipping options, including express, air, and sea freight. You can select the method that best meets your delivery timeline and requirements.5. From which port do you ship?Answer: Our primary shipping ports are Shanghai and Ningbo in China. We also offer Qingdao and Guangzhou as additional port options. The final port selection depends on the specific order requirements.6. Do you provide samples?Answer: Yes, we offer samples for testing purposes. Please contact our sales representative for details regarding sample policies and fees.
