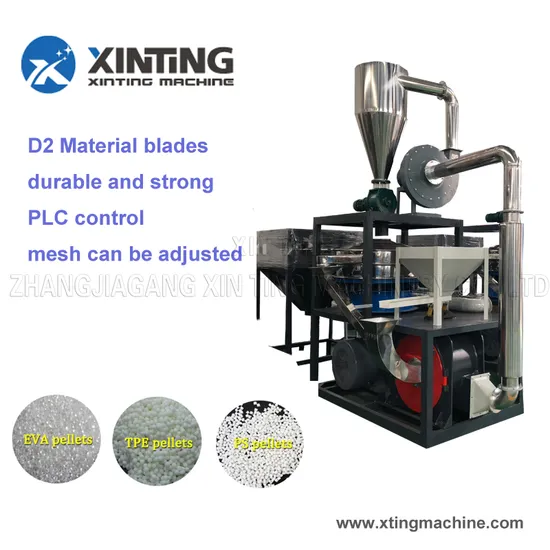

Disc Type EVA Shoe Sole Pulverizing Machine

Product Description

sole pulverizing machine
Description pvc pp pe eva plastic miller :
Features (1) Working part of the small powder grinder mill, high speed particles in the latter part of the tooth plate impact was crushed out by suction, while larger particles will continue to impact, crushing out after. This reduces the cutter load, improve the milling efficiency, and powder can be uniformly cooled.
(2) Low temperature is the main advantage of the small powder grinder mill. By mechanical equivalent of heat: 860 per hour, work is converted to kilocalories. The machine is outside the ventilation, the wind reached 50 m³/kw, from the inlet and outlet temperature difference, take away most of the heat. A small part of the heat from the water cooling solution.
Requirements: cooling water inlet temperature is not greater than 25 degrees, the outlet temperature of not more than 45 degrees, the summer increase in water flow due to lower temperature.
(3) Cabinet doors are equipped with covers and pipe joints seals, gaskets, make sure no dust escape. Discharge port located on fans, air vents dust bags with 16 holes to ensure the work environment clean, clean.
Technical Features:
1. Pulverizer can easy to grind all kinds Hard & Soft PVC into powder.
2. The dust collector is added to effectively reduce dust pollution.
3. The discharging of the main fan reduces labors intensity of operating workers.
4. The door cover of the host can be opened for convenience of maintenance and replacement of cutters.
5. The mill use the water and wind double cooling system ,Prevent bearing and other parts from overheating.
6. The powder mesh is adjustable(15-100mesh).
7. Easy installation and maintenance, just open the door to clean up.
8. Using Well-known brand accessories, such as SKF bearings and Siemens motors, can work for a long time, saving the trouble of changing accessories frequently.
9. With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.
Parameters for miller machine

Model	SMW-400	SMW-500	SMW-520	SMW-550	SMW-600
Milling chamber DIA:	Φ400	Φ500	Φ520	Φ550	Φ600
Rotor QTY	3	3	3	3	3
Main Speed RPM.	3800	3900	3900	3900	3900
Main motor power:	30KW	30KW	37KW	37KW	45KW
Close blower power	0.75kw	0.75KW	0.75KW	0.75KW	0.75KW
Blower power	2.2kw	2.2KW	3KW	3KW	4KW
Final powder size	12-120 micron	12-120 micron	12-120 micron	12-120 micron	12-120 micron
capacity	50-120kg/hr	150-200kg/hr	180-250kg/hr	200-300kg/hr	300-550kg/hr
Round Vibrating sieve	without	Customized	Customized	Customized	Customized
Dust collecting system	without	Customized	Customized	Customized	Customized
Cooling system	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling
Machine weight	850kgs	1200kgs	1250kgs	1300kgs	1550kgs
Dimension	2200*800*2100 (mm)	5900*1450*2900 (mm)
