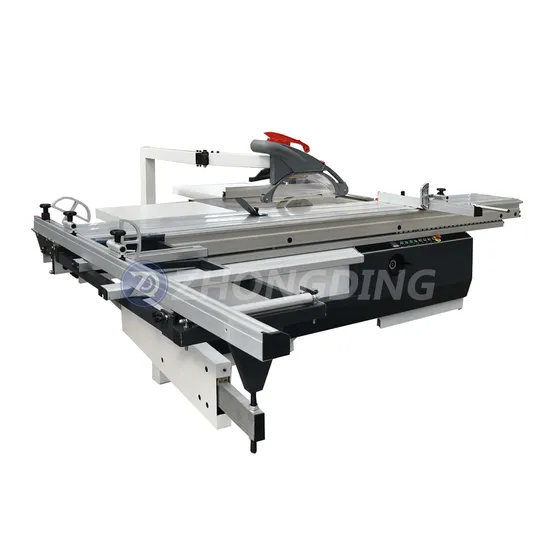

Professional CE Certified 3200mm Sliding Table Saw for Woodworking

Product Description

Technical Paremeters

ZD400T High precision sliding table saw

Dimension of sliding table	3200x415 mm
Gross cut capacity	3200 mm
Width of cut between saw blade and rip fence	1250 mm
Tilting saw group	0-45°
Diameter of main saw blade	400 mm
Max cutting height 90°/ 45°	120 mm
Speed of main saw spindle	3000/4000/5000 r.p.m
Main saw motor power	5.5 kw
Main spindle diameter	30 mm
Diameter of scoring saw blade	120 mm
Speed of scoring saw spindle	8000 r.p.m
Scoring saw motor power	1.1 kw
Scoring saw spindle diameter	22 mm
Overall dimension	3250x3150x900 mm

Our advantages:
Our products are of good quality and are also equipped with the best service. The company has a technical team with more than 10 years of experience to provide services. Before sales, we will provide a complete and professional introduction and quick question answers to solve all your questions. The sales process In the middle, the whole process of tracking production, ensuring the quality of the machine, and supervising the production according to customer requirements, providing information, after-sales, any non-human problems within two years of the machine, comprehensive after-sales guarantee, professional engineers 24 hours to guide installation, debugging, maintenance, Guarantee customers worry-free purchase and use.
Product Details

Motor:
#Power: 5.5kw+1.1kw
#100% Copper
# Aluminum Shells
#With overloading and overheating protection device.
#Use car belt as motor belt for longer lifetime

Sliding Table:
#Double layer extruded Aluminum profile,more rigid and strength.
# Euro style Steel bar sliding table,more precision and smoothly.

Control panel:
Humanized design and easy to operate control panel. Auto lifting of the main and scoring blades Digital indicator for angles.

Independent electric box:
#Electric box is dustproof, which can low rate of power failure.
#Top quality electric parts, more sensitive and longer lifetime.
#Motor matches overload and overheat protect function.

European style dust hood:
The saw blade protection allows the operator to visualize the panel while cutting and increases the dust extraction capacity

Saddle:
Exclusive design, Inner hole machining center is hole milling, sliding smoothly, mm level attach with fine-tuning function, time saving and labor saving when regulating, supporting 150*50 saddle, can cut 1300 big board.
Application
Main products
If there have any machines you are interested in ,please click the picture to check the details.
Sliding table saw Edge banding machine Cnc router

Planer thicknesser Brush sanding machine Atc cnc router
Company Profile

Qingdao Zhongding Machinery Co., Ltd. is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.
We are committed to providing one-stop service for factory production. Replying on the favorable geographical advantages of Qingdao Industrial Park. We have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as: polishing machines, panel machine, press machine etc, which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers.
About the payment,I should do the PI for you first,and it has the payment account number of our company, you need to pay a 30% deposit first,when we get the deposit,we will arrange the production of the machine,it takes 20 days. After the production is completed,I will send the pictures of the machine to you,next,you should pay the final payment,and we will arrange the delivery for you.
Exhibitions

Our customer feedback

FAQ
FAQ
Q1: ARE YOU A MANUFACTURER?
A1:Yes.We have 20 years manufacture and export exprience.
Q2: ABOUT THE MOQ
A2: 1 set, and we are OEM,I will give you the competitive price better than market.
Q3: MAY I BUY A SAMPLE?
A3: Of course ,sample order is welcome.
Q4: HOW CAN I PLACE A ORDER?
A4: Just give me your nice inquiry,l will do my best to assist you.
Q5: IF IWANT CHEAPER QUALITY, CAN YOU PRODUCE?
A5:Yes, just send us your quality details, such as the material, what cheaper partsinstead etc, we will do that as your request and calculate the price.
Q6: IF IORDER BIG QUANTITY, WHAT'S THE GOOD PRICE?
A6: Please send the details enquiry to us, such as the ltem Number, Quantity for eachitem, Quality request, Logo, Payment Terms, Transport method, Discharge place etc.We will make the accurate quotation to you as soon as possible.
