Kebu Petrol Small Crawler Crane Kb8.0 Spider Crane 8 Ton Portable Crane
Basic Info.
Model NO.
KB8.0
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Spider Lift
Carrying Capacity
Special Weight Level
Moves
Moving
Driven Type
AC
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Max Lifting Height
18m
Machine Weight
8300kg
Crane Arm Length
4.61m-16.5m
Transport Package
Nude
Specification
3520*1995*2500 mm
Trademark
EVANGEL
Origin
China
HS Code
8501109990
Production Capacity
500pieces/Month
Packaging & Delivery
Package Size
300.00cm * 320.00cm * 320.00cm
Package Gross Weight
20800.000kg
Product Description

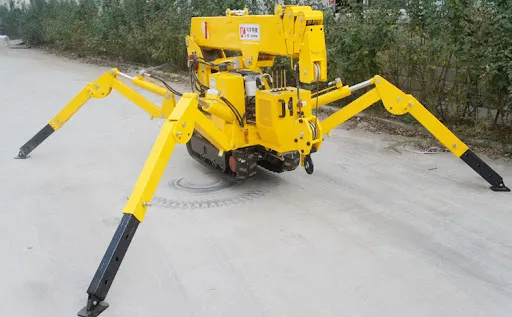

Product DescriptionChina Brand New 8 ton Mini Spider Crane KB8.0
INTRODUCTION:
Kb-8.0 miniature crawler crane, widely used in electrical equipment maintenance and installation of substation, mechanical and chemical workshop equipment maintenance and installation, glass curtain wall and other small space occasions.
FEATURE:
Compact body, hydraulic travel safety design can prevent mis-operation, adapt to rugged outdoor field, pentagon-type telescopic boom, remote control device energy saving and durable, torque limiter, to prevent overload operation
Parameter:
| Specifications | ||
| Model | KB8.0 | |
| Specification | 8Tx2.5m | |
| Maximum Working Radius | 15.7mx0.45T | |
| Maximum Ground Lifting Height | 18m | |
| Maximum Underground Lifting Height | - | |
| Winch Device | Hook Speed | 7m/min (6 fall) |
| Rope Type | e7.7mm x45m | |
| Telescopic System | Boom Type | Full automatic 5 section |
| Boom Length | 4.61m-16.5 m | |
| Up and Downs | Boom Angle/Time | 0° -80° /24.5sec |
| Slew System | Slew Angle/Time | 0° -360° (continuous) /40sec |
| Outrigger | Maximum Extended Dimensions | 5725mm x 5504mm |
| Traction system | Walking Way | Hydraulic motor driven |
| Walking Speed | 0-2.3km/h | |
| Ground Length x Width x2 | 2172mmx350mmx2 | |
| Grade Ability | 20° | |
| Ground Pressure | 51Kpa | |
| Safety Devices | Onekey leveling,Torque limiter,Height limiterx Crane outrigger sensorx Alarm device,Emergency button | |
| System Voltage | DC12V | |
| Diesel Engine (Optional) | Model | 3TNV70 |
| Displacement | 2.19L | |
| Maximum Output | 25.2KW | |
| Starting Method | Electric starting | |
| Fuel Tank Capacity | 45L | |
| Operating Temperature | -5° C-40° C | |
| Battery Capacity | 12V 45Ah | |
| Petrol Engine | Model | CH440 |
| Displacement | 429ml | |
| Maximum Output | 10.3kw | |
| Starting Method | Recoil start/Electric starting | |
| Fuel Tank Capacity | 7.4L | |
| Operating Temperature | -5° C-40° C | |
| Battery Capacity | 12V 45AH | |
| Electric Motor | Power Supply Voltage | (Standard) AC380v |
| Power | 4KW | |
| Remote Control | Type | BOX1.1 (Optional) |
| Operating range | 100m | |
| Water-proof Standards | IP67 | |
| Dimension | Length x Width x Height | 5000mmx1680mmx2180mm |
| Weight | Vehicle Weight | 7350Kg |
