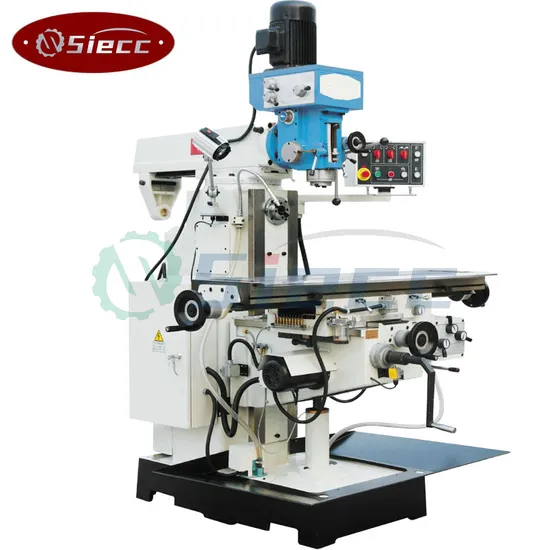

X6336wa Horizontal and Vertical Type Milling Machine with High Quality
| US$4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6336WA
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
Wooden Box Packaged
Specification
X6336
Trademark
SIECC
Origin
Jiangsu/China
Production Capacity
1000 Sets/Year
Product Description
The turret milling machine X6336WA is made of advanced cast iron, with high precision and long life after manual aging treatment.The lifting platform adopts rectangular guide rail, the contact surface is much, rigid foot.After high frequency processing and fine grinding, the sliding way is plastered, the motion precision and life are good.The main shaft of turret milling machine is made of chrome molybdenum alloy. It is equipped with precision Angle contact bearing. It is processed by tempering and fine grinding, with strong cutting force and high precision.| Item | X6336WA |
| Spindle taper | ISO40(V) ISO50(H) |
| Diameter of quill | 120mm |
| Distance from spindle to table | 135-585mm |
| Distance from horizontal spindle to table | 0-390mm |
| Distance from spindle to column | 200-700mm |
| Spindle speeds | (16steps )70-4660r.p.m.(V) |
| Spindle travel | (12steps)60-1800r.p.m(H) |
| Feeding of quill | 145mm |
| Max drilling capacity of auto-feeding | (3steps)0.04 0.08 0.15 |
| Head movement | 15mm |
| Table size | 45 degrees |
| Table travel(horizontal/cross/vertical) | 1370*360 |
| Feeding range of longitudinal cross travel | 1000*320*450 |
| X,Y-axis rapid feed speed | (8steps)22-555mm/min |
| Z-axis rapid feed speed | 1080mm/min |
| Z-axis motor power | 590mm/min |
| Max weight of workpiece | 1100W |
| T-slot number /width/distance | 500kg |
| Horse power for main motor | 3/18mm/70mm |
| X,Y axis driving motor | 5.5kw(V) 4.0kw(H) |
| Overall dimension | 750W |
| N.W./G.W. | 2220*1790*2360mm |
