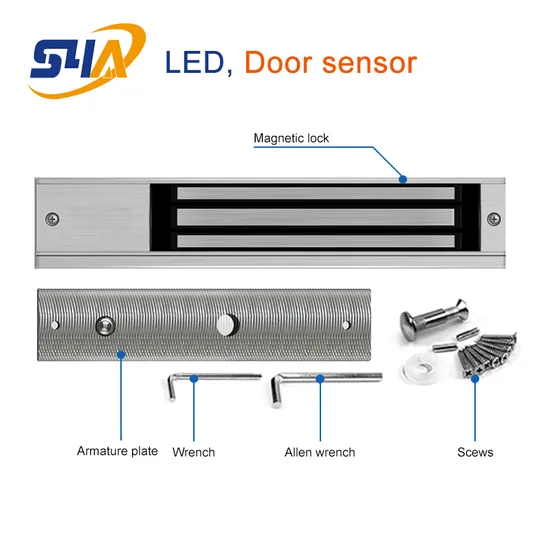

Single Door Electromagnetic Lock 280kg 600lbs with LED and Door Sensor
Basic Info.
Model NO.
EL-600SD
Application
Public Passage, Enterprise, Supermarket, Campus, Hospital, Parking, Warehouse, Hotel, Company, Garage, Community
Working Principle
Electronically Controlled Lock
Function
Fail -Safe
Type
Electromagnetic Lock
Plate
180lx38wx11h(mm)
Finishes for Shell
Anodized Aluminum Surface Texture Processing
Finishes for Magnetic
Zinc
Finishes for Armature
Zinc
Holding Force
280kg (600lbs)
Voltage
DC12V or DC24V (Adjustable)
Current Draw
12V/500mA 24V/250mA
Signal Output
Dry Contact, Max Rating of Contact Current 3A
Suitable Humidity
0~90%(Non-Condensing)
Weight
2kg
Transport Package
Standard Carton Box
Specification
250Lx48.5Wx25H(mm)
Trademark
S4A
Origin
China
HS Code
8301400000
Production Capacity
20000pieces Per Month
Product Description
| MINI Electromagnetic Lock | Embedded Electromagnetic Lock | |||||
| EL-100 | 60KG | MINI Electromagnetic Lock HOT ! | EM-350T | 180KG | Without door position detection output | |
| EL-H100 | 60KG | Hanging Electromagnetic Lock | EM-600T | 280KG | Without Signal Output | |
| Waterproof IP66 | EM-600TS | With Signal Output | ||||
| EL-W220 | 110KG | Waterproof IP66 | EM-800T | 350KG | Without Signal Output | |
| EL-W600 | 280KG | Waterproof IP66 2 Wires | EM-800TS | With Signal Output | ||
| Waterproof IP66 4 Wires NEW ! | EM-1200T | 500KG | DC12V or DC24V | |||
| Waterproof IP66 7 Wires NEW ! | Signal door Electromagnetic Lock | |||||
| EL-W1200 | 500KG | Waterproof IP66 4 Wires | EL-350 | 180KG | Without Signal Output | |
| Waterproof IP66 7 Wires NEW ! | EL-350ST | With Signal Output | ||||
| Double door Electromagnetic Lock | EL-600 | 280KG | Without indicator lights | |||
| EL-350D | 180KG | Without Signal Output | EL-600SD | Built in LED and door sensor HOT ! | ||
| EL-350DS | With LED (Red only) | EL-600SZ | LED, door sensor and Buzzer | |||
| EL-350DST | LED, door sensor and time delay | EL-600ST | LED, door sensor and time delay | |||
| EL-600D | 280KG | Without indicator lights | EL-800 | 350KG | Without indicator lights | |
| EL-600DS | Built in LED (Red only) HOT ! | EL-800SD | Built in LED and door sensor | |||
| EL-600DST | LED, door sensor and time delay | EL-800SZ | LED, door sensor and Buzzer | |||
| EL-800D | 350KG | Without indicator lights | EL-800ST | LED, door sensor and time delay | ||
| EL-800DS | Built in LED (Red only) | EL-1200 | 500KG | Without indicator lights | ||
| EL-800DST | LED, door sensor and time delay | EL-1200SD | Built in LED and door sensor | |||
| EL-1200D | 500KG | Without indicator lights | EL-1200SZ | LED, door sensor and Buzzer | ||
| EL-1200DS | Built in LED (Red only) | EL-1200ST | LED, door sensor and time delay | |||
| EL-1200DST | LED, door sensor and time delay | EL-350LS | 180KG | 5 wires Signal door; With LED and Signal Output | ||
| s4a-access.en.made-in-china.com | EL-600SA | 280KG | 9 wires Signal door; LED, door sensor and Buzzer | |||
Single door Electromagnetic lock 600lbs with LED
| NO | Item | Parameter |
| 1 | EL-600SD | LED,door sensor |
| 2 | EL-600ST | LED,door sensor,Time delay |
| 3 | EL-600SZ | LED,Door sensor.Buzzer |
| 4 | lock size | 250Lx48.5Wx25H(mm) |
| 5 | plate | 180Lx38Wx11H(mm) |
| 6 | Finishes for Shell | Anodized aluminum surface texture processing |
| 7 | Finishes for Magnetic | Zinc |
| 8 | Finishes for Armature | Zinc |
| 9 | Holding Force | 280kg (600Lbs) |
| 10 | Voltage | DC12V or DC24V (adjustable) |
| 11 | Current Draw | 12V/500mA 24V/250mA |
| 12 | Signal Output | Dry Contact, Max Rating of Contact Current 3A |
| 13 | Surface Temp | ≤+20°C |
| 14 | Operating Temp | below 55 to above 55 (14-131F) |
| 15 | Suitable Humidity | 0~90%(non-condensing) |
| 16 | Weight | 2kg |
| 17 | Standard Packing | 10pcs |
