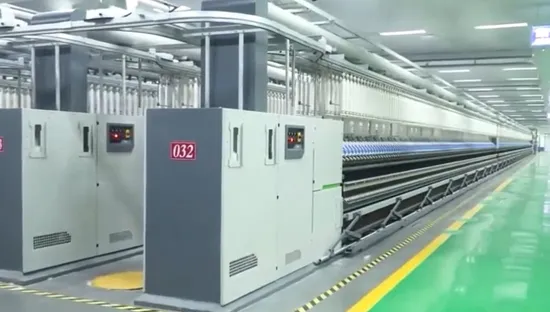

Hongda Rproduced High Effieciency Ring Spinning Frame Spinning Machine Smart Textile Machine

Product Description

JINGWEI Brand model JWF1580 serial over-prolongation intelligent Ring Spinning Frame smart textile machine
24h Online Customer Service

Product Description
Based on JWF1566 and JWF1582, JWF 1580 serial over-prolongation intelligentring spinning frame, a new generation basic machine which is leading thedevelopment trends with its entire performances reaching international advancedlevel,integrates quick-installing technology, quick-doffing technology, dual-suctioning technology at both headstock and tailstock, and intelligent spinningexpert system. lts energy consumption is reduced by 10% comparing to the currentring frames. JWF 1580 is an ideal choice for media- and high- end customers.
Our Advantages
Precise head transmition --High quality yarn base
New type of high precision frame--One-piece central
wallboard, new type of anti-deformation and high
precision rail, pin hole positioning, zero adjustment and
fast installation, high speed guarantee.
Jinwei quality products without mechanical wave
roller --High quality yarn guarantee
Oil bath lubrication, permanently stable tail shaft
structure (patent technology)-Durable, least maintenance costs
New tray conveying mechanism(patent
technology)-Auto-doffng process effciently
New gas holder internal and external cycloidal
units-The core of automatic doffng
Rapid doffng technology -Effectively improve the
operation effciency and output
Automatic bobbin readying unit (patent technology)-
Labor saving and effort saving guarantee
Three roller compact spinning system/four roller
compact spinning system
Pin hole positioning technology--Precise
installation, shorten the installation time

EXPANSION FUNCTIONS
Roving circulatory system/bunchy
Individual spindle broken-end detectionRoving feeding stop system
Yarn gripping technology and electronic brake system
Soft and smooth ring spinning unit
Electronic drafting system
Product Parameters
★ Use the spindle and roller separation transmision technology, guarantee synchronous transmision of spindle and roller withthe encoder tracking technology to effectively increase the yarn reserving rate.
★ Using high-precision servo system to control roller transmission, and guarantee the roller transmission synchronicity withpulse following technology,
★ Simple and convenient textile process adjustment
★ Display screen adopts fat and graphic display technology, simplifed operation, and enhanced efficiency.
★ No modifcation required to realize the function of spinning bunchy yarn (embedded software, optional)
★ Individual spindle broken-end detection (optional) to reduce the labor intensity of machinists.
Installation Instructions
Details Showing

Spindle gauge	70
Spindle number	from 1248-1824,expanded by unit 36 spindles each
Roller	27X27X27or27X30X27 box length 6spindles
Lift	160,180(with aluminum spindle)
Ring diameter mm	38,40,42,45(PG type)
Suitable for fiber length	less than 40mm,40-51mm,51-60mm
Suitable for yarn density Tex(Ne)	36.4-4.86(16-120)
Suitable for Twist ( turns per meter )	230-3000 ( Wharfdiameter 19)

Twist direetion	Z with single tension disc, Z and S with dual tension disc
Draft	total draft 10-60(standard), total draft 10-80 (optional)
Spindle speed r/min	12000-25000(mechanicalspeed with inverter)
Spindle driving	driving by disc
Drafting type	3-line roller,cradle apron(short) plus bottom apron (long), top weighting arm
Lifting type of ring plate	by electronic lifting
Twisting type	by electronic twisting
Doffing type	auto-doffing

Bobbin lifting rate when doffing	>99.5%
Tube inserting rate	100%
None-endbreak rate when auto-doffing finished	>97% ( for medium count yarn )
Auto-doffing duration	3 minutes
