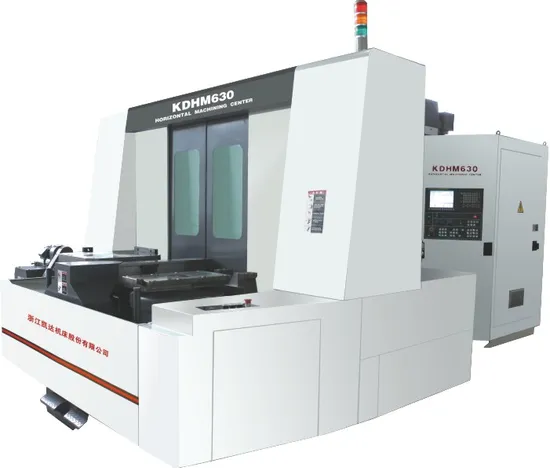

Milling Machine Metal-Cutting Tools CNC Horizontal Machining Center
| US$3,000.00-50,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
KDHM630
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
+-0.03mm
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Table Size
630*630mm
Spindle Speed
50-5000rpm
Max Load Table
1200kg
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8457101000
Production Capacity
90 Sets/ Year
Product Description
PRODUCT SPECIFICATIONS
| MODELS | KDHM630 |
| TRAVEL | |
| X axis | 950mm |
| Y axis | 820mm |
| Z axis | 750mm |
| Spindle end to table | 200-950mm |
| Spindle center to table | 30-850mm |
| TABLE | |
| Tablesize | 630x630mm |
| Max.table loading | 1200kg |
| Min.Increment | 1º(optional 0.001º) |
| Table surface configuration | 24-M16 screw thread |
| Number of table | 2 |
| APC change time | 16s |
| SPINDLE | |
| Spindle speed | 50-5000rpm |
| Number of spindle speed change ranges | 2 ranges |
| Spindle inner taper | 7/24; BT50 |
| Spindle bearing inner diameter | Ф100mm |
| Spindle motor | 18.5/22kw |
| FEED | |
| X/Y/Z fast feed | 24/ 24/ 24m/min |
| Cutting feed rate | 1-12m/min |
| X/Y/Z motor torque | 30/ 40/ 30Nm |
| Positioning accuracy | ± 5μm |
| Repeatability position accuracy | ± 2.5μm |
| ATC | |
| Type of tool shank | BT50 |
| Tool number | 60 |
| Max. tool diameter (Without adjacent tool) | Ф270mm |
| Max. tool diameter (With adjacent tool) | Ф115mm |
| Max tool length | 410mm |
| Max tool weight | 25kg |
| Tool change time (cut to cut) | 6s |
| OTHERS | |
| Cooling motor power | 0.37kw x 2 |
| Hydraulic pump motor | 2.2kw |
| Compressed air supplier pressure | 0.6~0.8Mpa |
| Coolant tank capacity | 400L |
| Floor space required | 3300x4800mm |
| Net weight | 18500kg |
